Hikvision Wall Switch with 868MHz Two-Way Wireless communication
Images are for illustrative purposes and actual product may differ.
HK-302401745
Alarm Communication
Hikvision
HK-302401745 information and overview
Hikvision Wall Switch with 868MHz Two-Way Wireless communication, DS-PM1-O1H-WE, AES-128 Encryption, Up to 1600m Wireless range, One NO/NC Relay Output supporting AC 100-240V up to 13A, LED status indicators, Wall or 86 Box installation
Availability will be confirmed by email.
Great value! This product is available for only R 628.
Specifications & more information about HK-302401745, Alarm Communication manufactured by Hikvision
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Overview Summary
The Hikvision DS-PM1-O1H-WE Wall Switch provides convenient wireless control for automation systems, with two-way 868MHz communication, secure AES-128 encryption and clear LED status indicators. Its compact design supports discreet installation on a wall or inside an 86 box.
With a 100-240V AC power supply and a relay output supporting up to 13A, it is suited to a range of automated switching applications. Buy now or shop now for a compact Hikvision wall switch for your automation setup.

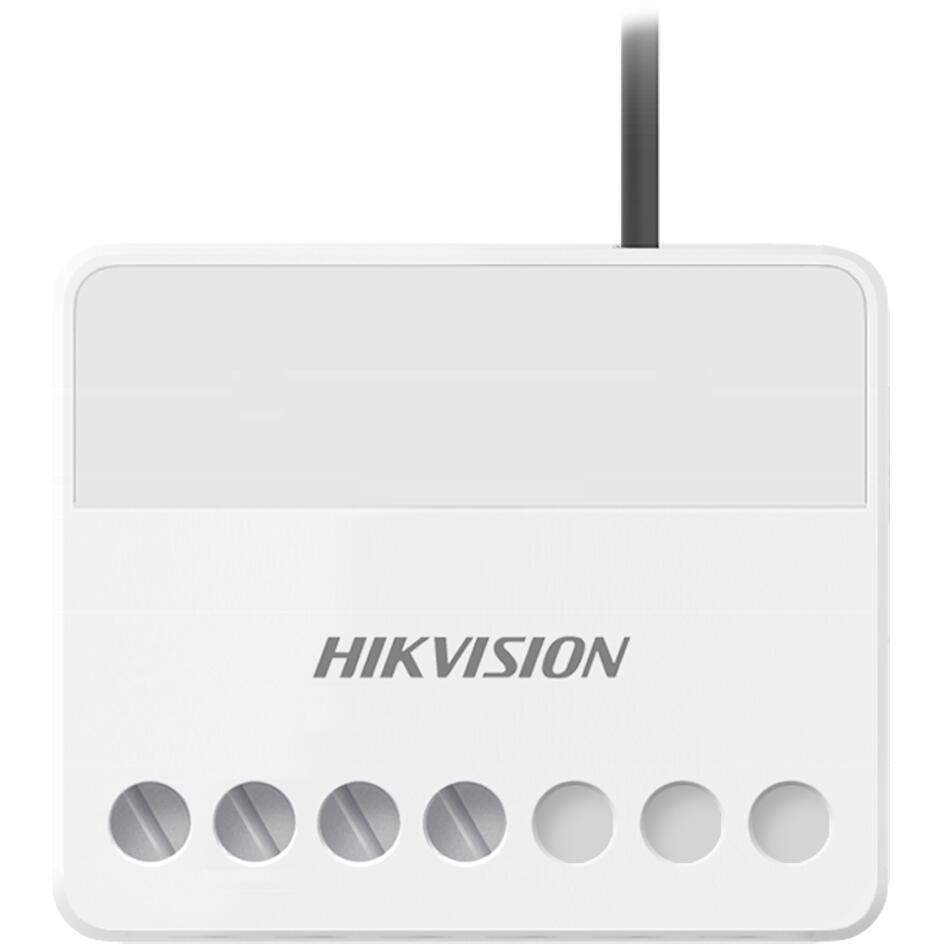

Hikvision DS-PM1-O1H-WE Wall Switch The Hikvision DS-PM1-O1H-WE is a compact wireless wall switch designed for relay control and automation applications. It uses 868MHz two-way wireless communication with AES-128 encryption, providing wireless communication over a range of up to 1600m. The compact housing can be installed on a wall or inside an 86 box, making it suitable for discreet installation.
Description
The Hikvision DS-PM1-O1H-WE Wall Switch provides convenient wireless relay control with support for automation scenarios based on alarms, manual operation, faults and schedules. The device can be operated through the app, keyfob or keypad, while its LED indicators provide clear status information for registration, signal, power and relay operation. Its compact 38 x 25 x 18mm housing allows it to fit into discreet installation locations.
The DS-PM1-O1H-WE supports a single relay output with NO/NC configuration and is rated for AC 100-240V at up to 13A. Two-way 868MHz wireless communication and AES-128 encryption provide secure communication, while the 1600m wireless transmission distance supports flexible installation.
Features
Key Details
Hikvision DS-PM1-O1H-WE Wall Switch
Part Number / SKU: HK-302401745
868MHz two-way wireless communication
Wireless transmission distance up to 1600m
AES-128 wireless security
One relay output, NO/NC
AC 100-240V, maximum 13A relay output
LED indicators for registration, signal, power and relay status
Wall mounting or installation inside an 86 box
Dimensions: 38 x 25 x 18mm
Weight: 31.5g
Wireless Control and Automation The wall switch supports two-way 868MHz communication using 2GFSK modulation. It can be integrated into automation scenarios and configured to respond to different events, including alarms, operations, faults and schedules.
The relay can also be controlled through the app, keyfob or keypad, allowing one-button switching for connected equipment.
Status Monitoring Three LED indicators provide information about the device. The LEDs indicate registration and signal status, power status and relay status, making it easier to monitor the wall switch during operation.
Relay Output The DS-PM1-O1H-WE includes one relay output with NO/NC configuration and supports AC 100-240V loads up to a maximum of 13A.
Installation and Design With a compact plastic housing measuring 38 x 25 x 18mm and weighing 31.5g, the Hikvision wall switch is designed for discreet installation. It can be mounted directly on a wall or installed inside an 86 box.
