Features:

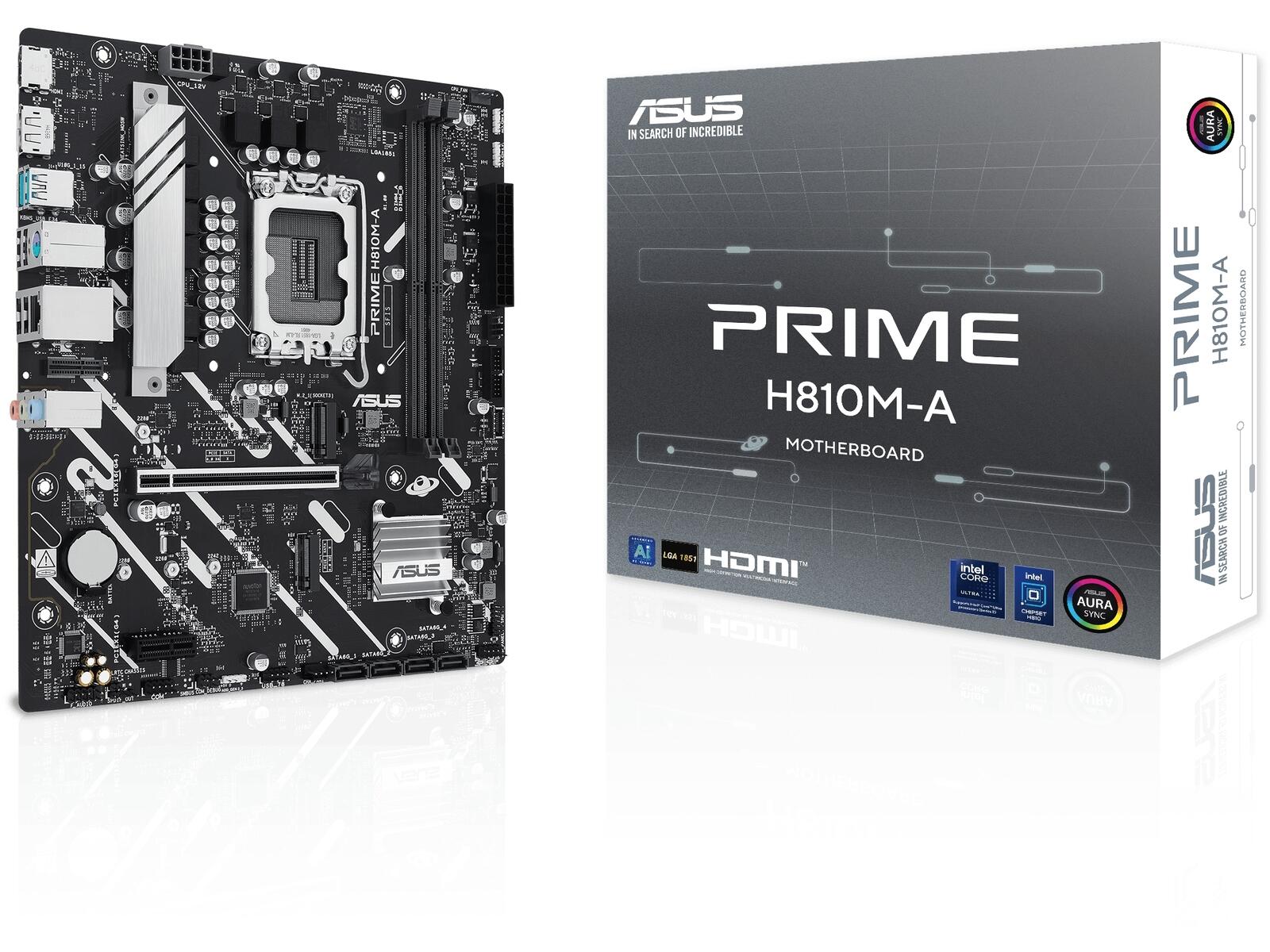

PRIME H810M-A
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

6+1+1+1
phase digital power design

DIMM Fit / DIMM Fit Pro
for enhanced DDR5 performance

PCIe 4.0 slots
for graphics card

USB 10Gbps Type-A
for rapid data transmission

USB 5Gbps Type-C
for rapid data transmission

PCIe 4.0 M.2
for storage

EZ PC DIY
for easier build customization

1Gb Ethernet
for faster data transfers

Aura Sync
for full RGB lighting control

Performance - Digital Power Design
Stable power is crucial for maximizing the performance of Intel Core Ultra Processors (Series 2).The PRIME H810M-A features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel processors plus steady performance for day-to-day use.

Power Saving
Optimize power with CPU, lighting, and fan settings.

The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Digi+ VRM control
Real-time voltage control.

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.

DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

Two M.2 slots (up to 64Gbps)
PRIME H810M-A offers a total of two M.2 slots, including one that supports data-transfer speeds of up to

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	H810M-A
Model	PRIME H810M-A
CPU	Support Intel Core Ultra Processors (Series 2) , LGA1851
	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
	** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H810 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5
	Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
	Dual channel memory architecture
	DIMM Fit
	Supports Intel Extreme Memory Profile (XMP) memory module
	ASUS Enhanced Memory Profile II (AEMP II)
	Adjustments will be made based on the specifications of mass-produced memory products available on the market.
	** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort
	1 x HDMI port
	* Graphics specifications may vary between CPU types.
	** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
	* Supports 4K@60Hz as specified in HDMI 2.1.
	** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel Core Ultra Processors (Series 2)
	1 x PCIe 4.0 x16 slot
	Intel H810 Chipset
	1 x PCIe 4.0 x1 slot
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
	Intel H810 Chipset
	M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
	4 x SATA 6Gb/s ports
Ethernet	1 x Intel 1Gb Ethernet port
	ASUS LANGuard
	*With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wireless & Bluetooth	"V-M.2 slot only (Key E, CNVi & PCIe)
	* Wi-Fi module is sold separately."
USB	Rear USB (Total 6 ports)
	2 x USB 10Gbps ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	Front USB (Total 5 ports)
	1 x USB 5Gbps connector (supports USB Type-C )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional USB 2.0 ports
	* USB Type-C power delivery output: max. 5V/3A
	** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- Supports up to 24-Bit/192 kHz playback
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A)
	4 x USB 2.0 ports (4 x Type-A)
	1 x DisplayPort
	1 x HDMI port
	1 x Vertical M.2 slot (Key E)
	1 x Intel 1Gb Ethernet port
	3 x Audio jacks
	1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	2 x 4-pin Chassis Fan headers
	Power Related
	1 x 24-pin Main Power connector
	1 x 8-pin +12V CPU Power connector
	Storage Related
	2 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 5Gbps connector (supports USB Type-C )
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	1 x USB 2.0 header supports 2 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen2 headers
	1 x Clear CMOS header
	1 x COM Port header
	1 x Front Panel Audio header (F_AUDIO)
	1 x S/PDIF Out header
	1 x SPI TPM header (14-1 pin)
	1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III
	- DIGI+ VRM
	- LANGuard
	- Overvoltage protection
	- SafeSlot Core+
	- Stainless-steel back I/O
	ASUS Q-Design
	- Q-DIMM
	- Q-Dashboard
	- Q-LED Core
	- Q-Slot
	ASUS Thermal Solution
	- VRM heatsink design
	Aura Sync
	- Addressable Gen 2 headers
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 2+
	- Power Saving
	ASUS DriverHub
	ASUS CPU-Z
	Norton 360 Deluxe (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash
	- ASUS UEFI BIOS EZ Mode
	- ASUS MyHotkey
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	2 x SATA 6Gb/s cables
	Miscellaneous
	1 x I/O shield
	1 x Screw package for M.2 SSD
	Documentation
	1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor	micro-ATX Form Factor
	9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
