H610M H V2 D5

Overview

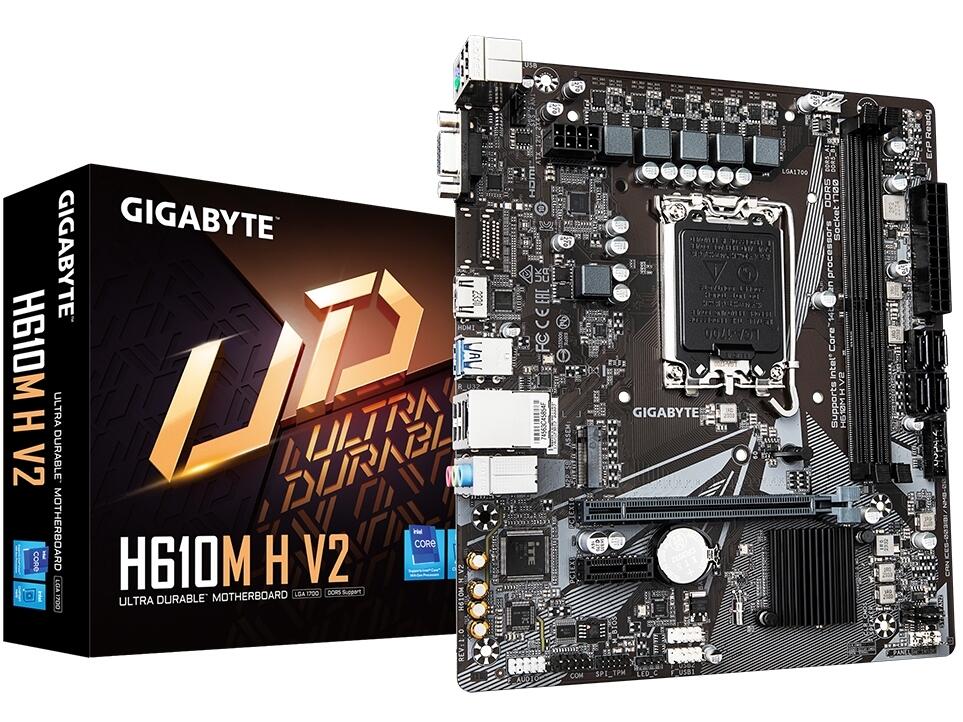

Gigabyte Intel H610 v2 DDR5 Motherboard for Intel 12th, 13th, and 14th Gen Processors
Discover the powerful and reliable Gigabyte Intel H610 v2 DDR5 motherboard, designed for Intel 12th, 13th, and 14th generation processors. Built on the Intel H610 Express chipset, this compact mATX motherboard supports the latest technologies and offers a range of features that boost performance and stability for both everyday computing and advanced tasks.

Key Specifications of Gigabyte Intel H610 v2 DDR5 Motherboard

• Supports Intel 12th, 13th, and 14th Gen Socket LGA 1700 CPUs
• 2 DDR5 DIMM memory slots supporting dual-channel non-ECC unbuffered DDR5
• One PCI Express x16 slot with PCIe 4.0 support running at x16
• One PCI Express x1 slot with PCIe 3.0 support running at x1
• M.2 connector supporting PCIe 3.0 x4 for high-speed NVMe SSDs
• Four SATA 6Gb/s ports for additional storage options
• USB 3.2 Gen 1 and USB 2.0/1.1 ports for versatile connectivity
• Video outputs include 1x D-Sub and 1x HDMI port
• High definition audio with 3 audio jacks and noise guard technology
• Networking includes Gigabit Ethernet (RJ-45 ) with bandwidth management
• PS/2 port for keyboard and mouse compatibility
• Smart Fan 6 with multiple temperature sensors and hybrid fan headers

Features

Performance and Power Efficiency with Intel H610 Chipset
Equipped with the Intel H610 chipset, this motherboard delivers a stable and efficient platform with a 4+1+1 hybrid digital VRM design. This power delivery system enhances CPU stability under heavy loads and high-frequency operation, ensuring reliable performance for demanding applications.

Power Delivery

• 4+1+1 phase hybrid power design with low RDS(on) MOSFETs for cleaner power
• High-quality solid capacitors that improve transient response and minimize voltage oscillations
• 8-pin solid pin CPU power connector for stable and durable power supply

Advanced DDR5 Memory Support with Xtreme Memory Technology
Experience faster and more responsive computing with DDR5 memory support. The motherboard's XMP 3.0 compatibility and unlocked native DDR5 voltage provide up to 50% more bandwidth than previous generations, greatly enhancing overall system performance. The exclusive DDR5 tuning capabilities allow enthusiasts to safely push memory speeds higher through an intuitive user interface.

Enhanced Network Performance with GbE LAN
The integrated Gigabit Ethernet controller includes bandwidth management software, designed to optimize network traffic and reduce latency. This feature helps maintain low ping times and improves responsiveness in crowded LAN environments, making it ideal for gaming and online work.

Durable and Reliable Solid Pin Power Connectors
Solid pin power connectors provide a larger contact area for electricity flow, increasing power stability and heat tolerance. These connectors are engineered to be ultra-durable, ensuring a longer lifespan and reliable power delivery even during intense CPU workloads.

User-Friendly BIOS Interface for Easy Setup
The revamped BIOS offers a clean, intuitive graphical user interface (GUI) that simplifies system configuration. Whether you're building a new PC or upgrading your setup, the enhanced BIOS makes it easier to optimize settings and fine-tune performance with confidence.

The Gigabyte Intel H610 v2 DDR5 motherboard is a versatile choice for users looking to build a powerful yet compact system compatible with Intel's latest processors. Featuring robust power delivery, cutting-edge DDR5 memory support, advanced connectivity options, and a user-friendly BIOS, this motherboard delivers the performance and stability needed for both everyday use and demanding workloads.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	H610M H V2 D5
CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core , Pentium Gold and Celeron Processors
	L3 cache varies with CPU
Chipset	Intel H610 Express Chipset
Memory	14th and 13th Generation Intel Core i9/i7 Processors:
	- Support for DDR5 5600 / 5200 / 4800 / 4400 MT / s memory modules
	13th Generation Intel Core i5/i3 and 12th Generation Intel Core , Pentium Gold and Celeron Processors:
	- Support for DDR5 4800/4400 MT/s memory modules
	2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
	- 4 x SATA 6Gb/s connectors
USB	Chipset:
	- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	- 4 x USB 2.0/1.1 ports on the back panel
	Chipset+USB 2.0 Hub:
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x RGB LED strip header
	1 x front panel header
	1 x front panel audio header
	1 x speaker header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x Clear CMOS jumper
	1 x chassis intrusion header
Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x D-Sub port
	1 x HDMI port
	2 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	- @BIOS
	- EasyTune
	- Smart Backup
	- System Information Viewer
	Support for Q-Flash
Bundled Software	Norton Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor , 22.3cm x 19.6cm
