Overview:

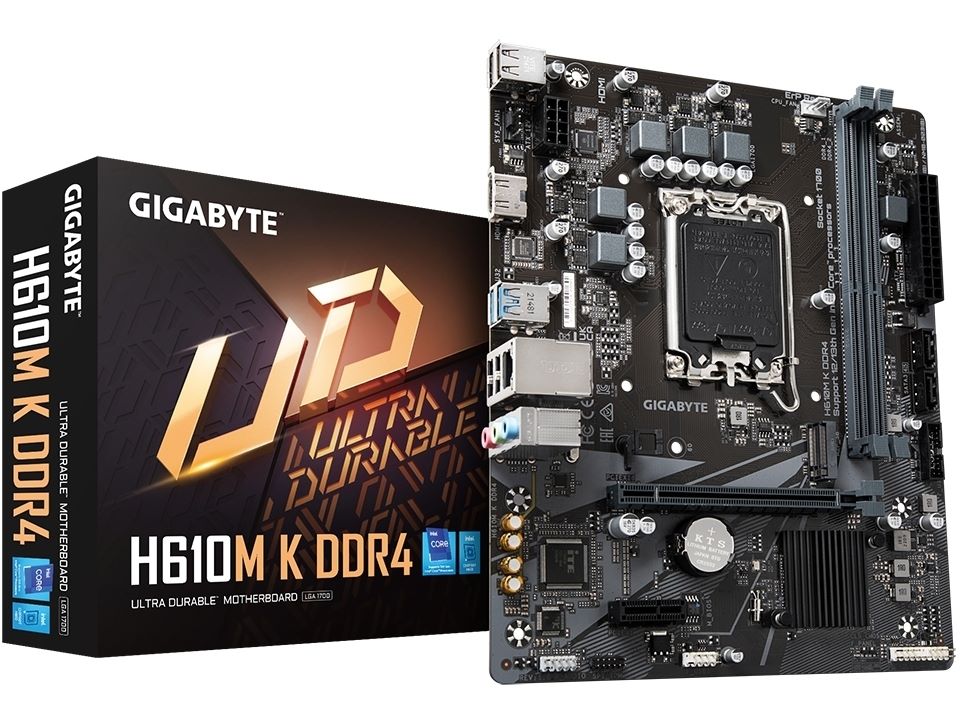

H610M K DDR4 (rev. 1.0)
 PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

• Supports IntelCore 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• GbE LAN with Bandwidth Management
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• GIGABYTE APP Center, Simple and Easy Use
• Anti-Sulfur Resistors Design

Features:

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Solid Pin Power Connectors
H610 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

1. Larger contact area for electricity
2. More metal quantity to sustain higher power and generated heat
3. Ultra durable and longer lifespan

BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	MB-GH610MKD4
CPU	1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
	2. L3 cache varies with CPU
Chipset	1. Intel H610 Express Chipset
Memory	1. Support for DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT / s memory modules
	2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.
	(Graphics specifications may vary depending on CPU support.)
Audio	1. Realtek Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	1. Realtek GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
	2. 2 x SATA 6Gb/s connectors
USB	Chipset:
	1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 1 x system fan header
	5. 1 x M.2 Socket 3 connector
	6. 2 x SATA 6Gb/s connectors
	7. 1 x front panel header
	8. 1 x front panel audio header
	9. 1 x USB 3.2 Gen 1 header
	10. 1 x USB 2.0/1.1 header
	11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	12. 1 x Clear CMOS jumper
Back Panel Connectors	1. 1 x HDMI port
	2. 2 x USB 3.2 Gen 1 ports
	3. 4 x USB 2.0/1.1 ports
	4. 1 x RJ-45 port
	5. 3 x audio jacks
I/O Controller	1. iTE I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Fan fail warning
	6. Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1. 1 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Smart Backup
	System Information Viewer
	2. Support for Q-Flash
	3. Support for Xpress Install
Bundled Software	1. Norton Internet Security (OEM version)
	2. LAN bandwidth management software
Operating System	1. Support for Windows 11 64-bit
	2. Support for Windows 10 64-bit
Form Factor	1. Micro ATX Form Factor, 22.6cm x 18.5cm
