Overview:

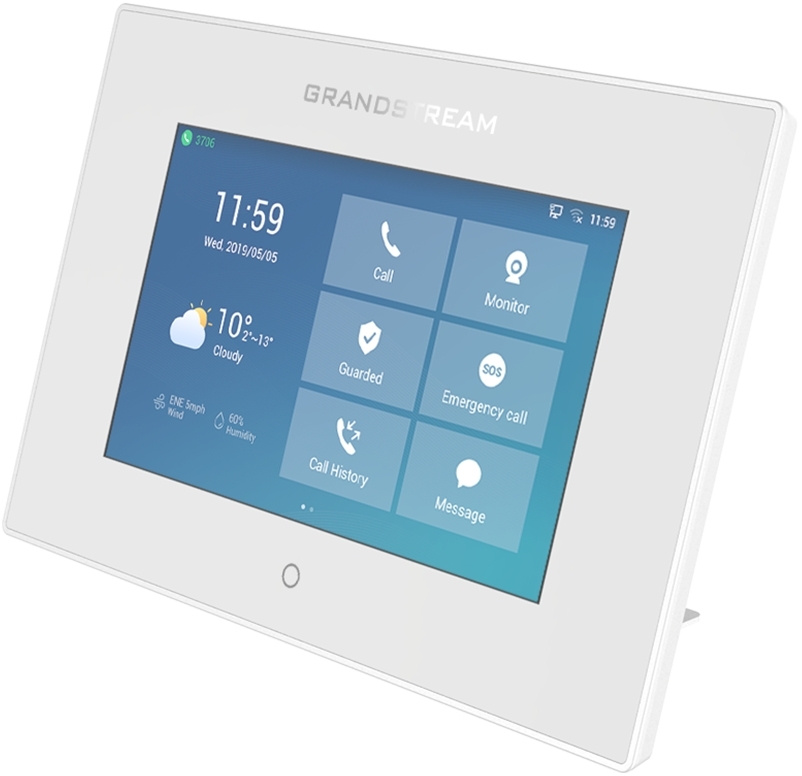

The GSC3570 is a powerful intercom and facility control station designed to provide businesses with a dedicated device to manage facility communications, door access, physical security and more. This device can be complete solution for easy door control, intercom and paging communication, security camera management and facility-wide UC integration.
Features:
The GSC3570 is a powerful intercom and facility control station designed to provide businesses with a dedicated device to manage facility communications, door access, physical security and more. This device can be wall-mounted or placed on a desktop as a solution for easy door control, intercom and paging communication, security camera management and facility-wide UC integration. The GSC3570 features a 7-inch touch screen LCD and full duplex 2-way HD audio. It offers a flexible network connectivity through 100Mbps network port with PoE or integrated dual-band Wi-Fi support. This SIP intercom and facility control station is designed to seamlessly integrate with Grandstreams entire range of products, including the GDS series of Door Access devices, GSC series intercom and paging devices, security cameras and more. The GSC3570 is ideal for any deployment scenario where facility access, communications and security need to be centrally monitored and controlled.
7 inch 1024x600 capacitive touch screen
Dual-band 802.11 ac Wi-Fi
4x alarm input ports and 1x alarm output port for customized deployments
Full duplex 2-way HD audio with advanced echo cancellation
Secure Boot & Data, TLS and SRTP security encryption technology to protect calls and accounts
Supports PoE to provide a network connection to the device
7'' 1024x600 capacitive touch screen TFT LCD with Home key
Wi-Fi
Yes, dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
Alarm Input
4 Channels, including 1 Optocoupler, Vin < 15V (IN+) and 3 Dry Contact (IN1-3), for low voltage devices such as a door sensor, other switch contact, button etc.
Alarm Output
1 Channel/Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for high voltage devices such as, an electric lock or light switch
LED Indicator
Yes, Dual color LED for event indication
Micro SD/TF Supported
Yes, up to 256G
Voice Codecs and Capabilities
G.711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS
Video Decoders and Capabilities
H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps
Secure Boot & Data, Double images for high reliability, random administrator password, user and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1x media access control
Multi-language
English, Chinese, German, Spanish, French, Italy, Portuguese, and Russian
Upgrade/Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using AES encrypted XML configuration file, manual upload
Power & Green Energy Efficiency
2-pin DC input: 12VDC/1A
Integrated PoE : IEEE 802.3af Class 3, power consumption <10W
Micro USB input: 5VDC/2A
Temperature and Humidity
Operation: -10degreesC to 50degreesC, Storage: -20degreesC to 60degreesC
Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 224.5 x 149.5 x 36.5mm, Unit Weight: 517g
Entire Package Dimension: 265 x 180 x 54mm, Entire Package Weight: 880g
Package Contents
GSC3570, quick installation guide, wall mount bracket, and desktop stand (optional)
