Overview

A compact 720p analog security camera designed for dependable indoor and outdoor surveillance, the Hikvision AE-VC143T-ITS combines infrared night vision, HD coaxial video output and a built-in microphone in a cylindrical camera design. Its 2.1mm lens provides a wide viewing perspective, making it suitable for monitoring entrances, corridors, vehicles, retail areas and other spaces where clear coverage is required.

Description

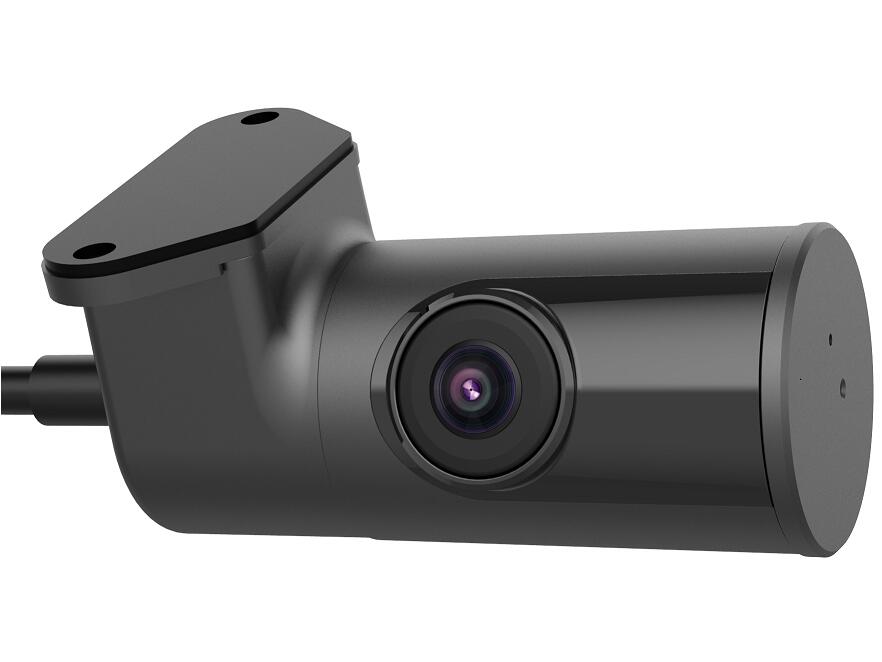

The Hikvision AE-VC143T-ITS is a 720p infrared array cylindrical analog camera with a 1/2.9-inch CMOS image sensor and 2.1mm lens. It delivers 720p video at up to 25 fps and uses progressive scan technology to help reduce motion image aliasing, resulting in clearer footage when subjects are moving.

The camera supports HD coaxial output at 720p, allowing it to be integrated with compatible Hikvision DVR and HD analog surveillance systems. A built-in microphone provides audio capture where supported by the connected recording equipment, adding useful context to recorded surveillance footage.

For low-light environments, the camera offers infrared illumination and can operate down to 0 Lux when IR is active. Automatic day and night switching allows the camera to adapt between daytime and nighttime conditions without requiring manual adjustment.

Features

Key Camera Details

• Model: AE-VC143T-ITS
• Part Number / SKU: AE-VC143T-ITS(2.1mm)(2m)(BMWhead)
• Resolution: 720p
• Image sensor: 1/2.9-inch CMOS
• Lens: 2.1mm
• Video frame rate: 720p at 25 fps
• Video output: TVI
• Audio: Built-in microphone
• Minimum illumination: 0.1 Lux at F1.2 with AGC on
• Night illumination: 0 Lux with infrared
• Signal-to-noise ratio: 42 dB
• Camera type: Infrared array cylindrical analog camera

Reliable 720p Surveillance
The progressive scan CMOS sensor is designed to reduce motion-related image aliasing, helping maintain a clearer picture when people, vehicles or other objects move through the camera's field of view. The 720p resolution provides a practical balance between image clarity, storage requirements and compatibility with HD analog surveillance systems.

Infrared Night Vision
When lighting levels fall, the camera can automatically switch to night mode and use infrared illumination for surveillance in very low-light or completely dark conditions. This makes the AE-VC143T-ITS suitable for applications that require continuous monitoring throughout the day and night.

Automatic Image Adjustment
Automatic electronic shutter control allows the camera to adapt to different lighting conditions, while automatic gain control helps maintain usable image quality as available light changes. These automatic adjustments reduce the need for constant manual configuration.

HD Coaxial Video and Audio
The Hikvision AE-VC143T-ITS supports HD coaxial video output at 720p, making it suitable for compatible TVI-based CCTV installations. The integrated microphone can also provide audio alongside the video signal when the connected surveillance system supports audio transmission and recording.

Durable Cylindrical Camera Design
A shock-proof design helps the camera withstand the demands of everyday surveillance installations. Its cylindrical form is well suited to a range of mounting positions and security applications.

Suitable Applications
This 720p Hikvision analog camera can be used for residential security, commercial CCTV, entrances and access points, corridors, retail environments, offices, warehouses and general-purpose surveillance installations. The 2.1mm lens is particularly useful where a wider viewing area is preferred.

The Hikvision AE-VC143T-ITS(2.1mm)(2m)(BMWhead) offers a straightforward solution for users looking to add 720p HD analog video, infrared night surveillance and audio capture to a compatible CCTV system.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AE-VC143T-ITS(2.1mm)(2m)(BMWhead)
Camera
Shutter Speed	1/25 s to 1 / 30,000 s
P/N	NA
Wide Dynamic Range	NA
Day & Night	Electronic
Lens
Fixed Aperture	F2.0
Lens Mount	M12
Video
Frame Rate	720P@25 fps
SNR	42 dB
Interface
Video Output	TVI
Built-in Microphone	Yes
Built-in Speaker	NO
Audio	Yes
Interface Style	1 Vpp Composite Output (aviation plug or BM4F plug )
	aviation plug : 1: video, 2: Audio, 3: power, 4: ground
	BM 4F plug: 1:power ,2 : ground , 3 : Video , 4 : Audio
Supplement Light Unit
Power Supply	9 to 16 V DC
Power Consumption	Max. 2 W
General
Camera Material	Plastic
Camera Dimension	61 mm x 39 mm x 33mm
Startup and Operating Conditions	-40 degreesC to 75 degreesC (-40 degreesF to 167 degreesF), 90%
