Overview:

CAC-2504 - The Club 3D CAC-2504 is an Active HDMI™ signal converter. The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to an HDMI™ 2.0 enabled UHD Monitor, Television or Projector. The HDMI™ adapter is compact and highly portable. Powered by the USB-C port, the adapter requires no external power and is ideal for use with notebooks and Ultrabooks.

Features:

Supports up to 4K UHD Resolution at 60Hz.
The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter supports UHD resolutions of up to 4K @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled device on a (Ultra) high-resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video.

Compatible with all Operating Systems
The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter supports all USB 3.1 Type-C devices with DisplayPort™ ALT mode and operating systems, including Apple OS X, Windows 8.1 and 10 and Google Chrome OS.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CAC-2504-CLUB3D
Model	Product Name: USB 3.1 Type C to HDMI 2.0 UHD 4K 60Hz Active Adapter
	Product Series: Adapter
	Itemcode: CAC-2504
	EAN code: 8719214471026
	UPC code: 841615101214
Features	Reversible USB Type-C connector
	Compliant to VESA DisplayPort 1.2 Alt Mode Standard
	Compliant to HDMI 2.0 for up to 18 Gbps data rate
	Supports full link training and no link training
	Supports 3D Video formats up to 1080p @ 120Hz
	Supports resolutions up to 3840 x 2160p @ 60Hz
	Repeater for HDCP 1.3 and HDCP 2.2
	Powered by USB Port (no external power needed)
OS Support	Windows 8.1, 10
	Apple OS X

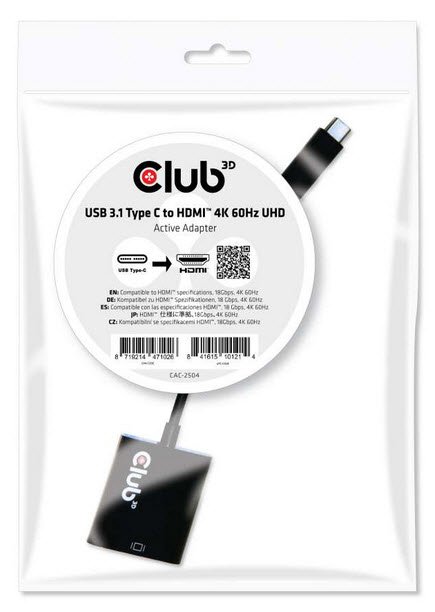

In the box	Club 3D CAC-2504 USB 3.1 Type C to HDMI 2.0 UHD 4K 60Hz
Input	USB type C male
Output	HDMI 2.0 female
Other info	Poly Bag size: 215 x 150 x 18 mm.
	Poly Bag Weight: 10 gr.
	Product Weight: 21 gr.
	Total Weight: 31 gr.
	Adapter size: 180 x 37 x 15 mm.
	Meets ROHS, FCC, and CE EMI requirements
