iDS-2CD7A86G0-IZHS(2.8-12mm)

Overview

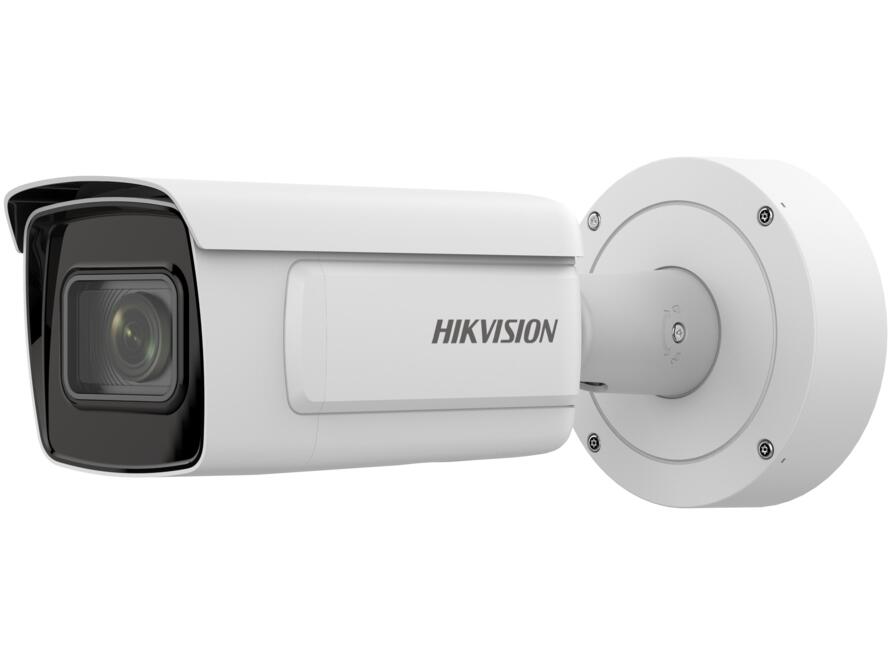

Hikvision 8MP 4K DeepinView Moto Varifocal Bullet Camera
Upgrade your surveillance system with the Hikvision 8MP Bullet Camera, featuring advanced 4K DeepinView technology and a versatile varifocal lens. Designed for high-resolution monitoring, this camera ensures sharp imaging, reliable performance, and enhanced security in any environment.

Features

Key Features of the Hikvision 8MP Bullet Camera

• High-resolution 8MP sensor delivering crisp 3840x2160 4K video
• Varifocal lens ranging from 2.8 to 12 mm for flexible viewing angles
• P-iris lens for precise control of light and depth of field
• Powerful 50-meter supplemental light for low-light conditions
• H.265+, H.265, H.264+, and H.264 video compression to save bandwidth
• Five independent video streams for multiple monitoring needs
• Four fixed regions per stream for targeted surveillance
• Mono sound capture for basic audio monitoring
• Supports up to 20 simultaneous live view channels
• 120 dB wide dynamic range (WDR) for clear imaging in backlit scenes
• Additional imaging enhancements: BLC, HLC, 3D DNR, and defog functionality
• 1 VP-P composite video output and 1x RJ45 Gigabit self-adaptive Ethernet port
• Built-in memory card slot supporting up to 1 TB storage
• Alarm integration with 2 inputs and 2 outputs
• Advanced motion detection with human and vehicle classification

General Overview

The Hikvision 4K DeepinView Moto Varifocal Bullet Camera is engineered to deliver superior image quality even in challenging conditions. Its combination of DarkFighter low-light technology and 120 dB true WDR ensures clear visuals in both bright and dim environments. The camera is built for durability, offering water and dust resistance (IP67 ) and vandal-proof protection (IK10).

Additional benefits include efficient H.265+ compression, reducing storage and bandwidth requirements, and multiple video streams for versatile surveillance setups.

Available Models

• iDS-2CD7A86G0-IZHSY (2.8-12mm)
• iDS-2CD7A86G0-IZHSY (8-32mm)

This Hikvision bullet camera is an ideal solution for businesses and residential properties looking for reliable, high-quality 4K security monitoring.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	iDS-2CD7A86G0-IZHS(2.8-12mm)
Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3840 x 2160
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON)
	B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	1 s to 1 / 100,000 s
Day & Night	IR cut filter
	Blue glass module to reduce ghost phenomenon
Lens
Aperture	2.8 to 12 mm: F1.2 to F2.5
	8 to 32 mm: F1.7 to F1.73
Iris Type	P-iris
Focal Length & FOV	2.8 to 12 mm, horizontal FOV: 112.3degrees to 41.2degrees, vertical FOV: 58degrees to 23.1degrees, diagonal FOV: 137.3degrees to 47.3degrees
	8 to 32 mm, horizontal FOV: 41.8degrees to 14.9degrees, vertical FOV: 22.92degrees to 8.48degrees, diagonal FOV: 48.7degrees to 17degrees
Focus	Auto,Semi-auto,Manual
DORI
DORI	Wide:
	2.8 to 12 mm: D (Detect): 87 m, O (Observe): 34.5 m, R (Recognize): 17.4 m, I (Identify): 8.7 m
	8 to 32 mm: D (Detect): 218 m, O (Observe): 86.5 m, R (Recognize): 43.6 m, I (Identify): 21.8 m
	Tele:
	2.8 to 12 mm: D (Detect): 216 m, O (Observe): 85.7 m, R (Recognize): 43.2 m, I (Identify): 21.6 m
	8 to 32 mm: D (Detect): 580 m, O (Observe): 230.2 m, R (Recognize): 116 m, I (Identify): 58 m
Illuminator
Supplement Light Type	IR
Supplement Light Range	2.8 to 12 mm: 50 m
	8 to 32 mm: 100 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
AI Open Platform
Model Specification	Up to 4 models
	Model type: detection model, classification model, mixed model (detection model and classification model)
Video
Main Stream	50 Hz: 25 fps (3840 x 2160, 3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720)
	60 Hz: 30 fps (3840 x 2160, 3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub-Stream	50 Hz: 25 fps (704 x 576, 640 x 480)
	60 Hz: 30 fps (704 x 480, 640 x 480)
Third Stream	50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)
	60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)
Fourth Stream	50 Hz: 25 fps (704 x 576, 640 x 480)
	60 Hz: 30 fps (704 x 480, 640 x 480)
Fifth Stream	50 Hz: 25 fps (704 x 576, 640 x 480)
	60 Hz: 30 fps (704 x 480, 640 x 480)
Video Compression	Main stream: H.265+/H.265/H.264+/H.264
	Sub-stream: H.265/H.264/MJPEG
	Third stream: H.265/H.264
	Fourth stream: H.265/H.264/MJPEG
	Fifth stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile,Main Profile,High Profile
H.265 Type	Main Profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	4 fixed regions for each stream
Target Cropping	Yes
Bit Rate Control	CBR,VBR
Audio
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Type	Mono sound
Environment Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View	Up to 20 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host	Up to 32 users
	3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
	Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client	iVMS-4200,Hik-Connect,Hik-Central
Web Browser	Plug-in required live view: IE 10, IE 11
	Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
	Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch	Yes
Image Settings	Saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	120 dB
Image Enhancement	BLC,HLC,3D DNR,Defog
SNR	≥ 52 dB
Privacy Mask	8 programmable polygon privacy masks
Image Stabilization	EIS
Picture Overlay	LOGO picture can be overlaid on video with 128 x 128 24 bit bmp format.
Interface
Video Output	1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio	With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm	2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485	With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key	Yes
Power Output	With -Y: 12 VDC, max. 100 mA
Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),video quality diagnosis,vibration detection
Smart Event	scene change detection,audio exception detection,defocus detection
Linkage	Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Multi-target-type Detection	Supports simultaneous detection and capture of human body, face, and vehicle
	Gets 7 face features
	Gets 13 human body features
	Gets 2 vehicle features
	Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle
Face Capture	Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second
	Supports swing left and right from -60degrees to 60degrees, tilt up and down from -30degrees to 30degrees
	Uploads face with background and closed-up face pictures
	Supports best shot and quick shot for capture mode
	Gets 7 face features
Face Comparison	Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total
	Supports face library encryption
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting
	Support alarm triggering by specified target types (human and vehicle)
	Support combined event alarm triggering
People Counting	Supports Multi-Dimension People Counting
	Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.)
	Supports real-time uploading and uploading by statistic cycle
	Supports generating daily, weekly, monthly or annually reports
	Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval
	Supports face feature deduplication
	Supports people flow data replenishment
Queue Management	Supports up to 8 detection regions, and independent arming schedule and linkage method
	Supports 2 detection modes: regional people queuing-up, waiting time detection
	Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
	Supports raw data export for further analysis
	Supports real-time data uploading and scheduled data uploading
	Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
	Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Heat Map	A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.
	Two report types are available, space heat map and time heat map line chart.
Hard Hat Detection	Detects up to 30 human targets simultaneously
	Supports up to 4 shield regions
Metadata	Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
Regional People Counting	Supports up to 8 detection regions, and independent arming schedule and linkage method
	Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
	Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
	Supports searching real-time number of people
	People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
	Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
	Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
On/Off Duty Detection	Supports up to 8 detection regions, and independent arming schedule and linkage method
	Supports 2 detection modes: absence detection, on/off duty detection
	Supports parameter settings: person on duty, absence duration
General
Power	12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
	PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
Material	Aluminum alloy body
Dimension	Without -Y: Ø144 mm x 347 mm (Ø5.7" x 13.7")
	With -Y: Ø140 mm x 351 mm (Ø5.5 x 13.8")"
Package Dimension	405 mm x 190 mm x 180 mm (15.9" x 7.5" x 7.1")
Weight	Approx. 1950 g (4.2 lb.)
With Package Weight	Approx. 3070 g (6.7 lb.)
Storage Conditions	-30 degreesC to 60 degreesC (-22 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-40 degreesC to 60 degreesC (-40 degreesF to 140 degreesF). Humidity 95% or less (non-condensing)
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Heartbeat, mirror, password protection, one-key reset
Heater	Yes
Device Management	Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
Approval
EMC	FCC: 47 CFR Part 15, Subpart B
	CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
	RCM: AS/NZS CISPR 32: 2015
	IC: ICES-003: Issue 7
	KC: KN32: 2015, KN35: 2015
Safety	UL: UL 62368-1
	CB: IEC 62368-1: 2014+A11
	CE-LVD: EN 62368-1: 2014/A11: 2017
	BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
	LOA: IEC/EN 60950-1
Environment	CE-RoHS: 2011/65/EU
	WEEE: 2012/19/EU
	Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection	-Y: NEMA 4X (NEMA 250-2018)
Automotive and Railway	EN50121-4
Other	PVC FREE
CC	Common Criteria, Assurance Level: EAL2 + ALC_FLR.2
