Overview:

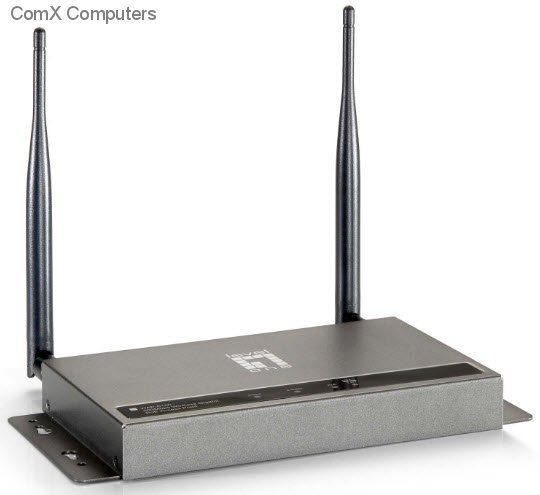

The tough, high performance WAP-6150 is designed for fast wireless connectivity in enterprise or industrial environments of all dimensions. Embedded with IEEE 802.11n/b/g 2.4GHz MIMO radio in an dust-proof metal housing, the enterprise access point provides up to 300 Mbps internet speed in an industrial grade housing. WAP-6150 enables fast, secure and easy wireless communication, with a WEC button for switching the device between Master and Slave Mode. In Slave Access Point (AP) mode, the device will extend a connection without requiring login to the configured Web, The Wireless Access Point also supports tunnel-based AP Management, and boasts business grade security such as 802.1X and Wi-Fi Protected Access (WPA and WPA2). It also supports WDS for connecting multiple WAP-6150 devices, forming a wider network area.

WAP-6150 features multiple ESSIDs with VLAN tags; one WAP-6150 can emulate up to eight Virtual APs, so offers great performance in situations commonly found in large enterprise, such as separating traffic from different departments using unique ESSIDs. Wireless clients are shielded from each other by Layer 2 isolation, preventing possible attacks from malicious users. When implemented with a Wireless Layer 2 firewall, WAP-6150 inspects all inter-virtual AP traffic as well as wireless-to-wired traffic and decides whether to block or allow passage according to specified security criteria. The device is also PoE compatible, according to standard IEEE 802.3af, and supports IEEE 802.11b/g/n wireless standards.

Features:

• Free bundled with professional software managing multiple AP devices
• Share your wireless network up to 300Mbps
• Compatible with IEEE 802.11b/g/n wireless standards
• Multi-operation modes to suit different wireless applications
• IEEE 802.3af PoE compliant to simplify deployment and installation
• Provides up to 8 SSIDs to separate network traffic and enhance security
• WEC(Wireless Easy Connection) button for automatic WDS connection
• Enlarge wireless network coverage through WDS technology
• Auto Channel Selection for low interference band
• Supports WEP, WPA and WPA2 encryption with IEEE 802.1X for high level security

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	WAP-6150
System Specifications
Connectors and Cabling	1x 10/100/1000 Mbps Base-T RJ-45 Port
	1x 10/100/1000 Mbps Base-T PoE Port
Button	WEC button, Reset button
Indicator	Power, WLAN, PoE, LAN
Power	Power over Ethernet (IEEE802.3af) 48 VDC
	Power supply DC12V / 1A
Standards & Protocols	IEEE 802.3 10-BASE-T, Ethernet
	IEEE 802.3u 100-BASE-TX, Fast Ethernet
	IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
	IEEE 802.1Q Tag-based VLAN
	IEEE 802.11e Wi-Fi Multimedia (WMM)
	IEEE 802.1X Port-based Network Access Control (PNAC)
	IEEE 802.3x Ethernet Flow Control
	IEEE 802.11i Wi-Fi Protected Access (WPA2)
	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wireless Networking
	IEEE 802.3 af Power over Ethernet
Wireless
Operating Mode	AP, Client, WDS (point-to-point/multi-point, max. 4 peer APs), WDS Hybrid, Universal Repeater
Encryption	WEP 64/128-bit Web share key encryption
	WPA, WPA2 128-bit TKIP/AES encryption
	WPA, WPA2-PSK TKIP/AES encryption
	802.1x RADIUS support
Receive Sensitivity(dBm)	802.11n (20MHZ): Range (-72 ~ -87) dBm
	802.11n (40MHZ): Range (-68 ~ -87) dBm
	802.11g: Range (-72 ~ -91) dBm Error Rate = 10% at room temperature.
	802.11b: Range (-89 ~ -91) dBm Error Rate = 8% at room temperature.
Channel	Ch.1 ~ 11 USA
	Ch.1 ~ 13 EU
EIRP(dBm)	(Controllable for different country regulations)
	802.11n: up to 17dBm ± 1dBm
	802.11g: up to 20dBm ± 1dBm
	802.11b: up to 20dBm ± 1dBm
Antenna	2x 5dBi Detachable Dipole Antenna
Frequency Band (GHz)	2.4 ~ 2.4835 GHz
Data Transfer Rate	802.11n: 300 ~ 78 Mbps
	802.11g: 54 ~ 6 Mbps
	802.11b: 11 ~ 1 Mbps
Features
General	Auto Channel Selection
	Multi-SSID: 8 SSIDs
Security	802.1x RADIUS support
	Wireless Easy Connection (WEC) Push Button
	SSID Broadcast On/Off
Management	Web-Based GUI Configuration
	Syslog monitoring
	SNMP V1/V2c/V3 supported
QoS	802.11e WMM Supported
Ease of Use	Web-based GUI with Quick Installation Wizard
	Web-based (HTTP) firmware upgrade
Performance
Number of Clients	Max. 128, 16 per SSID
Environment
Temperature (°C)	Operating: 0°C ~ 40°C
	Storage: -10°C ~ 70°C
Humidity (Non-condensing)	Storage: 0 ~ 95%
	Operating: 10 ~ 90%
Physical Specifications
Dimensions (W x D x H mm)	188 x 112 x 28 mm
Weight (g)	610 g
Others
Approval and Compliance	CE, FCC
Deployment	Desktop, wall-mounted
