Overview:

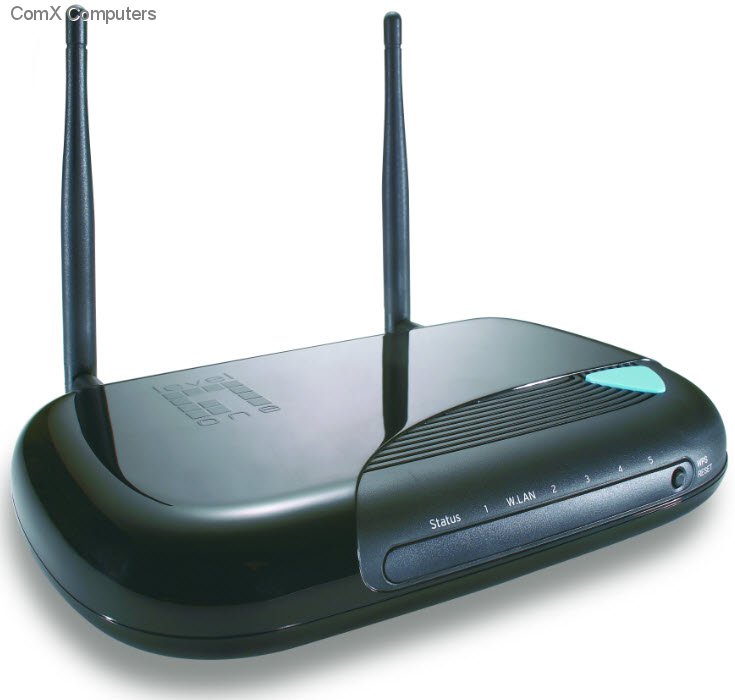

The LevelOne WAP-6013 is a wireless access point that offers home and office users 802.11n technology at a competitive price. With wireless speeds of up to 300 Mbps, it offers big improvements on legacy 11g devices for users who want to surf the net, stream videos and conduct large file transfers all at the same time. Supports AP, client, WDS, and Repeater modes for customized wireless deployments. In WDS mode, WAP-6013 acts as a wireless bridge/Access Point hybrid for connecting to two separate wireless networks simultaneously. This provides greater access to network resources for more users. In Repeater mode, it allows extended coverage and greater signal strength for greatly improved wireless network (WLAN) range. The WAP-6013 handles simultaneous wireless traffic easily and efficiently.

Features:

• Share your wireless network up to 300Mbps
• Compatible with IEEE 802.11b/g/n wireless standards
• Provides flexibility of 5x 10/100BASE-TX ports
• Multi-operation modes to suit different wireless applications
• Enlarge wireless network coverage through WDS technology
• Provides up to 2 SSIDs to separate network traffic and enhance security
• Auto Channel Selection for low interference band
• Effortless wireless security with a simple push of the WPS button
• IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
• Supports WEP, WPA and WPA2 encryption with IEEE 802.1X for high level security

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	WAP-6013
System Specifications
Connectors and Cabling	5x 10/100 Mbps Auto-MDIX RJ-45 Port
Button	WPS Button; Reset Button
Indicator	Status, WAN, LAN
Power	DC5V / 1A
Standards & Protocols	IEEE 802.3 10-BASE-T, Ethernet
	IEEE 802.3u 100-BASE-TX, Fast Ethernet
	IEEE 802.11e Wi-Fi Multimedia (WMM)
	IEEE 802.1X Port-based Network Access Control (PNAC)
	IEEE 802.3x Ethernet Flow Control
	IEEE 802.11i Wi-Fi Protected Access (WPA2)
	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wireless Networking
Wireless
Operating Mode	AP/Client/WDS (point-to-point/multi-point, max. 2 peer APs) /WDS Hybrid/Universal Repeater
Encryption	WEP 64/128-bit Web share key encryption
	WPA, WPA2 128-bit TKIP/AES encryption
	WPA, WPA2-PSK TKIP/AES encryption
Receive Sensitivity(dBm)	802.11n (20MHZ): Range (-72 ~ -87) dBm
	802.11n (40MHZ): Range (-68 ~ -87) dBm
	802.11g : Range (-72 ~ -91) dBm Error Rate = 10% at room temperature.
	802.11b: Range (-89 ~ -91) dBm Error Rate = 8% at room temperature.
Channel	Ch.1 ~ 11 USA
	Ch.1 ~ 13 EU
EIRP(dBm)	802.11n: 14dBm ± 1dBm
	802.11g: 14dBm ± 1dBm
	802.11b: 17dBm ± 1dBm
Antenna	2x 2dBi Detachable Dipole Antenna
Frequency Band (GHz)	2.4 ~ 2.4835 GHz
Data Transfer Rate	802.11n: 300 ~ 78 Mbps
	802.11g: 54 ~ 6 Mbps
	802.11b: 11 ~ 1 Mbps
Features
General	Auto Channel Selection
	WPS setup with PBC/PIN Support
	Multi-SSID: 2 SSIDs
Security	802.1x RADIUS support
	Wi-Fi Protect Setup (WPS) Push Button
	SSID Broadcast On/Off
Management	Web-Based GUI Configuration
	Syslog monitoring
	SNMP V1/V2c supported
QoS	802.11e WMM Supported
Ease of Use	Web-based GUI with Quick Installation Wizard
	Web-based (HTTP) firmware upgrade
Environment
Temperature (°C)	Operating: 0°C ~ 40°C
	Storage: -20°C ~ 70°C
Humidity (Non-condensing)	Storage: 0 ~ 95%
	Operating: 10 ~ 85%
Physical Specifications
Dimensions (W x D x H mm)	185 x 119 x 32mm
Weight (g)	238g
Others
Approval and Compliance	CE, FCC, NCC
Deployment	Desktop, wall-mounted
