Overview:

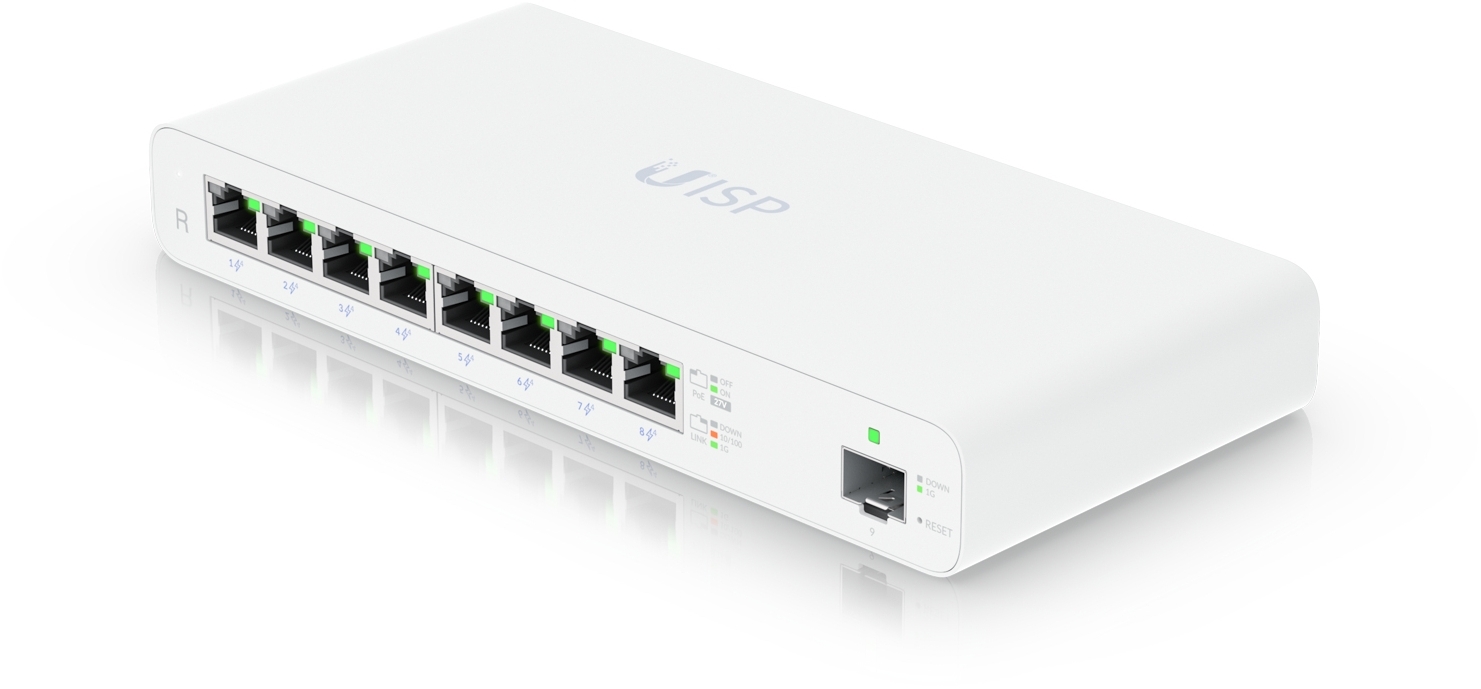

UISP Router
SKU: UISP-R
Gigabit PoE router for MicroPoP applications.

Ideal for wireless ISP (WISP) deployments, the UISP Router is a fanless PoE router featuring (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option. The UISP Router provides a cost-effective routing solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Router delivers substantial power to every radio in your service network. The UISP Router is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.

Features:

• (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
• (1) 1G SFP port
• 110W PoE supply when powered with the included AC/DC adapter
• Fanless, thermal cooling for silent operation
• Wall-mountable (kit included)
• Easy, Bluetooth-powered setup via the UISP Mobile app

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UB-UISP-R
Mechanical
Dimensions	210.4 x 95 x 29 mm (8.28 x 3.74 x 1.14")
Weight	600 g (1.32 lb)
Enclosure material	Polycarbonate
Hardware
Networking interface	(8) 10/1001000 MbE RJ45 ports
	(1) 1G SFP port
Management interface	Ethernet in-band
	Bluetooth BLE
Processor	Dual-core 880 MHz, MIPS1004Kc
Memory	512 MB DDR3
Onboard flash storage	512 MB NAND
Power method	External AC/DC adapter
Power supply	27VDC, 4.4A power adapter (included)
Supported voltage range	24 - 28VDC
Max. power consumption	10W (excludes PoE output)
ESD/EMP protection	Air: ± 15 kV, contact: ± 8 kV
Operating temperature	-10 to 50° C (14 to 122° F)
Operating humidity	5 to 95% non-condensing
Certifications	CE, FCC, IC
PoE
PoE interface	(8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
Max. Passive PoE wattage per port	30W/27VDC
Passive PoE voltage range	27VDC
LEDs
System	Status
RJ45 data ports	PoE
	Speed/link/activity
SFP data port	Link/activity
