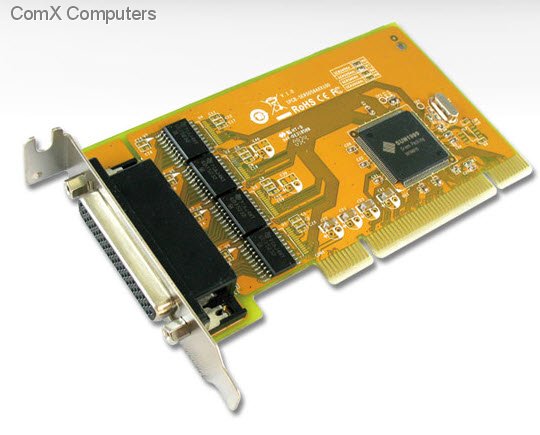

SX5056AL Sunix 4-port RS-232 Universal PCI Low Profile Serial Board
Images are for illustrative purposes and actual product may differ.
SX5056AL Multi I/O PCI interfaceSunix
SX5056AL information and overview
SX5056AL, lp, Sunix Serial PCI Card - Quad 9pin on cable, SUN1999 - Low Profile, includes DB44 to 4 Port DB9 Cable
Not for sale. This is a discontinued product.
Kindly search for an alternative on our site
Subject to correction, the product was first added on 2013-03-04 and the last date we have for this product is 2026-02-13, where the last unit was sold for R 74, which may have been a final clearance price.
Specifications & more information about SX5056AL, Multi I/O PCI interface manufactured by Sunix
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Overview: SUNIX SER5056AL, Universal PCI serial communication board, allows users to add or expand four RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5056AL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.
Features: - Expands 4 independent RS-232 serial port with communication speeds up to 115.2Kbps.
- High reliability SUN1999 16C950 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power.
- On-chip hardware auto flow control to guarantee no data loss.
- Built-in ± 2KV ESD protection for all serial signals.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Low profile bracket design idea for slim or portable PC.
- Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
- Support Microsoft Windows, Linux, and DOS.
Specifications: | ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | | Product Code | SX5056AL | Specifications | | Description | | Product Description | 4-port RS-232 Universal PCI Low Profile Serial Board | | Serial Communication | | Interface | RS-232 | | Controller | SUNIX SUN1999 (16C950 UART Compatible) | | Bus | Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1 | | No. of Port | 4-port | | IRQ & IO | Assigned by System | | FIFO | 128 byte (Hardware) | | Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI | | Baud rate | 50 bps to 115.2 Kbps | | Data bit | 5, 6, 7, 8 | | Stop bit | 1, 1.5, 2 | | Parity | None, Even, Odd, Space, Mark | | Flow Control | None, Xon/Xoff, RTS/CTS | | Protection | ±2KV ESD protection for each signal Human Body Model (HBM) | | PCB connector | DB44 Female | | Driver Support | | Microsoft Client | Windows XP/Vista/7 (X86/X64) | | Microsoft Server | Windows 2000/2003/2008 (X86/X64) | | Microsoft Embedded | Windows CE5.0/6.0/XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7 | | Linux | Linux 2.4.x / 2.6.x / 3.x | | DOS | DOS | | FreeBSD | FreeBSD 5.3~5.5 / 6.0~6.4 | | QNX | QNX 6.3.2/6.4.0 | | * IBM OS/2 | WARP 3/WARP 4 | | * SCO UnixWare | UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0 | | * Sun Microsystems | Solaris 10 | | Regulatory Approvals | | Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS | | Software | Microsoft WHQL Windows | | Microsoft Client: XP/Vista/7 (X86/X64) | | Microsoft Server: 2000/2003/2008 (X86/X64) | | Environment | | Operation Temperature | 0 to 60°C (32 to 140°F) | | Operation Humidity | 5 to 95% RH | | Storage Temperature | -20 to 85°C (-4 to 185°F) | | Dimension | | PCB Dimension | 120 x 68 mm | | Bracket | Low Profile 80 mm | | Bracket Space | 1 |
