Overview:

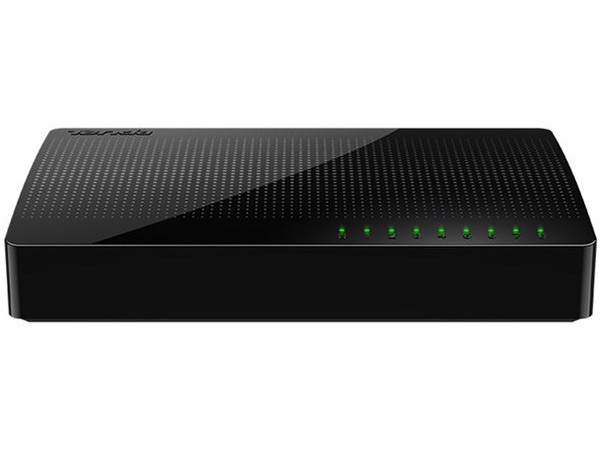

SG108 is a 8-Port Gigabit Desktop SOHO switch. It provides 8 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend to the uplink network. Compared with a 100M switch, It enhances transmission speed by up to 10 times, eliminating the bottleneck of cascading network bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be automatically installed and loaded once plug.With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.

Features:

• 8* 10/100/1000Mbps auto-negotiation ports
• Auto MDI/MDIX simplifies networking and maintenance
• Full wire speed forwarding ensures a smooth network experience
• Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked
• Adopts store-and-forward mechanism and provides 4K MAC address table
• 9K Jumbo frame improves the forwarding speed of large data
• Adopts green and environmental ABS material, improving heat resistance and heat dissipation
• Allows IP camera accessing and provides a running and clear image
• Desktop and wall mounting simplify installation

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SG108
Standard&Protocol	IEEE 802.3/u/x/ab
Interface	8* 10/100/1000Mbps auto-negotiation RJ45 ports, auto MDI/MDIX
Transmission Media	10BASE-T: Cat.3 or Above
	100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above
Forwarding Rate	10Mbps: 14880pps
	100Mbps: 148800pps
	1000Mbps: 1488000pps
LED	8*10/100/1000Mbps Link/Act LEDs
	1*power LED
Features	Store-and-forward mechanism
	Auto-learning and auto-aging MAC address
	Switching capacity of 16Gbps
Power Input	100-240V~50/60Hz
Power Output	9V/0.6A
Consumption	Standby: 2.3W Maximum : 5.5W(220V/50Hz)
Dimension	142*90*24mm
Operation Temperature	0°C~45°C
Operating Humidity	10%~90% non-condensing
Storage Temperature	-40°C~70°C
Storage Humidity	5%~90% non-condensing
