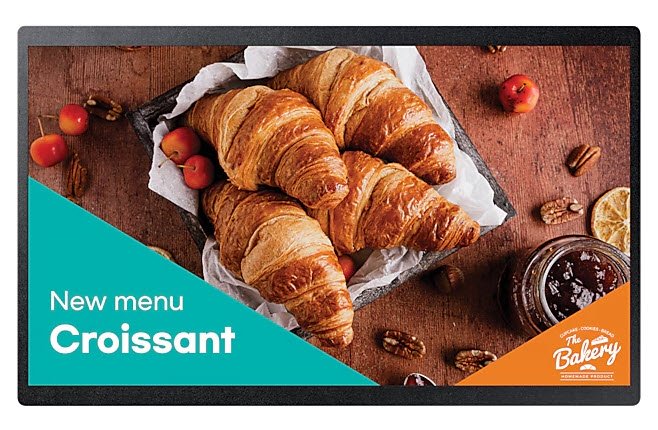

SAMSUNG QB24C

Features:

• Compact design
• Home UI
• Center IR

Expand commercial space with compact display
Get the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.

Hold sizable opportunities in small spaces
The compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.

Connect with convenience
QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Convenient, clean display control
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance
QB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.

Change the way to manage your display
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SAMSUNG QB24C
Display
Diagonal Size	23.8"
Panel Type	ADS
Resolution	1,920 x 1,080
Pixel Pitch (HxV)	0.2745 x 0.2745 mm
Brightness (Typ)	250 nit
Contrast Ratio	1, 000::1
Viewing Angle (H/V)	178/178
Response Time	14ms
Color Gamut	72(NTSC)
Glass Haze	0.25
H-Scanning Frequency	56~84.5KHz
Maximum Pixel Frequency	148.5MHz
V-Scanning Frequency	48~75Hz
Contrast Ratio (Dynamic)	Mega
Operation Time Support	16/7
Connectivity
HDMI In	1
DP In	No
Version of HDMI	1.4
Version of DP	No
Version of HDCP	2.2
USB	1
IR In	Yes
Audio In	No
Audio Out	Stereo Mini Jack
RS232 In	Yes
RJ45 In	Yes
WiFi	Yes
Bluetooth	Yes
Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (On Mode)	38.5 W
Power Consumption (Sleep Mode)	0.5 W
Dimension
Set Dimension (WxHxD)	547.9 x 334.4 x 31.8 mm
Package Dimension (WxHxD)	620 x 419 x 122 mm
Weight
Set Weight	3.0 kg
Package Weight	4.1 kg
Operation Conditions
Temperature	0 °C~ 40 °C
Humidity	10 ~ 80%, non-condensing
Mechanical Specification
VESA Mount	100 x 100 mm
Bezel Width	UD : 17.9 / LR : 9.4
Frame Material	Non-Glossy
Optional Feature
Mount	No
Stand	No
SoC
OS Version	Tizen 7.0
Flash Memory Size	8GB
Certification and Compliance
EMC	Class B
Safety	60950-1, 62368-1
