Overview:

Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch. Designed for high-density connections between 40GBASE-SR4 network equipment.

• Push/pull tab connectors install/remove with one hand
• Plenum-rated jacket for connecting in ceilings, walls and ducts
• Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
• Magenta color for easy OM4 identification
• Slim, space-saving uniboot design for neat cable management
• Premium-grade ceramic ferrule designed for fast applications

Features:

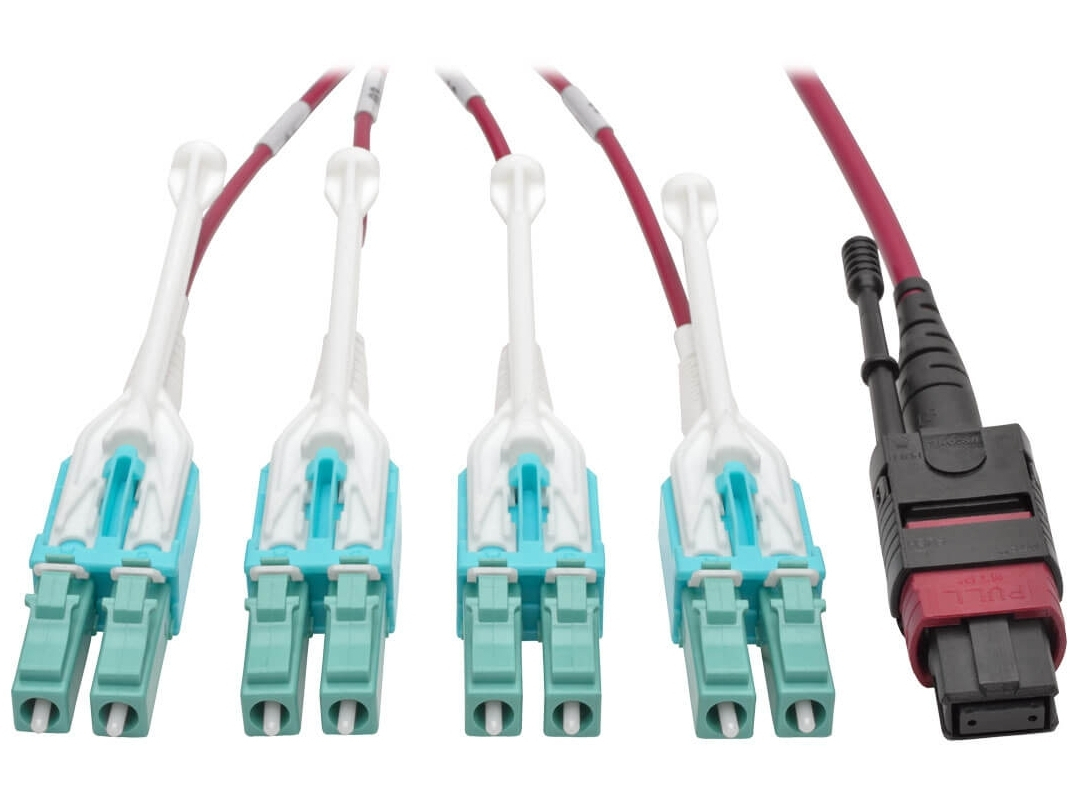

The five-meter N845-05M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one male MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.

Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-05M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.

OM4-Rated for 40 Gb Ethernet Applications

• Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch
• Designed for high-density connections between 40GBASE-SR4 network equipment
• Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
• Multimode fiber optic fan-out cable supports various multi- and single-fiber connections.
• Fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction
• Magenta-colored for identification as an OM4 cable

MTP/MPO and LC Connectors with Push/Pull Tabs

• 1 male MTP/MPO and 8 male LC connectors
• Push/pull tab connectors easy to install and remove with one hand

Error-Free Signal Transfer

• Premium-grade ceramic ferrule for 10 GbE and faster applications
• Slim, space-saving uniboot design makes cable easier to manage
• Plenum-rated jacket for connecting in ceilings, walls and ducts
• Sturdy plastic housing built to last a long time

Package Includes

• N845-05M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable, Magenta, 5 m

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	N845-05M-8L-MG
OVERVIEW
UPC Code	37332200075
Technology	Multimode
Optical Mode	OM4
CONNECTIONS
Side A - Connector 1	12-STRAND MTP/MPO (FEMALE)
Side B - Connector 1	(8) LC DUPLEX (MALE)
Endface Polish	PC
Polarity	Type B (cross)
PHYSICAL
Cable Jacket Color	Magenta
Connector Color	Aqua , Magenta , Black
Cable Jacket Material	PVC
Cable Jacket Rating	OFNP
Clad Diameter (microns)	125
Core Diameter (microns)	50
Number of Fibers	8
Cable Length (m)	5
Minimum Bend Radius	20 mm (Dynamic) , 10 mm (Static)
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.1
Fiber Cable Length	5M (16.4 ft)
ENVIRONMENTAL
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
COMMUNICATIONS
Network Compatibility	40 Gbps , 100 Gbps , 400 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	= 0.35 dB
FEATURES & SPECIFICATIONS
Push/Pull Tabs	Yes
Breakout	Yes
Trunk	Yes
STANDARDS & COMPLIANCE
Product Compliance	RoHS , REACH
