Overview Summary
The Mimosa C6x Lite Edition wireless radio delivers reliable, high-speed connectivity for both point-to-point and point-to-multipoint deployments. With throughput of up to 1.0 Gbps and support for the 5.15-6.425 GHz spectrum, it is engineered for efficient broadband distribution across urban and remote environments. Its rugged IP67-rated enclosure ensures consistent outdoor performance, making it suitable for demanding South African conditions.
Designed for cost-effective scalability, this unit supports flexible antenna options and advanced interference management, allowing stable connections over varying distances. Whether you are expanding a network or building a wireless backhaul, this solution offers dependable performance. Buy now to upgrade your network infrastructure or shop now to deploy reliable wireless connectivity with ease.

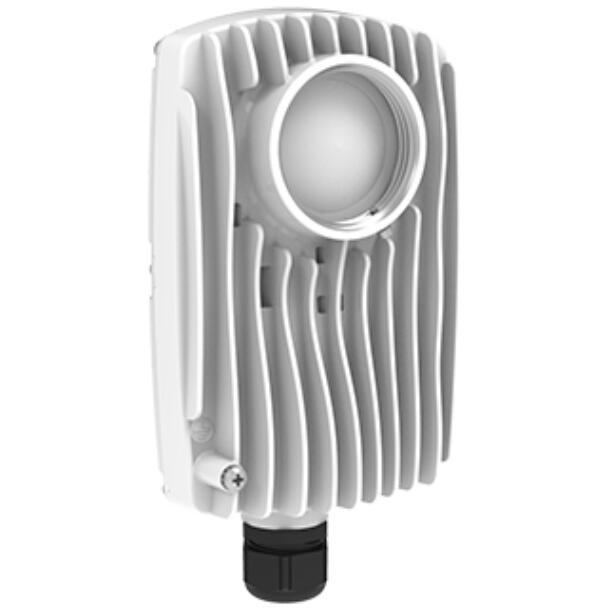

Mimosa C6x Lite Wireless Radio for PtP and PtMP Connectivity The Mimosa C6x Lite Edition is a cost-efficient fixed wireless solution engineered for reliable high-speed connectivity across both Point to Point and Point to Multipoint deployments. Designed to operate within the 5.15 to 6.425 GHz spectrum, it delivers up to 1.0 Gbps aggregate throughput in PtP mode and up to 750 Mbps in PtMP scenarios. With streamlined 80 MHz channel operation and strong interference mitigation, it performs consistently in both urban and remote environments. Its rugged IP67-rated enclosure and modular antenna compatibility make it suitable for scalable broadband networks and demanding outdoor installations.
Description
The Mimosa C6x Lite (SKU: MIM-C6X-LITE) is a versatile wireless radio built for operators who require dependable throughput without excessive cost. It supports both PtP backhaul links and PtMP client deployments, offering flexible network design options. With a durable die-cast aluminum housing, advanced spectrum management, and support for modular X-series antennas, it adapts to a wide range of deployment scenarios. This unit is particularly effective for ISPs, enterprise connectivity, and rural broadband expansion where performance, reliability, and scalability are critical.
Features
High-Speed Wireless Performance The C6x Lite is engineered for efficient data delivery across varying distances. It supports adaptive modulation up to 1024QAM and operates with 2x2 MIMO, ensuring optimal throughput under changing signal conditions.
Up to 1.0 Gbps aggregate throughput in PtP deployments
Up to 750 Mbps aggregate throughput in PtMP deployments
20, 40, and 80 MHz channel bandwidths with fine tuning capability
Frequency range from 5150 MHz to 6425 MHz
Maximum transmit power of 27 dBm
Optimized for PtMP Scalability When deployed in PtMP mode, the C6x Lite integrates effectively with beamforming access points, enabling efficient subscriber scaling and improved spectrum reuse. Its TDMA-based communication enhances stability and reduces latency in multi-client environments.
Supports TDMA-based PtMP communication
Designed for integration with high-capacity access points
Efficient noise handling and interference avoidance
Reliable Backhaul for PtP Links For backbone and long-distance links, the C6x Lite provides consistent gigabit-class connectivity. Its interference mitigation and channel optimization capabilities allow stable operation even in congested RF conditions.
Ideal for backhaul and building-to-building links
Maintains link stability in high-noise environments
Supports flexible antenna gain configurations from 8 dBi to 30 dBi
Flexible Deployment and Antenna Options The modular design allows the use of Mimosa X-series antennas, enabling tailored performance based on range and coverage requirements. For short-range links, the integrated 8 dBi option can be used without an external antenna.
Compatible with twist-on N5-X antennas
Gain options: 8, 12, 16, 20, 25, and 30 dBi
Built-in antenna usable for short-distance links
Durable Outdoor Design Built to withstand harsh environmental conditions, the C6x Lite features a robust enclosure and reliable mounting system suitable for long-term outdoor use.
IP67-rated weatherproof enclosure
Die-cast aluminum housing with UV-stable coating
Dual-pole strap mounting support
Ground lug for proper grounding
Power and Interface Details The device uses a passive PoE system and includes a Gigabit Ethernet interface for high-speed data transmission.
Passive PoE power method (24V, injector sold separately)
Maximum power consumption of 20 W
1x Gigabit Ethernet port
Key Technical Details
MIMO: 2x2 with support for advanced modulation schemes
Rx sensitivity: up to -96 dBm depending on channel width
Operating temperature: -40 C to +55 C
Humidity tolerance: 5 to 100 percent condensing
Maximum operating altitude: 4420 meters
Network Management and Security The system includes a comprehensive set of management tools and security protocols to support professional deployments.
Web-based interface with HTML5 GUI
SNMP v2c and v3 support
HTTPS and Syslog integration
VLAN support including management VLAN and per-client VLAN
AES encryption and RADIUS authentication support
Additional Identification This model is commonly referenced under part number MIM-C6X-LITE and manufacturer code 100-00111-01, ensuring accurate sourcing and compatibility verification.
