About this product

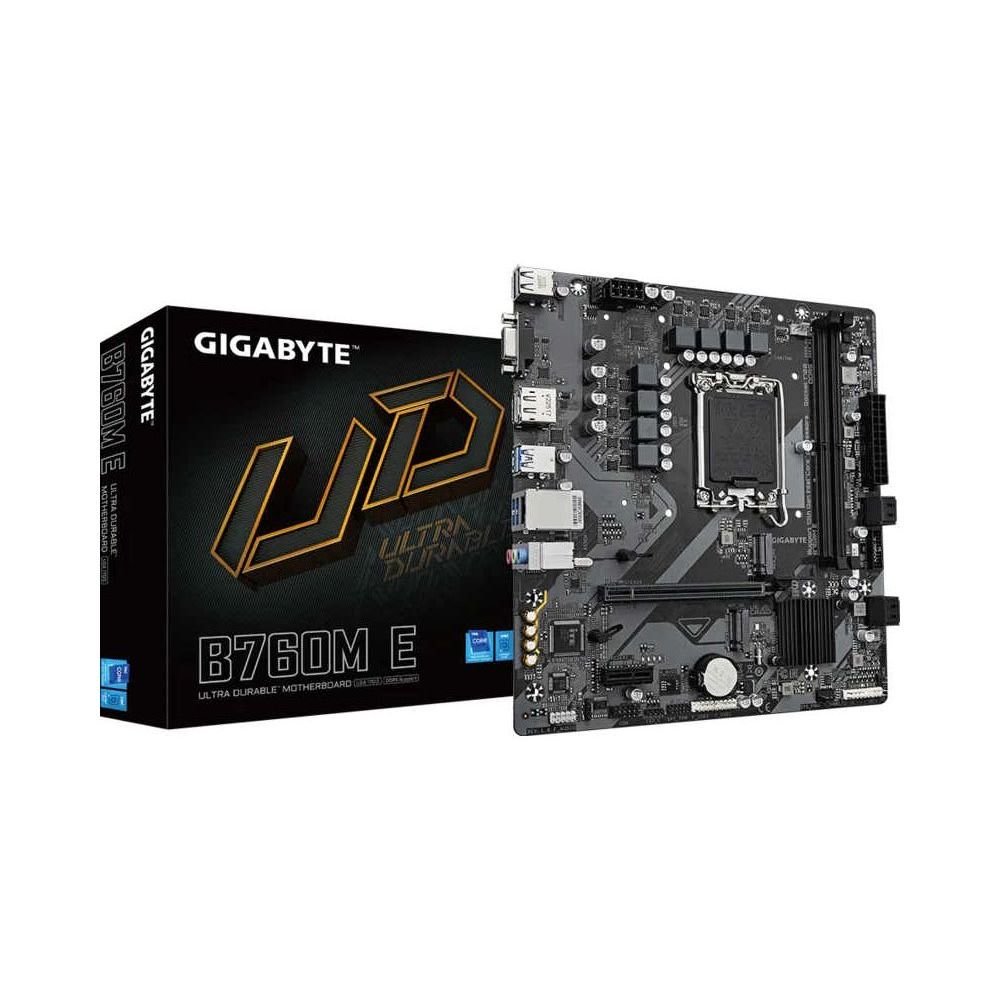

The Gigabyte B760M-E D5 LGA1700 motherboard is a high-performance Micro-ATX board featuring Intel B760 chipset support for 12th, 13th, and 14th Gen Intel Core processors. It offers dual-channel DDR5 memory, PCIe 4.0 x16 expansion, dual PCIe 4.0 M.2 slots, multiple display outputs including HDMI, DisplayPort, and D-Sub, robust GbE LAN connectivity, and advanced Smart Fan 6 cooling for stable operation under demanding workloads.
The Gigabyte B760M-E D5 LGA1700 motherboard combines cutting-edge Intel chipset performance with DDR5 memory support and PCIe 4.0 expansion options. Its dual-channel memory design ensures high-speed data transfer for gaming, productivity, and creative applications, while dual PCIe 4.0 M.2 slots provide ultra-fast NVMe storage support. The board's HDMI, DisplayPort, and D-Sub outputs offer flexible display configurations for multiple monitors.
Engineered with a durable VRM design and Smart Fan 6 cooling technology, this motherboard ensures stable operation even under intensive workloads. Gigabit LAN connectivity and optimized layout make it suitable for both gaming setups and professional workstations.
Performance tier: High-Performance
Uses: Gaming, Content Creation, Office Productivity, Media Editing, Multi-Monitor Setups
Description
The Gigabyte B760M-E D5 motherboard is designed to provide a reliable foundation for modern Intel systems. Its DDR5 dual-channel memory slots deliver rapid data throughput for multitasking and demanding applications. Dual PCIe 4.0 M.2 connectors allow high-speed NVMe SSDs to maximize storage performance. The board supports multiple display outputs including HDMI, DisplayPort, and D-Sub, ensuring compatibility with various monitors and professional setups. Smart Fan 6 technology and a reinforced VRM design maintain optimal thermal performance and system stability.
Features
Intel B760 chipset: Provides advanced connectivity and platform support for 12th, 13th, and 14th Gen Intel Core processors.
DDR5 Dual-Channel Memory: Two DIMM slots for high-speed RAM supporting stable multitasking and performance-intensive applications.
PCIe 4.0 x16 Slot: Ideal for high-end graphics cards or expansion devices, delivering superior bandwidth.
Dual PCIe 4.0 M.2 Slots: Supports NVMe SSDs for ultra-fast storage performance and improved system responsiveness.
Smart Fan 6 Cooling: Advanced thermal sensors and fan control to maintain optimal system temperatures.
Durable VRM Design: Ensures reliable power delivery to the CPU under heavy workloads.
Multiple Display Outputs: HDMI, DisplayPort, and D-Sub ports for versatile monitor configurations.
GbE LAN: Stable and high-speed wired network connectivity for gaming and productivity.
6 1 1 Phases Hybrid Digital VRM Design
6 1 1 Phases Low RDS(on) MOSFETs
Premium Choke and Capacitors to improve transient response and minimize oscillation
PCIe 4.0 Design GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
DDR5 Overclocking Up to 7200 and Beyond* GIGABYTE is offering a tested and proven platform that has memory overclocking capability up to 7200 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard
Unlock DDR5 Voltage
GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
Transforms Native DDR5 memory module to Overclocked DDR5 memory
Increases DDR5 memory overclocking performance and capability
Supports all PMIC vendors for maximum compatibility
Programmable Mode GIGABYTE's exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.
Shielded Memory Routing All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Impedance Optimized Topology By optimizing memory trace width, length and style from HPC simulation to actual implementation, overall impedance is lowered between CPU memory controller and memory modules to achieve higher DDR5 speed.
Low Signal Loss PCB Server grade mid-loss or low-loss PCB material is chosen to lower signal loss inside PCB and maintain DDR5 high speed signal transmission.
DDR5 Auto Booster Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.
DDR5 Memory Upgrade GIGABYTE BIOS offers pre-defined and retrievable profiles for users to get higher performance easily. The profiles are based on a database that is created by checking each memory IC and PMIC vendors to optimize the modules to unleash their full potential. This is a time saving feature to manually configure overclocked DDR5 memory kits.
Instantly upgrade memory performance
Overclock Native and XMP 3.0 DDR5 memory to higher frequency easily
No need to input dozens of memory parameters such as clock, voltage and timings
Built-in wide variety pre-tuned profiles database for different memory IC vendors
XMP 3.0 User Profile Define and create your own SPD profile into Native and XMP 3.0 memory modules or apply the pre-tuned profiles to XMP 3.0 User Profile. Two user-defined profiles can be saved, loaded either locally or from/to an external storage device.
Two empty SPD profiles can be defined by users and carry to next computer
Transfer DDR5 XMP Booster profiles into XMP 3.0 User Profiles
Quick memory performance simulation based on user input clock and timing parameters
Profile save and load function to share your memory parameters online
GIGABYTE PerfDrive PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel(RegTM) Core(TM) processors.
SMART FAN 6 Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
High Current Support Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control Multiple temperature/fan speed control points for precise fan curve
Dual Curve Mode Slope/Stair dual mode for different user scenario
Fan Stop Fan can stop completely below users' specified temperature point
Improve fan curve UI We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph mode Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual Input For advanced users, we provide fan speed manual input for more precise control.
EZ Tuning Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profile Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
GbE LAN with Bandwidth Management GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Friendly User Interface The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites Add constantly used items into the favorite menu for quick access.
Storage Information Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE Control Center GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
Unified software platform for all Gigabyte supported products
Intuitive user interface for an eased experience
Modularized control components only for installed hardware
Auto update function to keep system up to date and support future products
PCIe EZ-Latch Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
FAQ
Which Intel processors are compatible with the B760M-E D5 motherboard?
This motherboard supports 12th, 13th, and 14th Gen Intel Core processors using the LGA1700 socket.
How much RAM can this motherboard support?
The board has 2 DDR5 DIMM slots in dual-channel configuration. Maximum supported RAM depends on specific modules and BIOS version, typically up to 64 GB.
Does the motherboard support M.2 NVMe SSDs?
Yes, it has 2 x PCIe 4.0 M.2 slots for high-speed NVMe storage devices.
What display outputs are available?
The motherboard offers HDMI, DisplayPort, and D-Sub outputs for various monitor setups and resolutions.
What cooling features are included?
Smart Fan 6 technology manages fan speeds based on temperature sensors to keep CPU and system components cool.
