HK-302600066

Overview

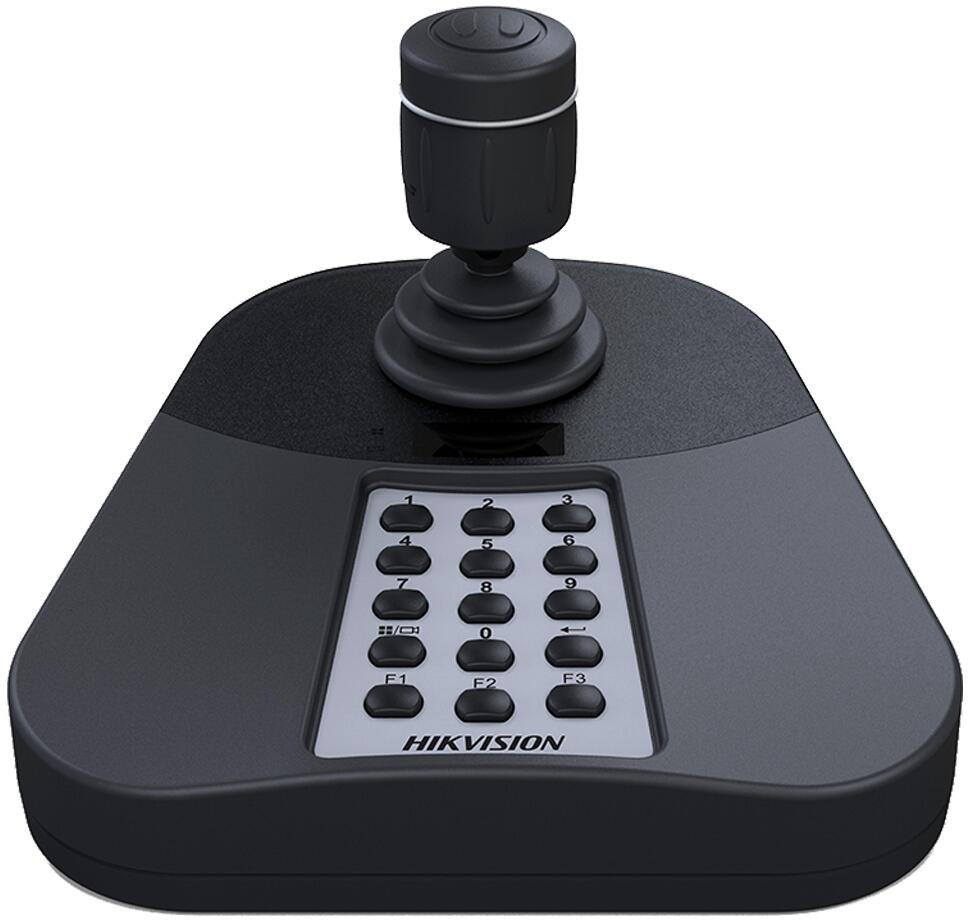

The Hikvision DS-1005KI(O-STD) USB Keyboard is a dedicated control keyboard designed for managing compatible Hikvision cameras, NVRs, DVRs and iVMS-4200 . It provides convenient control through a flexible 4-axis joystick and dedicated buttons for performing powerful functions, making it suitable for surveillance monitoring and camera control applications.

Description

The Hikvision DS-1005KI(O-STD) combines a full-featured USB keyboard with a flexible joystick for practical surveillance system control. The joystick supports 3-axis control with rotating zoom, while the dedicated buttons can be used to perform various functions. USB 2.0 connectivity and USB-powered operation provide straightforward installation with compatible systems.

Features

Hikvision DS-1005KI(O-STD) Control Keyboard
Designed for use with compatible Hikvision surveillance equipment, the DS-1005KI provides a central control interface for cameras, NVRs, DVRs and iVMS-4200 . Its compact design makes it suitable for desktop control in monitoring environments where quick and precise operation is required.

Key highlights include:

• Full-featured USB keyboard for surveillance system control
• Supports various compatible cameras, NVRs and DVRs
• Compatible with iVMS-4200
• Flexible 4-axis joystick
• 3-axis joystick control with rotating zoom
• Dedicated buttons for powerful control functions
• USB 2.0 interface
• 5V DC power supplied through USB

Joystick and Camera Control
The integrated joystick provides practical control for compatible surveillance cameras, including 3-axis movement and rotating zoom. This allows operators to manage supported camera functions directly from the keyboard rather than relying solely on software controls.

Connectivity and Compatibility
The DS-1005KI connects through USB 2.0 and is designed to work with supported Hikvision surveillance equipment and iVMS-4200 . The unit is powered directly through USB, eliminating the need for a separate power supply.

Supported operating systems include:

• Windows XP
• Windows 7
• Windows 8
• Windows 8.1
• Windows 10

Technical Details

• Part Number / SKU: HK-302600066
• Model: Hikvision DS-1005KI(O-STD)
• USB Interface: USB 2.0, DirectX
• Serial Interface: Joystick, 3-axis control with rotating zoom
• Power Supply: 5V DC via USB
• Dimensions: 167 x 116 x 177.5 mm
• Working Temperature: -10 C to 55 C
• Working Humidity: 10% to 90%, non-condensing

Built for Surveillance Control
With its USB connectivity, integrated joystick and dedicated control buttons, the Hikvision DS-1005KI(O-STD) provides a practical interface for operating compatible surveillance systems. Its compact dimensions and USB-powered design make it suitable for desktop monitoring and control setups.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	HK-302600066
Interface
USB Interface	USB 2.0, DirectX
Serial Interface	Joystick (3-axis control,rotating zoom)
General
Working Temperature	-10degreesC ~ 55degreesC (14degreesF ~ 131degreesF)
Working Humidity	10%~90% (Non-condensing)
Dimensions (W x H x D)	167 x 116 x 177.5mm ,(6.57" x 4.57" x 6.99")
Power Supply	5V DC via USB
System
Operating System Supported	Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10
Certification
Obtained Certification	CE-EMC / CE-LVD / ROHS / CB / UL / FCC-SDoC / IC-VoC / BIS / RCM
