GS-GAC2570

Overview:

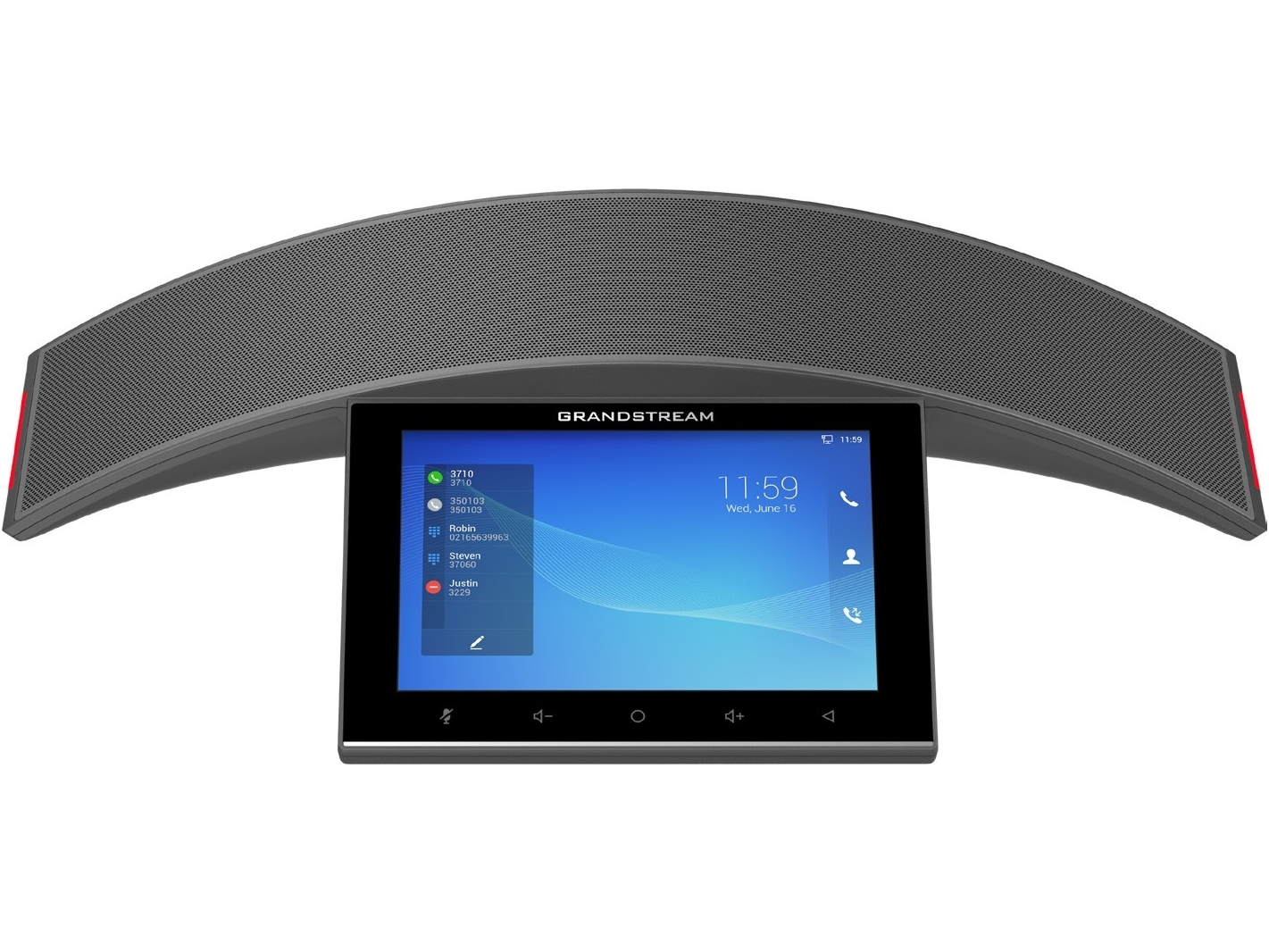

The GAC2570 is a full-duplex conferencing device featuring high-quality voice communication for meeting rooms, huddle areas, boardrooms, and other conferencing spaces. The device features an exceptional speaker with MMAD (Multichannel Microphone Array Design) to deliver a natural and immersive conferencing experience to both local and remote participants. This wireless design is composed of a wireless extension microphone, modern Wi-Fi and Bluetooth support, and a built-in battery. It features a 7" 1280x800 IPS touchscreen LCD with conferencing support for up to 12 attendees. The GAC2570 enables any ongoing conference to remain uninterrupted in case of the occasional conference room change. This device supports a 5m pick-up range and can be connected with two GMD1208 desktop wireless microphones up to 20m away to enhance audio quality and provide full room coverage. Additionally, its modern industrial design and rich features make it a customizable conferencing solution for small to medium-sized conference rooms and other day-to-day business conferencing spaces

Features:

• Full-duplex speakerphone with HD acoustic chamber, advanced acoustic echo cancellation, and microphone beamforming array
• 12 omnidirectional microphones with MMAD (Multichannel Microphone Array Design)
• Supports 5m pickup range, and can be paired with two GMD1208 desktop wireless microphones up to 20m away for full-room coverage
• 10/100/1000Mbps network port with PoE+ and dedicated media port for collaborate
• Integrated Bluetooth 5.0 support
• Integrated Wi-Fi 6, Dual-band 2.4 & 5GHz with 802.11 a/b/g/n/ac/ax
• Supports 12-party conferences

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	GS-GAC2570
Protocols / Standards	SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN
Operating System	Android 10
Network Interface	One 10/100/1000 Mbps port with integrated PoE+
Wi-Fi	Wi-Fi 6, Dual-band 2.4 & 5GHz with 802.11 a/b/g/n/ac/ax
Bluetooth	Integrated. V2.1+EDR, V5.0 dual mode.
Microphone	12 omnidirectional microphones with MMAD
External Microphone	GMD1208, cascade up to 2
Speaker	10-watt high-fidelity speaker
	Frequency: 100-20000 Hz
	Volume: Up to 83 dBA at 1.0 meter
Auxiliary Ports	1x Media port, 1x network port, 1x HDMI IN, 1x USB, 1x Line-Out, 1x Micro-USB, 1x Kensington lock
Voice Codecs	G.711μ/a, G.722 (wide-band), G.722.1c, G.726-32, iLBC, Opus, G.729A/B in-band and out-of-band
	DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise shield
Telephony Features	SIP paging, hold, call park/pickup, 12-way audio conference(including the host), multi-party calls automatically form a meeting, virtual MPK, downloadable contacts (XML, LDAP, up to 2000 items), call record(local and server), call log (up to 2000 records), call waiting, auto answer, flexible dial plan, personalized music ringtones, and music on hold
HD Audio	Yes, HD speakerphone with support for full-band audio
Certification	Zoom
QoS	Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security	User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES en- crypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Upgrade/Provisioning	Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using AES encrypted XML configuration file
Power & Green Energy Efficiency	Integrated PoE+ 802.3at Class 4
	Built-in rechargeable 3300mAh battery to allow up to 4-hour talktime
Package Content	GAC2570 Conference Phone, Ethernet cable, Micro-USB cable, quick installation guide, PoE Injector, HDMI cable (optional), GMD1208 dual wireless extension microphones (optional)
Temperature and Humidity	Operation: 0°C to 40°C
	Storage: -10°C to 60°C
	Humidity: 10% to 90% Non-condensing
Physical	Unit weight: 1.38Kg
	Unit dimensions: 419.7 (L) x 218.5 (W) x 78.6mm (H)
Compliance	FCC, CE, RCM, IC, UKCA
