Overview:

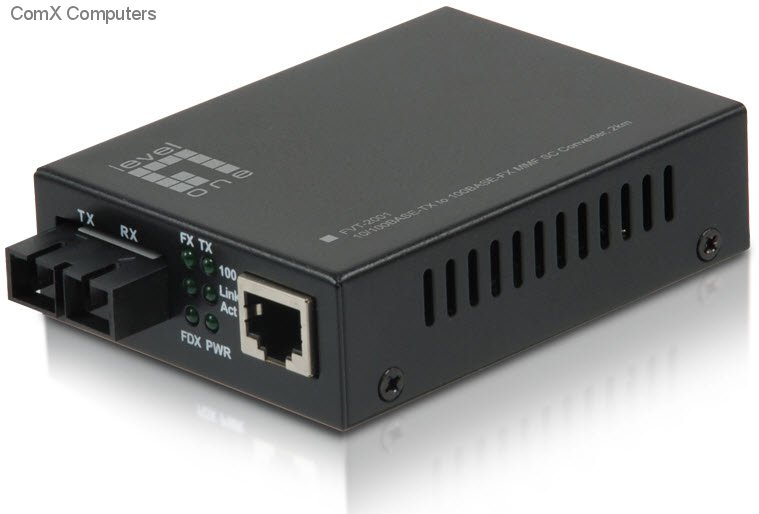

The FVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 2km. The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode. The FVT-2001 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.

Features:

• Transfers data from 10/100Base-TX copper to fiber interfaces
• Multi-mode fiber with SC connector for transmission of up to 2km
• Built-in LFP (Link Fault Pass-through) Technology
• IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
• Dip switches for customized configuration
• Supports low-time lag transmission
• Supports the transmission of extra-long packets up to 1.6KB
• -10°C ~ 55°C operating temperature range

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	FVT-2001
System Specifications
Connectors and Cabling	1 x 100Base-FX Multi-mode duplex SC
	Fiber cable: 50/125um, 62.5/125um
	1 x 10/100Base-TX RJ-45 Port, auto MDI/MDI-X and Auto-Negotiation
Wavelength(nm)	1310nm
	Indicator:
	PWR, TX (FDX, 100, Link/Act), FX (100, Link/Act)
Transmission Method	Store and forward (Default)
	Power:
	DC 5V/1A
Standards & Protocols	IEEE 802.3 10-BASE-T, Ethernet
	IEEE 802.3u 100-BASE-TX, Fast Ethernet
	IEEE 802.3x Flow Control (full-duplex flow control)
Features
General	DIP Switch 1: LFP function
	DIP Switch 2: Transmission Mode
	DIP Switch 3: Auto/Force the UTP port work mode
	DIP Switch 4: 10/100M for UTP port
	DIP Switch 5: Full/Half Duplex mode for UTP port
	DIP Switch 6: Normally close
Performance
Operating Distance	2KM
Environment
Temperature (°C)	Storage: -40 ~75 °C
	Operating: -10 ~ 55 °C
Humidity (Non-condensing)	5 ~ 90 %
Physical Specifications
Dimensions (W x D x H mm)	71 x 94 x 26 mm
Weight (g)	420 g
Others
Approval and Compliance	CE, FCC
Deployment	Desk, chassis mounted
