About this product
The Fanvil i507W is a 10.1-inch Android SIP indoor monitor with a 1280 x 800 IPS capacitive touchscreen, dual-band Wi-Fi, Ethernet and PoE connectivity. Designed for IP video intercom and access control, it supports two-way hands-free communication, compatible IP camera viewing, remote door unlocking, alarm integration and selected third-party Android applications. Buy the Fanvil i507W from our website for a practical indoor security and communication solution.
Overview Summary

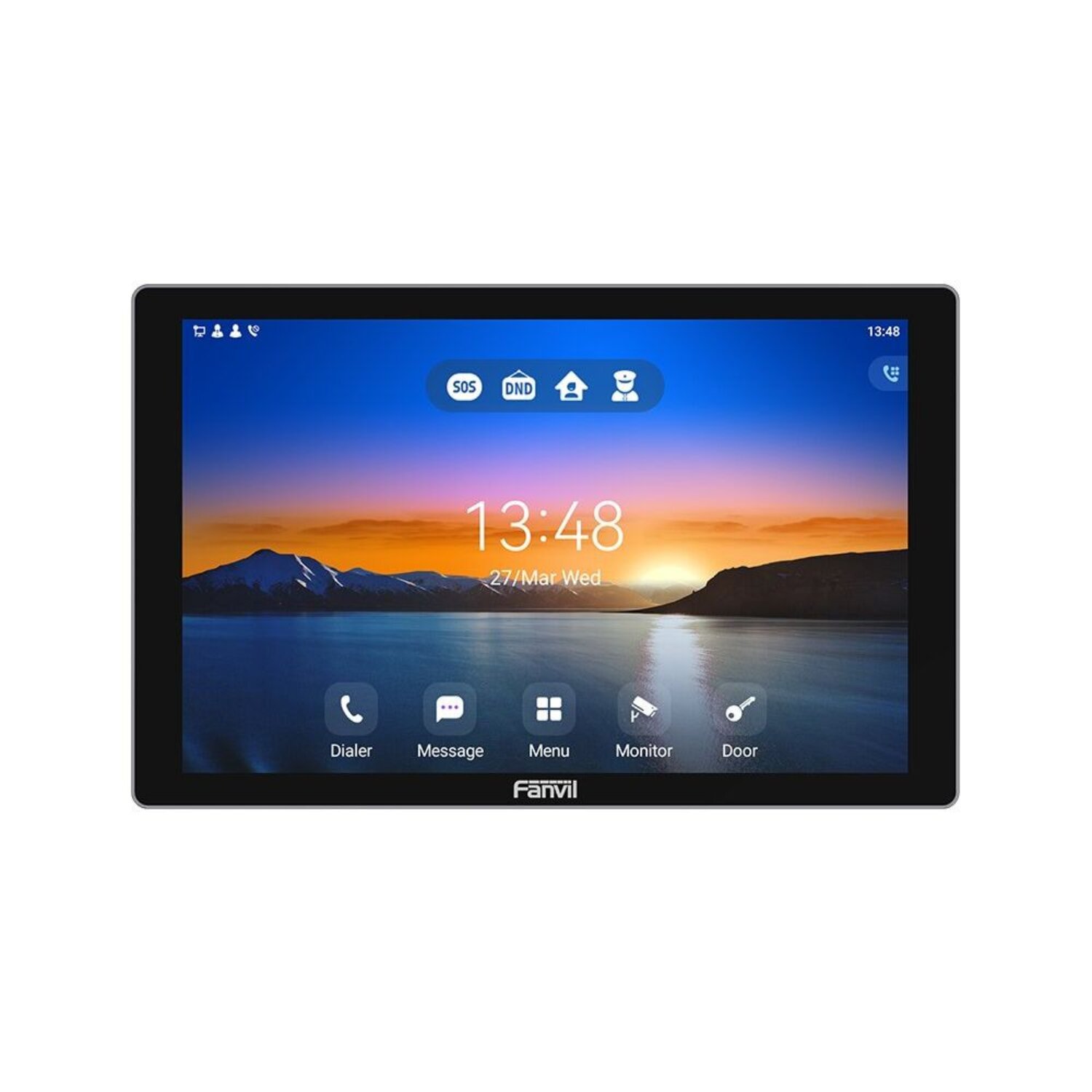

Fanvil i507W 10.1-inch Android SIP Indoor Monitor
The Fanvil i507W is an Android 9.0 indoor station designed for residential communities, villas, hotels and office environments. Its 10.1-inch IPS colour capacitive touchscreen provides a 1280 x 800 display for operating the indoor intercom, viewing compatible video sources and controlling supported access functions.
The i507W combines SIP 2.0 communication, dual-band 2.4 GHz and 5 GHz Wi-Fi, 10/100 Mbps Ethernet and IEEE 802.3af PoE. It supports full-duplex hands-free calling with acoustic echo cancellation, remote door unlocking, third-party IP camera viewing, configurable incoming call ringtones, messaging and selected third-party applications. Multiple alarm and control interfaces also support integration with compatible security equipment.
Performance tier: Professional indoor IP intercom and access control station
Uses: Residential security, villas, apartments, hotels, office buildings, video intercom, visitor communication, access control, alarm integration, IP camera monitoring
Overview
The i507W is a 10.1-inch touch screen indoor station, featuring a stylish design and intuitive UI. Running on Android 9.0, it seamlessly integrates with third-party apps. With a variety of expansion interfaces, it easily connects with security devices for features like two-way intercom, remote door opening, and alarms. Perfect for residential communities, villas, office buildings, and more, it delivers a safe and convenient living experience.
Quick Specifications
- Screen size: 10.1 inches
- Flat or curve: Flat
- Panel type: IPS capacitive touchscreen
- Aspect ratio: -
- Resolution: 1280 x 800
- Refresh rate: -
- Brightness (nits): - nits
- Contrast ratio: -
- View angle (degrees): - degrees
- Response time (ms): - ms
- Frequency (Hz): - Hz
- Sync: -
- Video ports: -
- VESA: -
- Monitor performance tier: Professional indoor IP intercom and access control station
- Uses: Video intercom, access control, IP camera monitoring, residential security, office security
Strong reasons to buy
- Large 10.1-inch touchscreen: Provides a clear and convenient interface for indoor intercom and access control functions.
- Android 9.0 platform: Supports application customisation and selected third-party applications.
- Flexible networking: Built-in dual-band Wi-Fi and 10/100 Mbps Ethernet provide flexible network connection options.
- PoE support: IEEE 802.3af PoE provides network connectivity and power through a compatible Ethernet connection.
- Security integration: Eight alarm inputs, a short-circuit output, doorbell input and reserved RS485 interface support compatible security equipment.
- Two-way communication: Full-duplex hands-free calling and acoustic echo cancellation support clear indoor communication.
- Access control functions: Supports remote door unlocking when connected to compatible access control equipment.
Description
The Fanvil i507W is a professional 10.1-inch Android SIP indoor station designed to combine video intercom, visitor communication, access control and compatible security monitoring in one touchscreen device. Its large IPS capacitive touchscreen uses a 1280 x 800 resolution and provides an intuitive interface for operating supported functions.
Powered by Android 9.0, the i507W supports application customisation and selected third-party applications. This makes the indoor station suitable for installations where additional software functionality or integration with compatible security applications is required.
For communication, the i507W supports SIP 2.0 over UDP, TCP and TLS. Its full-duplex hands-free audio system uses a 2W speaker and acoustic echo cancellation to support two-way conversations with compatible SIP door stations and other supported devices.
The i507W can also display video from compatible third-party IP cameras and supports video call resolutions including QVGA, CIF, VGA, 4CIF, 720P and 1080P. Hardware video decoding supports H.264, with H.265 listed as an optional capability.
For network connectivity, the indoor station supports dual-band 2.4 GHz and 5 GHz Wi-Fi as well as 10/100 Mbps adaptive Ethernet. IEEE 802.3af PoE and a 12V 1A DC power input provide installation flexibility where compatible network infrastructure or local power is available.
Security integration is supported through eight alarm inputs, one short-circuit output, one doorbell input and one reserved RS485 interface. These connections allow the unit to be incorporated into compatible access control, alarm and building security systems.
The Fanvil i507W is wall-mounted and measures 247.96 x 156.96 x 25.6 mm. Its combination of touchscreen control, SIP communication, Wi-Fi, PoE, video monitoring and security interfaces makes it suitable for residential communities, villas, hotels and office buildings.
Features
The Fanvil i507W combines indoor communication, video monitoring and access control functionality in a single Android-based touchscreen station.
- 10.1-inch colour capacitive IPS touchscreen
- 1280 x 800 screen resolution
- Android 9.0 operating system
- SIP 2.0 support over UDP, TCP and TLS
- Full-duplex hands-free calling
- Acoustic Echo Cancellation for improved two-way communication
- Built-in 2W speaker
- Dual-band 2.4 GHz and 5 GHz Wi-Fi
- 10/100 Mbps adaptive Ethernet
- IEEE 802.3af Power over Ethernet support
- 12V 1A DC power input
- Remote door unlocking with compatible access control equipment
- Viewing of compatible third-party IP camera video
- Support for compatible video resolutions up to 1080P
- H.264 hardware video decoding
- H.265 hardware video decoding available as an optional capability
- Eight alarm inputs
- One short-circuit output
- One doorbell input
- One reserved RS485 interface
- Customisable incoming call ringtones
- Sending and receiving messages
- Do Not Disturb function with user-defined timing
- Support for selected third-party applications
- Wall-mounted installation
What's in the Box
- Fanvil i507W Android indoor station
Specifications
| ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications |
| Product Code | FAN-I507W |
| Model | i507W Android Indoor Station |
| System | Android 9.0 |
| Screen | 10.1-inch 1280x800 capacitive color touch screen |
| HD Audio | Yes |
| Wideband Codecs | G.722, Opus |
| Speaker Power | 2W |
| Video Resolution | 1080P |
| Video Codec | H.264 |
| ONVIF | Yes |
| SIP Lines | 2 |
| Bluetooth | No |
| WiFi | Built-in 2.4/5G WiFi |
| Buttons | No |
| Alarm Input Interfac | 8 |
| Short Circuit Output | 1 |
| Door Bell Interface | 1 |
| RS-485 Interface | 1 |
| TF Interface | No |
| USB Port | No |
| Network | 10/100 Mbps |
| PoE | Yes |
| Installation Mode | Wall-mounted |
FAQ
What is the Fanvil i507W used for?
The Fanvil i507W is an Android SIP indoor station designed for video intercom, visitor communication, access control, remote door unlocking, alarm integration and compatible IP camera monitoring.
Does the Fanvil i507W support Wi-Fi?
Yes. The i507W supports dual-band 2.4 GHz and 5 GHz Wi-Fi.
Does the Fanvil i507W support PoE?
Yes. The i507W supports IEEE 802.3af Power over Ethernet as well as a 12V 1A DC power input.
What screen does the Fanvil i507W have?
The i507W has a 10.1-inch colour capacitive IPS touchscreen with a 1280 x 800 resolution.
Can the Fanvil i507W be used for video intercom?
Yes. It supports SIP 2.0 communication, full-duplex hands-free calling and compatible video communication with supported door stations and IP intercom systems.
Can the Fanvil i507W display IP camera video?
Yes. The i507W supports viewing video from compatible third-party IP cameras.
Can the Fanvil i507W unlock a door remotely?
Yes. The i507W supports remote door unlocking when connected to compatible access control equipment.
Does the Fanvil i507W support alarm inputs?
Yes. It provides eight alarm inputs, one short-circuit output, one doorbell input and one reserved RS485 interface for compatible security equipment.
What operating system does the Fanvil i507W use?
The Fanvil i507W uses Android 9.0 and supports selected third-party applications and application customisation.
How is the Fanvil i507W installed?
The i507W is designed for wall-mounted installation.
What network connections does the Fanvil i507W support?
The i507W supports dual-band 2.4 GHz and 5 GHz Wi-Fi and 10/100 Mbps adaptive Ethernet.
What audio codecs does the Fanvil i507W support?
Supported audio codecs include G.711A/U, G.729AB, iLBC, G.722 and OPUS.
What video formats are supported by the Fanvil i507W?
The i507W supports H.264 hardware video decoding, with H.265 available as an optional capability. Supported video call resolutions include QVGA, CIF, VGA, 4CIF, 720P and 1080P.
