Overview

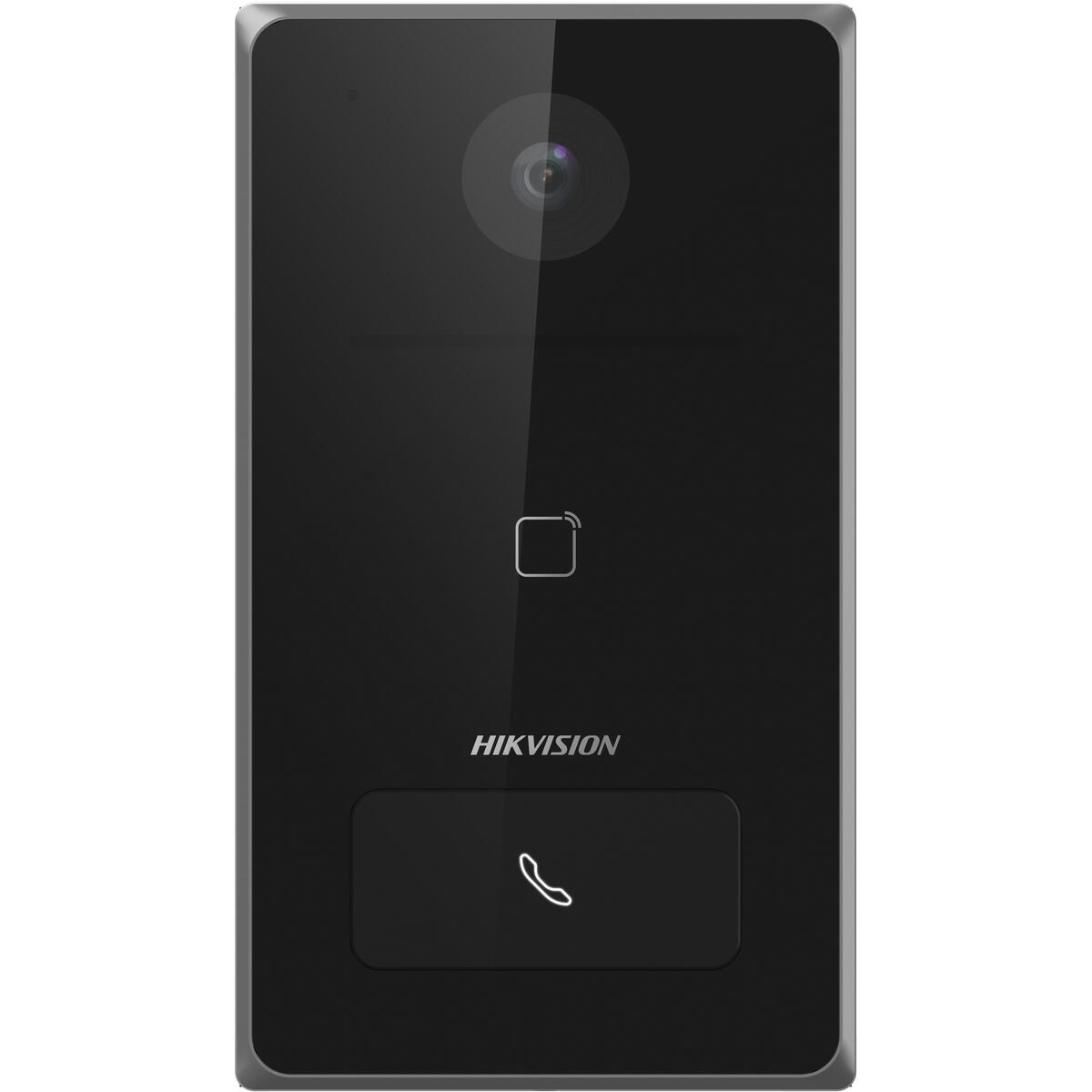

The Hikvision DS-KV6133-WME1/Surface is a compact villa door station designed for secure visitor communication and convenient access control. It combines a 2 MP camera, one-button calling, built-in card reader and PoE connectivity in a durable surface-mounted enclosure. With IP65 protection and an aluminum alloy casing, it is well suited to residential entrances and other outdoor access points.

Description

The Hikvision DS-KV6133-WME1/Surface provides a straightforward way to manage visitor communication at a villa, home or small access-controlled property. Its 2 MP camera delivers 1920 x 1080 resolution, while integrated IR illumination supports visibility at distances of up to 2.5 metres in low-light conditions.

The one-button calling design keeps visitor operation simple. Calls can also be sent directly to the Hik-Connect app without requiring a separate indoor station, providing a convenient option for users who want to answer visitors from a compatible mobile device.

A built-in card reader supports access control, with capacity for up to 10,000 cards and 2,000 users. The unit also includes relay lock control, a door contact input, exit button support and alarm inputs for broader entrance management.

Features

Hikvision Villa Door Station With 2 MP Camera
The integrated camera provides Full HD 1920 x 1080 resolution for visitor identification, with H.264 compression helping to reduce video bandwidth requirements. A built-in omnidirectional microphone and loudspeaker provide two-way audio communication.

IR illumination extends visibility up to 2.5 metres, making the door station suitable for entrances where lighting conditions can change throughout the day.

Simple Calling With Hik-Connect
Visitors can use the single call button to contact the user, while the DS-KV6133-WME1/Surface can communicate with the Hik-Connect app without the need for an indoor station. This can simplify installation and provide a practical mobile-based answering solution.

Integrated Card Access Control
The built-in card reader adds access control functionality to the door station. The system supports up to 2,000 users and up to 10,000 cards, making it suitable for residential applications and smaller properties with multiple authorised users.

Access control connections include:

• Built-in card reader
• Up to 2,000 users
• Up to 10,000 cards
• 1 relay for lock control
• 1 door contact input
• 1 exit button connection
• 4 alarm inputs
• 1 RS-485 interface
• 1 tamper input

PoE Network Connectivity
The door station supports standard PoE power, allowing power and network connectivity to be provided through a compatible Ethernet connection. Its 10/100 Mbps self-adaptive RJ-45 interface provides the wired network connection for installation and communication.

The unit also includes 2.4 GHz Wi-Fi, providing an additional wireless connectivity option where suitable.

Durable Surface-Mounted Design
Designed for surface installation, the Hikvision door station has an aluminum alloy casing and an IP65 protection rating. This provides protection against dust and water exposure, making it appropriate for outdoor entrance installations when correctly mounted.

The Linux operating system and embedded high-performance processor provide the platform for the door station's video, audio, communication and access control functions.

Key Technical Details

• Model: Hikvision DS-KV6133-WME1/Surface
• Product type: Villa door station
• Camera: 2 MP
• Main video resolution: 1920 x 1080
• IR illumination: Up to 2.5 m
• Video compression: H.264
• Microphone: Built-in omnidirectional microphone
• Speaker: Built-in loudspeaker
• Network port: 1 x RJ-45 10/100 Mbps self-adaptive
• Wireless: 2.4 GHz Wi-Fi
• Power: PoE
• Protection: IP65
• Installation: Surface mounting
• Casing: Aluminum alloy
• Operating system: Linux

Suitable Applications
The DS-KV6133-WME1/Surface is designed for villas, residential entrances, private homes and smaller access-controlled properties. Its combination of video calling, mobile app communication and card-based access control makes it a practical choice where a dedicated indoor station is not required.

For ordering and product identification, the part number / SKU is DS-KV6133-WME1/Surface.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-KV6133-WME1/Surface
System parameters
Operation system	Linux
ROM	32 MB
RAM	256 MB
Processor	Embeded high performance processor
Display parameters
Screen size	/
Operation method	/
Type	/
Resolution	/
Video parameters
Lens	1
Resolution	Main stream: 1920 x 1080p , 1280 x 720p
	Sub stream: 1280 x 720p , 640 x 480p
FOV	Horizontal:129degrees,Vertical: 75degrees
Wide dynamic range (WDR)	Support 120 dB
Supplement light	IR light, up to 2.5 m
Video compression standard	H.264
Audio parameters
Audio input	1 built-in omnidirectional microphone
Audio compression standard	G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Audio output	1 built-in loudspeaker
Audio compression bitrate	16/32/64 Kps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Capacity
User capacity	2000
Face capacity	/
Card capacity	10000
Network parameters
Network protocol	TCP/IP, RSTP
Wi-Fi	2.4GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth	/
3G/4G	/
Device interfaces
Alarm input	4
Network interface	1 RJ-45, 10/100 Mbps self-adaptive
TAMPER	1
Exit button	1
RS-485	1
USB	/
Wiegand	/
TF card	1(Reserved)
Alarm output	/
Lock control	1 relay, Max. 30 VDC 2 A
Door contact input	1
Audio output	1 external loudspeaker(Reversed)
General
Button	1 physical button
Installation	Surface mounting
Indicator	2
weight	Net weight: 0.190 kg Gross weight: 0.414 kg
Protective level	IP65
Working temperature	-40 degreesC to 53 degreesC (-40 degreesF to 127.4 degreesF)
Working humidity	10% to 95% (no-condensing)
Dimension (W x H x D)	181.6 mm x 103.6 mm x 29.5 mm (7.1" x 4.0" x 1.1")
Battery	/
Application environment	Outdoor
Power consumption	< 10 W
Language	English, Arabic, French (Europe), Russian, Spanish (Europe), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
Power supply	12 VDC, 1.5 A,IEEE802.3af, Standard PoE
