About this product
The Clearline DIN Rail Gigabit In-line Protector safeguards your Power over Ethernet (PoE) LAN devices including switches, IP cameras and wireless APs from surges, lightning and electrostatic discharge while preserving gigabit network speed and full data integrity.
Overview Summary

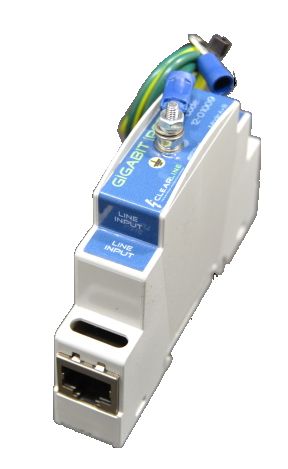

Product: Clearline DIN Rail Gigabit In-line Protector PoE Mode A+B
This compact surge protector is designed to defend PoE network equipment from damaging voltage spikes, lightning-induced surges or electrostatic discharge - ideal for installations with IP cameras, PoE switches or access points requiring reliable, uninterrupted performance. It protects all eight conductors of the Ethernet cable and supports both PoE Mode A and Mode B (compliant with IEEE 802.3af), making it a versatile inline safeguard for modern Cat5e/Cat6 network infrastructures. With negligible insertion loss and support for full 1000 Mbps data speeds, you retain gigabit performance while adding robust surge protection.
Engineered for rack or DIN-rail mounting, this protector fits neatly into network cabinets or distribution points and delivers peace of mind for sensitive data and power lines. It is backward compatible with 100Base-T networks, offering flexibility across older and newer network deployments.
Performance tier: Professional / Industrial grade
Uses: Protecting PoE cameras, PoE switches, IP network devices, LAN backbone protection, lightning surge protection
Description
The Clearline DIN Rail Gigabit In-line Protector is purpose-built for those who want to secure their PoE network infrastructure without compromising performance. Whether you operate IP security cameras, wireless access points or network switches powered via PoE, this unit intercepts dangerous surges and discharge events before they reach your sensitive equipment. It protects all eight wires in the Ethernet cable and supports both PoE power configurations - Mode A (power via data pairs) and Mode B (power via spare pairs) - ensuring compatibility with a wide range of PoE devices compliant with IEEE 802.3af standards. Its design introduces negligible insertion loss, so your network retains full gigabit throughput while enjoying enhanced protection. The compact 90 x 18 x 55 mm housing mounts easily on a standard DIN rail, making it an unobtrusive but vital part of any structured network cabinet or install. This protector is especially valuable in environments prone to lightning, electrical surges or unstable power, such as outdoor CCTV setups, remote AP installations or industrial network rooms.
Features
- Protects all 8 Ethernet lines (data + power) for full PoE surge coverage.
- Supports both PoE Mode A and Mode B - compatible with any IEEE 802.3af PoE equipment.
- Maintains gigabit Ethernet speed (1000 Mbps, Cat5e) while providing surge protection.
- Negligible insertion loss, preserving network performance and data integrity.
- Compact DIN-rail mountable housing for easy integration into network cabinets or industrial enclosures.
- Backward compatible with 100Base-T networks for flexible legacy support.
- Helps protect IP cameras, switches, routers, access points and other PoE network devices from lightning, electrostatic discharge or induced surges.
What's in the Box
- Clearline DIN Rail Gigabit In-line Protector PoE Mode A+B unit (RJ45 inline cable included)
- Mounting hardware for DIN rail installation
- User instructions / installation guide
Specifications
- Supported standard: IEEE 802.3ab / IEEE 802.3af
- Data speed: 1000 Mbps (Gigabit Ethernet, Cat5e)
- Protected lines: all 8 conductors (data and PoE power)
- Supported PoE Modes: Mode A and Mode B
- Cable pairs protected: 1-2, 3-6, 4-5, 7-8 (data pairs), plus respective pairs for PoE modes A+B
- Residual voltage - data lines: < 5 V (1.2/50 µs) upon surge
- Residual voltage - PoE power lines: < 60 V (1.2/50 µs) upon surge
- Max discharge current (coarse, line-to-earth): 2.5 kA (8/20 µs)
- Max discharge current (fine, line-to-line): 40 A (8/20 µs)
- Dimensions: 90 x 18 x 55 mm
- Weight: 0.05 kg
- Operating temperature range: -20degreesC to +70degreesC
FAQ
What types of devices is this protector suitable for?
This protector is ideal for PoE-powered devices such as IP cameras, PoE switches, wireless access points, network interface cards, and any other Gigabit Ethernet gear using PoE. It ensures surge protection without affecting performance.
Does it support both PoE power configurations?
Yes. The unit supports both PoE Mode A (power on data pairs) and Mode B (power on spare pairs), making it compatible with any IEEE 802.3af PoE device that supports both modes.
Will using this protector drop my network speed?
No. The protector maintains full gigabit data speed (1000 Mbps) and uses Cat5e compatibility, with negligible insertion loss to preserve signal integrity.
Can this unit be installed in a network cabinet?
Yes. Its compact 90 x 18 x 55 mm housing is designed for DIN rail mounting, making it easy to install in network cabinets, junction boxes, or industrial enclosures.
Does it offer protection from lightning and surges?
Yes. The device protects against induced lightning surges and electrostatic discharge, with surge discharge current ratings of up to 2.5 kA (line-to-earth) and low residual voltage on data and power lines.
