CD-RE3600

Overview

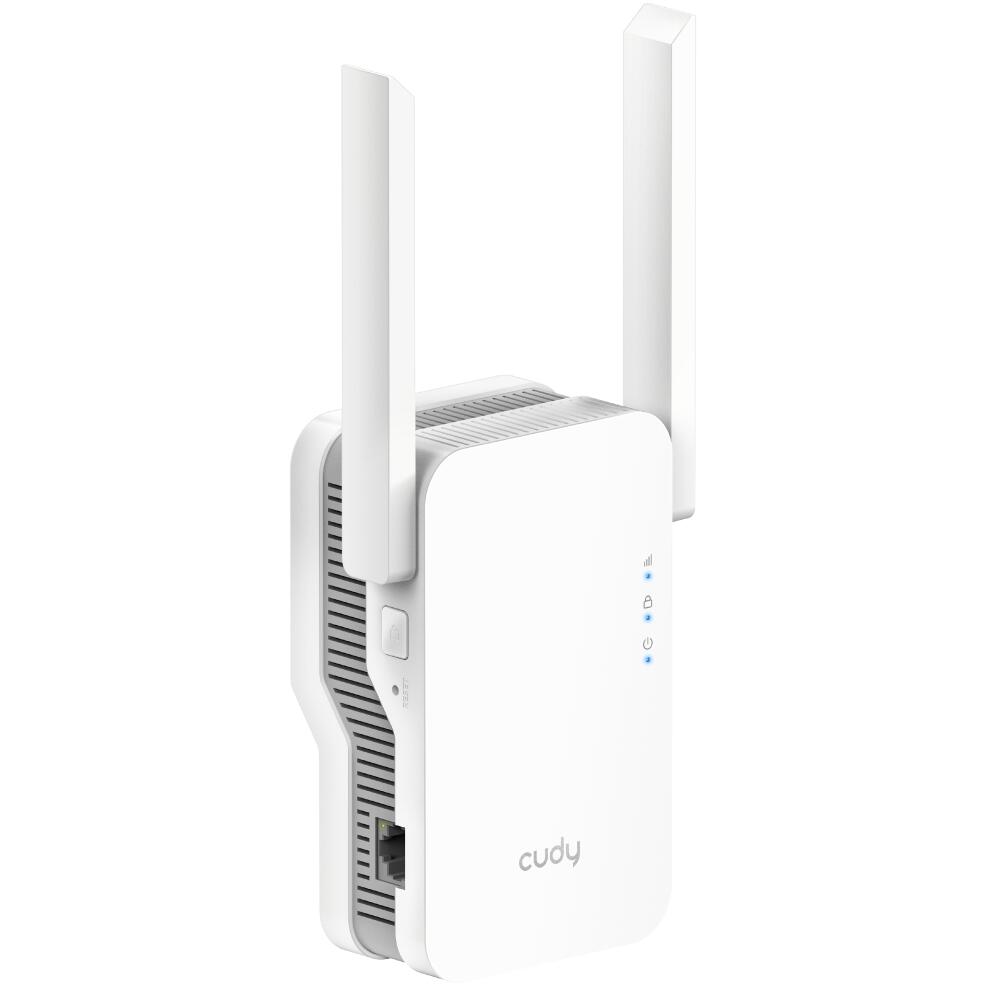

Cudy RE3600 Dual Band WiFi 7 range extender delivers fast, stable wireless coverage for homes and small offices that need stronger signal reach. Built around next generation WiFi 7 technology, it boosts existing networks with combined speeds up to 3600 Mbps while staying compatible with any standard WiFi router. A simple WPS setup, mesh support, and wired backhaul options make it a practical solution for eliminating dead zones and keeping multiple devices connected smoothly.

Description

The Cudy RE3600 is a WiFi 7 range extender designed to expand coverage, increase speeds, and improve overall network reliability. With dual band wireless performance, gigabit Ethernet connectivity, powerful quad core processing, and mesh capability, it supports up to 50 connected devices while maintaining low latency and consistent performance across a wide area.

Features

Fast WiFi 7 speeds for modern networks
Dual band WiFi 7 technology delivers strong performance across both frequencies, making it suitable for streaming, gaming, and work from home use.

• Up to 2882 Mbps on 5 GHz for high bandwidth tasks
• Up to 688 Mbps on 2.4 GHz for extended range and compatibility

Wide coverage with stable signal
Designed to extend wireless reach up to 150 meters, the RE3600 helps reduce weak spots and dropped connections.

• Two fixed WiFi antennas improve signal stability
• Optimized for multi room and multi floor environments

Easy setup and broad compatibility
This range extender works with any existing WiFi router and can be set up in minutes.

• One touch WPS pairing for quick installation
• Seamless integration as a Cudy mesh satellite

Wired and wireless backhaul options
Flexible backhaul support allows better performance in different layouts.

• Multi band simultaneous wireless backhaul
• Ethernet backhaul through the gigabit RJ45 port

Powerful internal hardware
Built with strong processing and memory resources to handle heavy network loads.

• 2 GHz quad core CPU
• 128 MB ROM and 512 MB RAM for smooth multitasking
• Supports up to 50 connected devices

Multiple ways to use it
The RE3600 adapts to different networking needs with flexible operation.

• Range extender mode to boost existing WiFi
• Access point mode for creating a new wireless network from a wired connection

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CD-RE3600
Model Version
Model Version	RE3600 1.0
CPU
CPU Details	2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage
Flash/ROM	128 MB (1 Gbit) NAND
DDR/RAM	512 MB (4 Gbit) DDR3L
Wireless
5 GHz Wi-Fi Speed	2882 Mbps
2.4 GHz Wi-Fi Speed	688 Mbps
5 GHz Wi-Fi Streams	2T2R (2x2 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2x2 MIMO)
Wi-Fi Antennas	2x Fixed
FEM or PA/LNA	5 GHz: 2x External
	2.4 GHz: 2x Internal
Range Performance	Max: 150 m (492 ft)
	Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4'')
	One concrete wall with thickness < 20 cm (7'')
Interfaces
Gigabit RJ45 Ports	1
LED	Signal Strength
	WPS
	Power
Physical Buttons	WPS Button
	Reset Button
Power Input	AC Plug
Power Input Note	EU, US, UK, AU Plug are Available
Power
Power Methods	AC
AC	100V ~ 240V
Reliability
Environment	Operating Temperature: 0 degreesC ~ 50 degreesC (32 degreesF ~ 122 degreesF)
	Storage Temperature: -40 degreesC ~ 70 degreesC (-40 degreesF ~ 158 degreesF)
	Operating Humidity: 10% ~ 90% non-condensing
	Storage Humidity: 5% ~ 90% non-condensing
Certifications
-	FCC, CE
Mechanical
Install in a Daisy Chain	Recommend to install less than 3 repeaters in a wireless chain.
Installation	Plug-In-Socket
Dimension	129.6x80x48.6 mm
	5.1x3.15x1.91 inches
Product Weight	280.6 g (9.9 oz.)
Package Content
-	RE3600
	Installation Guide
Ordering Information
Retail Package Weight	EU: 441.6 g (15.58 oz.)
Retail Package Dimension	161x120x96 mm
	6.34x4.72x3.78 inches
Units per Carton	30
Carton Net Weight	EU: 13.3 kg (29.32 lbs)
Carton Gross Weight	EU: 14.1 kg (31.09 lbs)
Carton Dimension	50.4x37.7x34.1 cm
	19.84x14.84x13.43 inches
Model Version
Model Version	RE3600 1.0
Wireless
Wi-Fi Standards	Wi-Fi 7
Max Wi-Fi Modulation	4K-QAM
Wi-Fi Efficiency	MLO
	MRU
	Puncturing
	OFDMA
	MU-MIMO
	BSS Color
Max Capacity	512
Recommended Client Upper Limit	50
Max Wi-Fi Channel Width	160 MHz
Wi-Fi Security	WPA/WPA2/WPA3
WPS	True
General
Operation Modes	Access Point
	Range Extender
Mesh	Cudy Mesh Satellite
Mesh Backhaul	Wireless Backhaul
	Wired Backhaul
Multi-Band Backhaul	True
System
LED Control	True
Local Control Method	Config Web Page
	App Control
Remote Control Method	App Control
Firmware Upgrade	Local Update
	App (Over the Air)
	Online Update
Reliability	Timed Reboot
	Backup and Restore
Dashboard
Panel	Connected Devices
	Host Network Status
	Wi-Fi Status
	LAN Status
	System Version
System
Diagnostic Tools	Ping
	Traceroute
	NSLookup
	System Log
Languages	English
	Bengali
	Catalan
	Czech
	German
	Greek
	Spanish
	French
	Hebrew
	Croatian
	Hungarian
	Italian
	Japanese
	Khmer
	Korean
	Dutch
	Norwegian
	Polish
	Portuguese
	Romanian
	Russian
	Slovak
	Swedish
	Thai
	Turkish
	Ukrainian
	Vietnamese
	Simplified Chinese
	Traditional Chinese
Dashboard
Charts	Mesh Topology
