CD-GP10

Overview

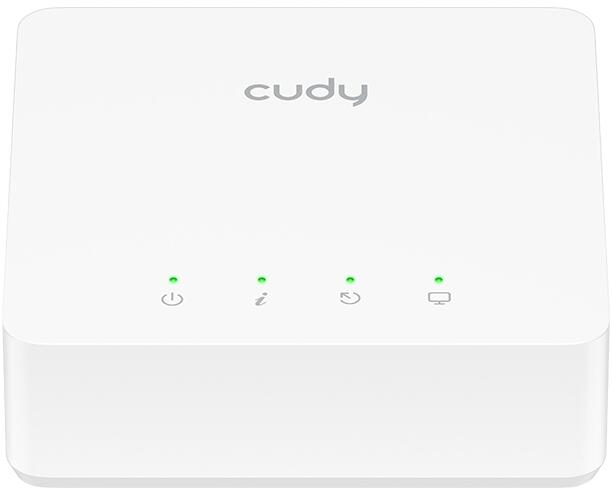

Cudy SC/AP Gigabit xPON ONT GP10 - High-Speed Dual-Mode Optical Terminal
The Cudy SC/AP Gigabit xPON ONT GP10 is a reliable and versatile solution for fiber-to-the-home (FTTH) networks. Designed for both GPON and EPON deployments, it provides fast and stable internet connections, making it ideal for home and small business users. With its compact design and easy installation, this ONT ensures seamless high-speed connectivity and efficient network management.

Description

This Gigabit xPON ONT supports dual-mode GPON and EPON, delivering downstream speeds up to 2.488 Gbps and upstream speeds up to 1.244 Gbps for GPON, and 1.25 Gbps for EPON. It includes a single SC/APC optical port and one Gigabit RJ45 Ethernet port, allowing flexible connectivity options. With OMCI, OAM, and TR069 support, remote management and monitoring are simple and efficient, reducing maintenance time and improving network performance.

Features

High-Speed Connectivity for Modern Networks

• Supports GPON and EPON for versatile deployment
• Up to 2.488 Gbps downstream and 1.244 Gbps upstream on GPON
• 1.25 Gbps downstream and upstream on EPON
• Ideal for high-bandwidth applications such as streaming, gaming, and cloud services

Compact Design with Flexible Ports

• 1x SC/APC optical port for fiber connection
• 1x Gigabit RJ45 Ethernet port for wired devices
• Efficient layout suitable for home or small office installations

Easy Remote Management

• Supports OMCI and OAM protocols for monitoring
• TR069 compatibility for remote configuration and maintenance
• Reduces technical intervention and downtime

Reliable Long-Distance Performance

• Maximum transmission distance of 20 km
• 1310 nm TX wavelength and 1490 nm RX wavelength for stable optical performance
• Ensures high-quality network access even in extended deployments

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CD-GP10
Model Version
Model Version	GP10 1.0
CPU
CPU Details	300 MHz MIPS
Memory/Storage
Flash/ROM	8 MB (64 Mbit ) NOR
DDR/RAM	64 MB (512 Mbit) DDR2
xPON
Protocols	GPON (ITU G. 984 standard , Class B+)
	EPON (802.3ah)
Speed	GPON: 2.488 Gbps Downstream / 1.244 Gbps Upstream
	EPON: 1.25 Gbps Downstream / Upstream
Wavelength	TX: 1310 nm
	RX: 1490 nm
Max Transmission Distance	20 km
Interfaces
SC/APC Port	1
Gigabit RJ45 Ports	1
LED	Power
	PON
	LOS
	LAN
Physical Buttons	Reset Button
Power Input	DC Jack
Power
Power Methods	DC
DC	12V 1A
Power Adapter	Input: 100-240V~, 50/60 Hz
	Output: 12V?1A
Reliability
Environment	Operating Temperature: 0 degreesC ~ 40 degreesC (32 degreesF ~104 degreesF)
	Storage Temperature: -40 degreesC ~ 70 degreesC (-40 degreesF ~ 158 degreesF)
	Humidity: 10% ~ 90% non-condensing
	Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Installation	Desktop
	Wall-mount
Dimension	82x82x27 mm
	3.23x3.23x1.06 inches
Package Content
Package Content	GP10
	Power Adapter
	Ethernet Cable
	Installation Guide
Ordering Information
Retail Package Dimension	106x89.5x85 mm
	4.17x3.52x3.35 inches
Mechanical
Casing Material	Plastic
Ordering Information
Units per Carton	20
Carton Dimension	459x230x205 cm
	180.71x90.55x80.71 inches
Model Version
Model Version	GP10 1.0
General
Operation Modes	Bridge
Network
DHCP	Address Reservation
	DHCP Client List
	Server
IP Versions	IPv4/IPv6
IPTV/VLAN	Bridge
	Tag VLAN
System
Local Control Method	Config Web Page
Remote Control Method	OMCI
	OAM
Firmware Upgrade	Local Update
Reliability	Backup and Restore
Languages	English
	Hindi
	Bengali
	French
	Portuguese
	Russian
	Urdu
	Indonesian
	German
	Arabic
	Spanish
	Simplified Chinese
