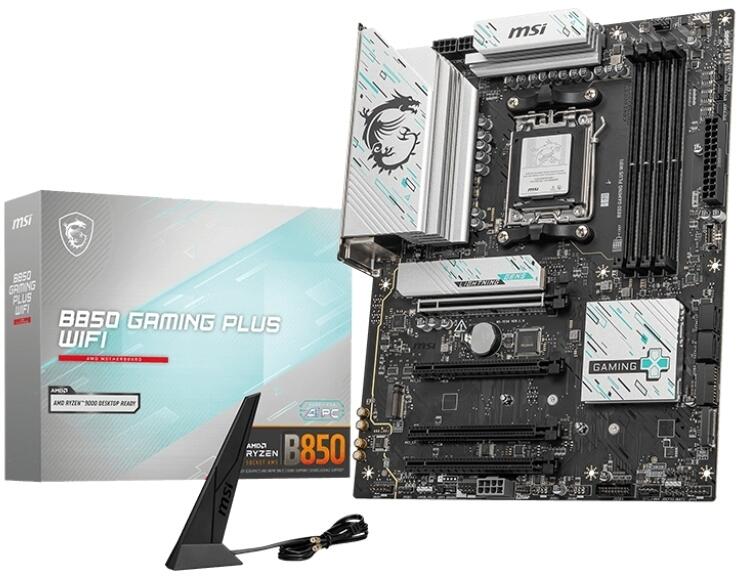

B850GAMINGPLUSWIFI MSI B850 GAMING PLUS WIFI AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard
Images are for illustrative purposes and actual product may differ.
B850GAMINGPLUSWIFI Motherboards: AMD Socket AM5 MotherboardMSI
B850GAMINGPLUSWIFI information and overview
MSI B850 GAMING PLUS WIFI AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Memory slots, 1x DisplayPort, 4x PCI-e x16 slot, PCI_E1 Gen PCI-e 5.0 supports up to x16, PCI_E2 Gen PCI-e 3.0 supports up to x1, PCI_E3 Gen PCI-e 4.0 supports up to x4, PCI_E4 Gen PCI-e 3.0 supports up to x1, 7.1-channel High Definition Audio, 3x M.2 slots supports up to PCI-e 5.0 x4, 4x SATA 6G Ports, USB 5Gbps Type-A, USB 5Gbps Type-C, USB 10Gbps Type-A, USB 10Gbps Type-C, Realtek 8126vb 5G LAN, Wi-Fi 7, Bluetooth 5.4, 4x EZ Debug LED, Clear CMOS Button, Audio connectors, Flash BIOS Button, S/PDIF-out
Specifications & more information about B850GAMINGPLUSWIFI, Motherboards: AMD Socket AM5 Motherboard manufactured by MSI
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Overview:B850 GAMING PLUS WIFI - Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 5G LAN with Full-speed Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Features:MSI DRIVER UTILITY INSTALLEROnce connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more EZ DEBUG LEDOnboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again. HEADER WITH DIFFERENT COLORTo better differentiate between pin headers for different purposes, mark the pump sys header and ARGB headers in white and PCIe 8-pin header in gray, enabling users to manage cables more efficiently. IDENTIFY M.2 SIGNAL SOURCEThe motherboard has a detailed M.2 signal source list printed on it, allowing you to easily identify them. IDENTIFY USB SPEEDChange the way USB speeds are described to numbers (rather than the confusing names like USB 3.2 Gen 2x2 ) for better understanding EZ OoverclockingWhile overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings. - GAME BOOST One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level.
- AI BOOST An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower. *Enabled with compatible processors.
- EXPO / A-XMP Choose from preset EXPO and A-XMP profiles to automatically overclock compatible DDR memory for optimal performance.
A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimizations. The MSI Center offers a clean, minimal interface to customize and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance. Specifications: | ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | Specifications | | Product Code | B850GAMINGPLUSWIFI | | Chipset | AMD B850 | | CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors | | Socket AM5 | | Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB | | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s | | Ryzen 9000 Series Processors max. overclocking frequency: | | 1DPC 1R Max speed up to 8200+ MT/s | | 1DPC 2R Max speed up to 6400+ MT/s | | 2DPC 1R Max speed up to 6400+ MT/s | | 2DPC 2R Max speed up to 4800+ MT/s | | Supports AMD POR Speed and JEDEC Speed | | Supports Memory Overclocking and AMD EXPO TM | | Supports Dual-Channel mode | | Supports Non-ECC, Un-buffered memory | | Supports CUDIMM, Clock Driver bypass mode only | | * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. | | Onboard Graphics | 1x DisplayPort | | Support DisplayPort 1.2, maximum resolution of 4K 60Hz | | *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | | Slot | 4x PCI-E x16 slot | | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) | | PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) | | PCI_E1 slot | | Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) | | Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) | | Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) | | * PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot. | | Audio | Realtek ALC897 | | 7.1-Channel High Definition Audio | | Storage | 3x M.2 | | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | | M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices | | M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices | | 4x SATA 6G | | M2_1 slot | | Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) | | Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) | | *Please refer to the manual for M.2 SSD heatsink restrictions. | | RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | | USB | 4x USB 2.0 (Rear) | | 4x USB 2.0 (Front) | | 1x USB 5Gbps Type A (Rear) | | 4x USB 5Gbps Type A (Front) | | 1x USB 5Gbps Type C (Front) | | 1x USB 10Gbps Type A (Rear) | | 2x USB 10Gbps Type C (Rear) | | LAN | Realtek 8126VB 5G LAN | | Internal IO | 1x Power Connector(ATX_PWR) | | 2x Power Connector(CPU_PWR) | | 1x Power Connector(PCIE_PWR 8pin) | | 1x CPU Fan | | 1x Combo Fan (Pump_Sys Fan) | | 4x System Fan | | 1x EZ Conn-header (JAF_1) | | 2x Front Panel (JFP) | | 1x Chassis Intrusion (JCI) | | 1x Front Audio (JAUD) | | 1x Com Port (JCOM) | | 1x Tuning Controller connector(JDASH) | | 3x Addressable V2 RGB LED connector (JARGB_V2) | | 1x RGB LED connector(JRGB) | | 1x TPM pin header(Support TPM 2.0) | | 4x USB 2.0 ports | | 4x USB 5Gbps Type A ports | | 1x USB 5Gbps Type C ports | | WIRELESS LAN & BLUETOOTH | Wi-Fi 7 Solution | | The Wireless module is pre-installed in the M.2 (Key-E) slot | | Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps | | Supports 802.11 a/ b/ g/ n/ ac/ ax/ be | | Supports Bluetooth 5.4**, MLO, 4KQAM | | * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. | | ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. | | LED FEATURE | 4x EZ Debug LED | | BACK PANEL PORTS | Clear CMOS Button | | USB 10Gbps (Type-A) | | USB 2.0 | | 5G LAN | | Wi-Fi / Bluetooth | | Audio connectors | | Flash BIOS Button | | DisplayPort | | USB 10Gbps (Type-C) | | USB 10Gbps (Type-C) | | USB 5Gbps (Type-A) | | S/PDIF-OUT | | OPERATING SYSTEM | Support for Windows 11 64-bit | | PCB Info | ATX | | 243.84mmx304.8mm |
Similar Motherboards: AMD Socket AM5 Motherboard
The best price and guaranteed service and backup from official computer suppliers in South Africa for the B850GAMINGPLUSWIFI MSI B850 GAMING PLUS WIFI AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard. Available from this online computer store delivering door-to-door in Johannesburg, Cape Town, Port Elizabeth, Pretoria, Pietermaritzburg, Polokwane, Durban and all over South Africa. Find related B850GAMINGPLUSWIFI MSI B850 GAMING PLUS WIFI AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard products in our Motherboards: AMD Socket AM5 Motherboard Category for even more options. Read reviews and find out about B850GAMINGPLUSWIFI MSI B850 GAMING PLUS WIFI AMD Ryzen 7000 / 8000 / 9000 Series Socket AM5 ATX Motherboard. Discounts, specials and cheap prices only at ComX Computers.
| |
