| Specifications |

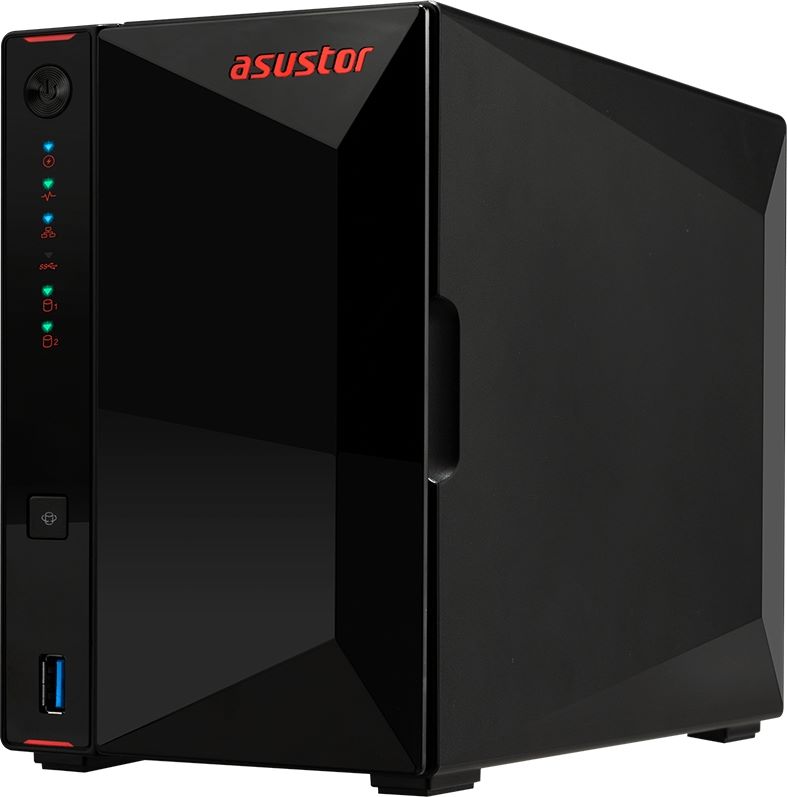

| Product Code | AS5202T |
| Hardware Specifications | CPU: Intel Celeron J4005 Dual-Core 2.0 GHz (burst up 2.7GHz) Processor |
| AES-NI hardware encryption engine integrated |
| Memory: 2GB SO-DIMM DDR4 |
| Memory Module Pre-installed: 2GB (1 x 2GB) |
| Total Memory Slots: 2 |
| Memory Expandable up to: 8GB (2 x 4GB) |
| Support mixed capacity |
| Flash Memory: 4GB eMMC |
| HDD: 2 x SATA3 6Gb/s, 3.5"/2.5" HDD/SSD |
| Maximum Internal Raw Capacity: 28 TB (14 TB HDD X 2, Capacity may vary by RAID types) |
| Maximum Drive Bays with Expansion Unit: 14 |
| Maximum Raw Capacity with Expansion Units : 196 TB (14 TB HDD X 14, Capacity may vary by RAID types) |
| Expansion: USB 3.2 Gen 1 x3 |
| Network: 2.5 Gigabit Ethernet x 2 |
| Output: HDMI 2.0a x1 |
| System Fan: 70mm x 1 |
| Infrared Receiver |
| Power Supply Unit / Adapter: 65W x1 |
| Input Power Voltage: 100V to 240V AC |
| Certification: FCC, CE, VCCI, BSMI, C-TICK |
| Operation | Power Consumption: 17 W (Operation) |
| 10.5 W (Disk Hibernation) |
| 1.3 W (Sleep Mode) |
| Noise Level: 18.6dB (HDD idle) |
| Operation Temperature: 0°C~40°C (32°F~104°F) |
| Humidity: 5% to 95% RH |
| ASUSTOR Hightlight | System Migration |
| EZ Connect |
| Dr.ASUSTOR |
| 2-way Backup |
| Task Monitor |
| Eco-Friendly Design | System Automatically Enters Sleep Mode (Schedule S3) |
| Auto-Standby for Both Internal and External Disks |
| Auto Fan Control |
| LED Night Mode |
| Power Schedule: On, Off, Restart, and Sleep. |
| Size and Weight | Size: 170(H) x 114(W) x 230(D) mm |
| Weight: 1.6 kg / 3.53 lbs |
| Software & Features |
| Operating System | ADM 3.4 Onwards |
| Supports Online Firmware Updates |
| Supported OS | Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012 |
| Mac OS X 10.6 Onwards |
| UNIX, Linux, and BSD |
| Supported Browsers | Internet Explore 11 Onwards |
| FireFox |
| Chrome |
| Safari |
| Microsoft Edge |
| Network Protocols | CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
| File System | Internal Disk: EXT4, Btrfs |
| External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT, Btrfs |
| File Explorer | Web-based File Management |
| ISO File Mounting |
| Share Links |
| Task Monitor |
| Browse Files on Local PC |
| Thumbnail Previews |
| Data Access via External Optical Drive |
| Supports video playback |
| Storage Management | Volume Type: Single disk, JBOD, RAID 0, RAID 1 |
| Support for Online RAID Level Migration |
| iSCSI/IP-SAN | Maximum Targets: 256 |
| Maximum LUNs: 256 |
| Maximum Snapshot Versions of a Single LUN: 256 |
| Target Masking |
| LUN Mapping |
| ISO File Mounting |
| Supports MPIO |
| Persistent (SCSI-3) Reservations |
| Customized Sign In Page | 2 Different Template Choices |
| Customizable Title, Imageand Background |
| Image Import Function |
| Disk Management | Scheduled Bad Block Scans |
| Scheduled S.M.A.R.T Scans |
| Energy Control | Configurable Disk Hibernation and Sleep Mode Wait Time |
| Configurable Time Period for Sleep Mode Activation |
| Automatic Sleep |
| Network | TCP/IP (IPv4 & IPv6) |
| Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover |
| Jumbo Frame (MTU) |
| VLAN |
| EZ Connect |
| Wireless Network |
| DDNS and EZ-Router |
| Supports Wake-on-LAN (WOL) |
| Supports Wake-on-WAN (WOW) |
| Backup Solutions | Rsync (Remote Sync) Backup |
| Cloud Backup |
| FTP Backup |
| External Backup |
| One Touch Backup |
| EZ Sync |
| Snapshots | Btrfs Snapshots |
| 256 snapshots |
| iSCSI LUNs |
| Support model: AS31/32/40/50/51/52/53/61/62/63/64/70. Snapshot Center will not display Volume snapshots information in other models. |
| System Administration | Log Type: System Log, Connection Log, File Access Log |
| Real-time Online User Monitor |
| Real-time System Monitor |
| User Quota |
| Virtual Drive (ISO Mounting, Maximum 16) |
| UPS Support |
| Network Recycle Bin | Share folder-based |
| Maintains original directory structure and file permission |
| On-click restore |
| Supports scheduled emptying |
| Filtering rules |
| 1. File size |
| 2. File extension |
| Access Control | Maximum Number of Users: 4096 |
| Maximum Number of Groups: 512 |
| Maximum Number of Shared Folders: 512 |
| Maximum Number of Concurrent Connections: 512 |
| Supports Windows Active Directory |
| Supports Windows Active Directory / LDAP |
| ACL | Provides both Windows ACL and Linux ACL permission configuration methods |
| Can enable Windows ACL for specific shared folders |
| Comprehensive support for Windows' 13 types of advanced permission settings |
| Can view Windows ACL permission settings from within ADM |
| Supports local users and groups |
| Exclusive permission reset function allows users to quickly restore default permissions |
| SSD Cache | SSD-like performance with traditional hard drives |
| supports read-only access and read-write cache mode |
| Supported Models: AS31/32/50/51/52/53/61/62/63/64/70 series |
| Security | AES 256-Bit Encryption |
| Firewall: Prevent Unauthorized Access |
| Alert Notifications: E-mail, SMS |
| Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH |
| Built-in Hardware Encryption Engine: AS10/31/32/40/52/53/6/61/62/63/64/70 Series |
| Network Defender | Auto black list |
| Trusted list |
| Black/White list |
| Supports IP/IP range/geolocation |
| External Devices | Supports USB External Storage Devices |
| USB Wi-Fi Dongle Support |
| Bluetooth Dongle/Speaker Support |
| USB Printer Support |
| USB DAC/IR Receiver/Keyboard/Mouse Support |
| CD ROM Drive/DVD ROM Drive/Blu-Ray ROM |
| Featured Apps |
| Antivirus | Scheduled Scans |
| Automatic Virus Definition Updates |
| Quarantine Infected Files |
| ASUSTOR Portal(HDMI Local Output) | Supports Output for 4 Channels of Megapixel IP Camera Video Feeds |
| Support Chrome / Chromium browsers. |
| Downloads from Chrome/Chromium Automatically Saved to the NAS |
| Power Control Settings: Power on, Sleep, Restart and Wake via Remote |
| Customizable ASUSTOR Portal Desktop Wallpaper |
| Add Shortcuts to Favorite Websites |
| Increased TV Compatibility via Overscan and Resolution Settings |
| Max. Resolution: |
| ASUSTOR Portal comes preloaded with Netflix and Youtube. Users can install the supplementary URL-Pack to get access to even more popular video streaming sites such as Plex, Vimeo and Youku. |
| After installing URL-Pack-Social, users will be able to choose between social media sites such as Facebook, Google+, Hangouts, Pinterest, Twitter, Linkedin, WhatsApp and Instagram. |
| VirtualBox | Virtual Machines are Able to run the Following Operating Systems: Windows, Linux, Solaris, Mac OS X |
| Virtual Machine Import Format: OVF |
| Virtual Machine Export Format: OVF 0.9, OVF 1.0, OVF 2.0 |
| Virtual Machine Snapshots |
| Virtual Machine HDMI Audio Output |
| Physical NAS Network Port can be Designated for use by Specific Virtual Machine |
| Linux Center | Integrate NAS operating system with Linux |
| Easy installation with just one touch |
| HDMI output on command |
| Download Center | Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads |
| Torrent Search |
| Choose Files Before a BT Task Starts |
| Customizable Download Schedule |
| Bandwidth Control |
| RSS Subscription and Automatic Downloading (Broadcatching) |
| ASUSTOR Download Assistant for Windows & Mac |
| AiDownload for Android with Push Notification |
| Smart Download Function |
| DataSync for Microsoft OneDrive | Each ADM account is able to individually log into a OneDrive account |
| Supports file filter and bandwidth limitation |
| Supported backup methods: |
| Sync |
| Directly upload files to OneDrive from NAS |
| Directly download files from OneDrive to NAS |
| DropBox | Each ADM Account is Able to Individually Log in to One Dropbox Account |
| Supported Backup Methods: |
| Sync |
| Dropbox to NAS |
| NAS to Dropbox |
| FTP Explorer | Directory Structure View with Drag & Drop Transfers |
| Task Monitor |
| Stopping of Transmission Task & Resumption of Connection |
| Encrypted Connections: Explicit over TLS, Implicit over TLS |
| FTP Site Manager |
| Bandwidth Control |
| Maximum Simultaneous Transfer Control |
| Google Drive | Each ADM Account is Able to Individually Log in to One Google Account |
| Supported Backup Methods: |
| Sync |
| Directly Upload Files to Google Drive from NAS |
| Directly Download Files from Google Drive to NAS |
| HiDrive | Support OneDrive and OneDrive Business |
| Each ADM Account is Able to Individually Log in to One HiDrive Account |
| Supported Backup Methods: |
| Directly Upload Files to HiDrive from NAS |
| Directly Download Files from HiDrive to NAS |
| Supported Protocols: |
| Rsync |
| FTP |
| FTPS |
| SFTP |
| Rsync + SSH |
| hubiC | Each ADM Account is Able to Individually Log in to One hubiC Account |
| Supported Backup Methods: |
| Sync |
| Directly Upload Files to hubiC from NAS |
| Directly Download Files from hubiC to NAS |
| Yandex | Each ADM Account is Able to Individually Log in to One Yandex Account |
| Supported Backup Methods: |
| Sync |
| Directly Upload Files to Yandex from NAS |
| Directly Download Files from Yandex to NAS |
| LooksGood | Built-in three main video library categories (Movies, TV Shows, Home Movies) and smart video sorting management |
| Efficient Global Search function allows for searches by keywords followed by the execution of more detailed searches according to the Movies, TV Shows, Home Movies categories and parameters such as actors, director, year, genre, writer, and title |
| Attractive poster wall and thumbnail display |
| Automatic production of video poster thumbnails |
| Centralized management and ability t o configure order of favorites and playlist history |
| System administrator can configur e video library and editing permissions according to user |
| Can configure access permissions to share with |
| friends and family |
| Multimedia conversion function |
| Self-defined smart folder for video conversions |
| Supports digital TV recordings via digital TV dongles |
| Easy streaming with Chromecast and DLNA |
| Support to watch videos in Apple TV via AiVideos tvOS version |
| iTunes Server | For iTunes on Mac & Windows |
| Supports AirPlay |
| Supports iOS Remote Pairing |
| Supported Audio Formats: AIF, M4A (AAC & Apple Loseless), M4P, M4R, MP3, WAVâµ |
| Supported Video Formats: M4V, MOV, MP4 |
| Supported Playlist Formats: M3U, WPL |
| Mail Server | Each ADM Account can Become an Independent Email Account |
| Email Activity Monitor (Over 1 Week, 1/3/6 Months) |
| Provides SMTP, IMAP and POP3 Mail Protocols |
| Supports SMTP Relay and Verification |
| SMTP-SSL Secure Connections |
| Spam Filter and Black List Settings |
| Antivirus Scanning for Emails |
| Email Alias Creation and Mapping |
| Monitoring of Mail Queue |
| Mail Service Activity Log |
| Exclusive Email Backup Mechanism |
| Auto-Forwarding and Auto-Response Protocols |
| Photo Gallery | "Album" and "Browse" Viewing Modes |
| Manage Photo Album Access Rights: Public Access, Restricted to Certain Accounts, Album Password |
| Multi-level Folder Structure Support |
| Supports Tagging of Photos |
| Intuitive Sorting and Comprehensive Search Function |
| Adjustable Photo Wall Browsing Scales |
| Automatic Image Rotation |
| One-click Sharing to Social Media (Facebook, Google+, Twitter, Plurk, email) |
| Intuitive Drag and Drop Management |
| Slideshow Viewing Mode |
| Provides Comment Function for Users to Interact with Each Other. |
| Supports a Wide Range of Image Formats: JPG/JPEG, GIF, PNG, BMP, TIFF, RAW |
| Supports Video Playback |
| Surveillance Center | Up to 36 channels in 720p on single live view display |
| On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps |
| Up to 4 channels of synchronous and non-synchronous playback with audio |
| Intelligent video analytics including motion detection and foreign object detection |
| Supported Browsers: Windows Internet Explorer, Microsoft Edge, Firefox, Mac Safari, Mac Firefox ESR |
| Event notification supports SMS, E-mail, and mobile push notification |
| Automated event action rules |
| Role-based access control |
| RTSP streaming server (video and audio) |
| AiSecure mobile app for iOS and Android with Push notification |
| ONVIF 2.4, Profile S certified |
| CMS Lite supports connect up to 128 IP Cameras from 32 NAS |
| Two different camera license packages are offered: single channel and 4 channels. |
| Maximum IP Cam (4 Free Licenses, Additional Licenses to be Purchased) |
| Minimum PC Client Requirements |
| CPU: i5/i7 or above |
| RAM: DDR3 4G or above |
| Operating system Windows 7 and onward, Mac OS X |
| Windows browsers: Internet Explorer, Microsoft Edge, Chrome, FireFox |
| Mac browsers: Safari 7.0, Firefox |
| Display resolution: 1280x800 pixels or higher for best user experience |
| Network interface: Gigabit x1 |
| Independent graphics card is highly recommend |
| SoundsGood | Import Personal/Public Music Collection |
| Personal/Public Music Collection Permission Control |
| Playlist Editor |
| ID3 Tag Editor |
| Local Speaker Support: HDMI, USB, Audio Jack |
| Supported Audio Formats for Browser: MP3, WAV, Ogg |
| Supported Audio Formats for Transcoding Through Browser: AIFF, Flac |
| Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac |
| ASUS DAC Support |
| Takeasy | Download from YouTube, Vimeo, Twitch and More |
| Selectable Video Type and Quality |
| Automatic Downloads with YouTube or Twitch Subscriptions |
| Preview Downloads in Progress |
| Online Playback |
| UPnP Media Server | Supports PS3 and other Digital Media Player Capable Devices |
| Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC) |
| Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F) |
| VPN Client | Supported VPN Protocols: PPTP, OpenVPN, L2TP/IPsec |
| Transmission Package Monitor |
| PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2 |
| PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit) |
| OpenVPN Port Control |
| OpenVPN Link Compression |
| VPN Server | Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec |
| View Current Connections & Ability to Disconnect Suspicious Connections |
| Comprehensive Connection Log |
| RADIUS Server | Centralized management of wireless network certification |
| Using WPA-Enterprise or WPA2-Enterprise encryption |
| Must be combined with a wireless router that supports RADIUS authentication |
| SNMP Server | Supports SNMP v1, v2c, v3 and trap |
| ASUSTOR NAS MIB provided |
| Syslog server | Supports standard syslog protocol |
| Graphical log monitoring by time and device |
| Supports TCP and UDP |
| Auto log archiving |
| User-defined email notification |
Up
Down
Mobile store
