AJX-M-MCOP

Overview

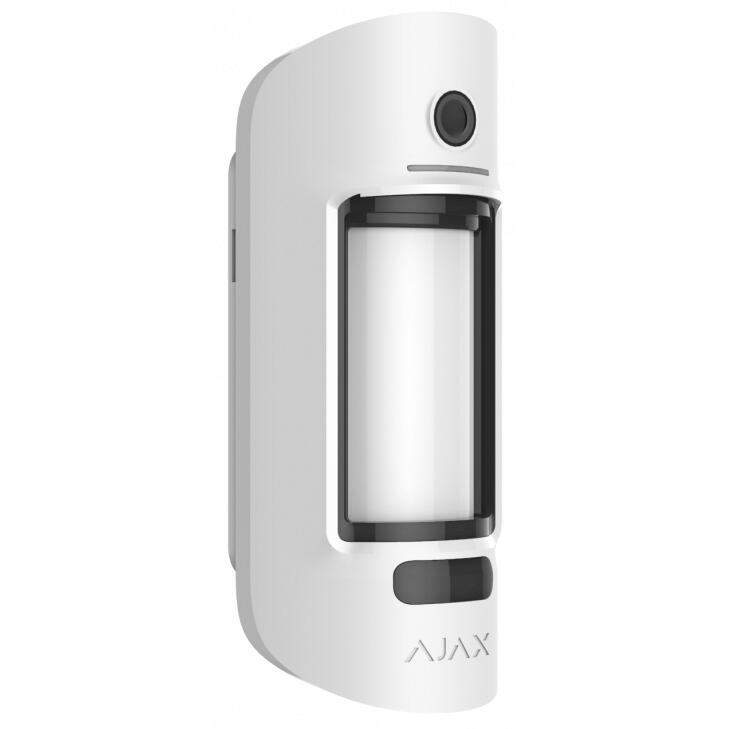

Ajax MotionCam (PhOD) Jeweller - White Wireless Outdoor Motion Detector with Photo on Demand
The Ajax MotionCam (PhOD) Jeweller is a high-performance wireless outdoor motion detector designed for reliable security in any environment. Equipped with a dual PIR sensor system, it accurately detects motion up to 12 meters with a wide horizontal and vertical coverage. This detector minimizes false alarms while providing rapid visual verification through instant photo capture on alarm or on demand. With pet immunity, infrared night vision, and weather-resistant construction, it ensures comprehensive protection for your property.

Description

Ajax MotionCam Outdoor combines advanced motion detection with real-time photo verification. Users can receive alarm-triggered images or request photos through the mobile app at any time, allowing immediate assessment of security events. Its HDR camera and IR backlight deliver clear images in all lighting conditions, while the LISA algorithm analyzes signals from dual PIR sensors to reduce false alarms. Wireless communication via Jeweller and Wings ensures alarm notifications and photo delivery within seconds, even over long distances of up to 1,700 meters. The device is suitable for indoor and outdoor use, withstanding temperatures from -25degrees C to +60degrees C, and includes a protective hood against rain and snow.

Features

Reliable Motion Detection
MotionCam Outdoor uses two independent PIR sensors and the LISA algorithm to differentiate real threats from environmental interferences. Correlation and spectral analysis of sensor signals trigger alarms only when genuine motion is detected. The system can detect movement at speeds from 0.3 to 2.0 m/s and is adjustable for sensitivity, with pet immunity up to 80 cm.

Instant Visual Verification
The built-in camera provides a quick view of the situation. It captures series of photos automatically when motion is detected, on request from the app, by schedule, or when connected detectors trigger alarms. Animated sequences help users and security personnel assess events in real time. The detector supports photo delivery in less than 9 seconds for quick incident response.

Enhanced Night and Weather Performance
Equipped with an HDR camera and infrared backlight, MotionCam Outdoor delivers high-quality images even in complete darkness. The device is resistant to extreme temperatures, rain, and snow, with a hood protecting the camera and anti-masking sensors. Its IP55-rated enclosure ensures reliability in any weather.

Data Privacy and Secure Access
All captured images are encrypted and stored securely on Ajax Cloud servers, accessible only to authorized hub users. Access rights can be configured for individual users to control who can view, request, or share visual data. Detailed logs provide notifications for every photo request and capture.

Advanced Wireless Technology
MotionCam Outdoor uses Jeweller for rapid alarm notification and Wings for photo transmission, ensuring reliable two-way encrypted communication. Even with weak signals, the first photo reaches the hub within seconds. Installation is straightforward with a SmartBracket mounting panel, and the device can operate up to 1,700 meters from the hub or range extender.

Anti-Tampering and System Integrity
The detector includes masking sensors, tamper alerts, device authentication, and frequency-hopping radio communication to prevent sabotage, forgery, and jamming. Notifications are delivered within 0.15 seconds, giving monitoring stations and users real-time awareness of any security events.

Flexible Installation for Large Facilities
Using the ReX 2 Jeweller range extender, the communication range can be doubled to 3,400 meters, allowing large properties to be secured efficiently. Up to five extenders can provide coverage across 35 km² without affecting system reliability.

Specifications

• Detection: dual PIR sensors, 12 m range, horizontal 88.5degrees, vertical 80degrees, sensitivity adjustable, pet immunity up to 80 cm, false alarm filter (LISA)
• Camera: HDR, IR backlight, 1-5 photos per series, resolution 320x176 px or 640x352 px, photo delivery 9-20 s
• Communication: Jeweller (alarms), Wings (photos), two-way encrypted, 1,700 m range, frequency hopping
• Power: 4 x CR123A batteries, up to 3 years
• Enclosure: 206 x 108 x 93 mm, 470 g, IP55 protection, operating -25degrees C to +60degrees C, up to 95% humidity
• Accessories included: protective hood, SmartBracket mounting panel, Quick Start Guide

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AJX-M-MCOP
Compatibility
Compatible hub models	Hub 2 (2G)
	Hub 2 (4G)
	Hub 2 Plus
	Hub Hybrid (2G)
	Hub Hybrid (4G)
Compatible range extenders	ReX 2
Communication
Jeweller communication technology	Proprietary wireless communication technology to transmit alarms and events.
	It features:
	Two-way communication.
	Advanced anti-sabotage.
	Block encryption featuring a dynamic key.
	Instant notifications.
	Remote configuration via the Ajax apps.
Frequency bands	866.0 - 866.5 MHz
	868.0 - 868.6 MHz
	868.7 - 869.2 MHz
	905.0 - 926.5 MHz
	915.85 - 926.5 MHz
	921.0 - 922.0 MHz
	Depends on the sales region.
Maximum effective radiated power (ERP)	up to 20 mW
Radio signal modulation	GFSK
Radio signal range	up to 1,700 m
	Between detector and hub or range extender in an open space.
	Calculate radio signal range at the facility
Encrypted communication	All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping	Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology	Proprietary wireless communication technology to transmit photo verifications.
	It features:
	Two-way communication.
	Block encryption featuring a dynamic key.
	Advanced anti-sabotage.
	Data package reloading in case of transmission errors.
	Photo delivery check.
Frequency bands	866.0 - 866.5 MHz
	868.0 - 868.6 MHz
	868.7 - 869.2 MHz
	905.0 - 926.5 MHz
	915.85 - 926.5 MHz
	921.0 - 922.0 MHz
	Depends on the sales region.
Radio signal range	up to 1,700 m
	Between detector and hub or range extender in an open space.
	Calculate radio signal range at the facility
Radio frequency hopping	Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive elements	2 x PIR sensor
Motion detection distance	up to 3-15 m
	When installed at a height of 0.8-1.3 m. Adjusted with a scrollbar on the device enclosure.
Motion detection angles	horizontal - 90degrees
	vertical - N/A
Motion detection speed	from 0.3 to 2.0 m/s
	The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity	3 levels
	Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity	weight: not relevant
	height: up to 80 cm
False alarm prevention	LISA
	SmartDetect
	Software algorithms.
Temperature compensation	Effective motion detection at temperatures from -25degreesC to +60degreesC.
Photo verification
Photo by alarm	A built-in camera is activated if the detector is armed, and motion is detected.
Photo on demand	User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.
Photo by scenario	A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.
Photo resolution	640 x 352 px
	320 x 176 px (by default)
	Adjusted by PRO or user with admin rights in the Ajax app.
Camera viewing angles	horizontal - 105degrees
	vertical - 50degrees
IR backlight	For night photography and low light conditions.
Pictures in a series	from 1 to 5 images with resolution of 320 x 176 px
	from 1 to 3 images with resolution of 640 x 352 px
	Adjusted by PRO or user with admin rights in the Ajax app.
Photo delivery time	up to 9 s - 320 x 176 px resolution
	up to 20 s - 640 x 352 px resolution
	When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2-3 bars. Photo delivery time when the detector is connected via range extender is available here.
TV distortion (EBU standard)	barrel - 17%
Recommendations
Recommendations	It is recommended to install the detector at a height of 0.8-1.3 m.
	The device is designed for indoor and outdoor use.
Anti-sabotage protection
Anti-masking system	The detector is equipped with masking sensors reacting to hindering, covering and painting the lens.
Tampering alarm	Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against forgery	device authentication
Communication loss detection	within 36 s
	Detection time depends on the Jeweller settings.
Power supply
Power supply	4 x CR123A battery
	Up to 3 years of battery life.
Enclosure
Dimensions	206 x 108 x 93 mm
Weight	470 g
Operating temperature range	from -25degreesC to +60degreesC
Operating humidity	up to 95%
Protection class	IP55
Colour
Colour	White
Complete set
Complete set	MotionCam Outdoor (PhOD) Jeweller
	Hood
	To protect the camera and masking sensors from snow and rain.
	SmartBracket mounting panel
	Installation kit
	4 x CR123A battery
	Pre-installed.
	Quick Start Guide
