AJX-M-MCIP

Overview

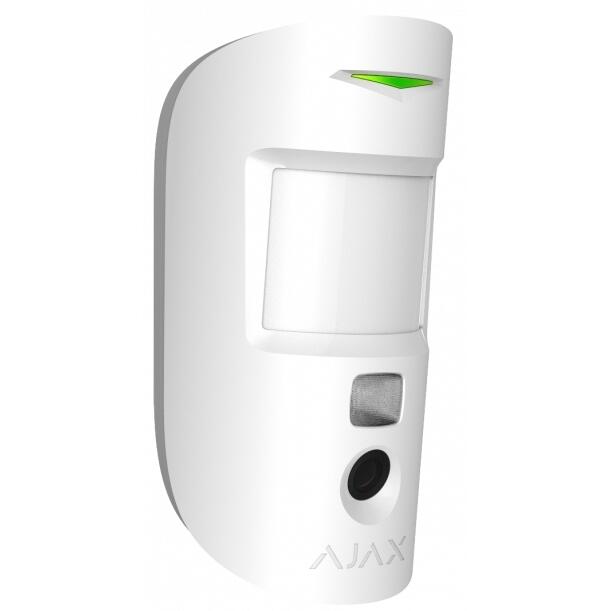

Ajax MotionCam (PhOD) Jeweller - White Wireless Motion Detector with Photo on Demand
The Ajax MotionCam (PhOD) Jeweller is a cutting-edge wireless motion detector designed to enhance security with instant visual verification. Equipped with Photo on Demand and alarm-triggered photo capabilities, it captures human motion with precision. Its advanced PIR sensor detects movement up to 12 meters away, with horizontal and vertical coverage of 88.5degrees and 80degrees, respectively. Ideal for homes or offices, the detector provides pet immunity, infrared capabilities for low-light conditions, and reliable battery-powered operation.

Description

The MotionCam (PhOD) Jeweller combines intelligent motion detection with high-quality image capture. Using a specialized Fresnel lens and SmartDetect software, it distinguishes between humans, pets, and environmental thermal noise, minimizing false alarms. Users can take on-demand photos through the Ajax app or receive automatic snapshots when motion or fire detectors are triggered. The built-in IR backlight ensures clear images even in complete darkness. Pre-installed batteries last up to 5 years, and encrypted two-way wireless communication via Jeweller and Wings technologies guarantees instant alerts and secure data transmission. The device is easy to install with the SmartBracket panel and integrates seamlessly with Hub 2, Hub 2 Plus, or Hub Hybrid systems.

Features

Intelligent motion detection for fewer false alarms
The detector instantly identifies human motion while ignoring pets and thermal noise. Its Fresnel lens captures detailed thermal patterns, and SmartDetect software analyzes infrared data for accurate detection. Combined with professional installation, this ensures high reliability and precise alerts.

Capture the situation on demand
Users can view their property at any time with a single click in the Ajax app. MotionCam automatically takes photos during alarms, fire detector triggers, or scheduled scenarios, providing visual verification for security teams and homeowners alike.

High-quality images in any lighting
HDR technology enhances photo clarity by balancing light and contrast, ensuring vibrant, detailed images. The IR backlight allows the camera to operate effectively in dark environments.

Advanced wireless technology
MotionCam Jeweller uses Jeweller for instant alarms and Wings for rapid photo delivery. The system operates over distances up to 1,700 meters in open space, maintains encrypted communication, and reliably functions through walls or obstacles with range extenders.

Adaptable to different environments
Sensitivity levels can be adjusted to match room conditions and account for pets or thermal interference. Temperature compensation maintains detector accuracy even when ambient temperatures approach body heat.

Reliable operation and easy maintenance
Pre-installed batteries provide years of uninterrupted service, with low battery alerts delivered via the app. Batteries are easily replaceable, and the detector functions independently of the building's power supply.

Tamper protection and secure data handling
The device alerts users and security companies if tampered with. All photos and system data are encrypted, stored securely on Ajax Cloud, and access is strictly controlled. GDPR-compliant storage ensures privacy.

Seamless integration and setup
The MotionCam (PhOD) Jeweller is ready for immediate installation. Using the SmartBracket panel, mounting is quick, and the device pairs effortlessly with Ajax hubs through QR code scanning. Configuration can be adjusted remotely, eliminating the need for onsite service visits.

Technical highlights

• Motion detection up to 12 m with 88.5degrees horizontal and 80degrees vertical coverage
• PIR sensor with pet immunity for animals up to 20 kg and 50 cm height
• Photo resolutions: 640x480, 320x240, 160x120 px
• Automatic and on-demand photo capture with IR backlight
• Encrypted wireless communication up to 1,700 m with Jeweller and Wings protocols
• Pre-installed CR123A batteries with up to 5-year lifespan
• Indoor use, compact design (135 x 70 x 60 mm), and IP50 protection class

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AJX-M-MCIP
Compatibility
Compatible hub models	Hub 2 (2G)
	Hub 2 (4G)
	Hub 2 Plus
	Hub Hybrid (2G)
	Hub Hybrid (4G)
Compatible range extenders	ReX 2
Communication
Jeweller communication technology	Proprietary wireless communication technology to transmit alarms and events.
	Key features:
	Two-way communication.
	Advanced anti-sabotage.
	Block encryption featuring a dynamic key.
	Instant notifications.
	Remote configuration via the Ajax apps.
Frequency bands	866.0-866.5 MHz
	868.0-868.6 MHz
	868.7-869.2 MHz
	905.0-926.5 MHz
	915.85-926.5 MHz
	921.0-922.0 MHz
	Depends on the sales region.
Maximum effective radiated power (ERP)	up to 20 mW
Radio signal modulation	GFSK
Radio signal range	up to 1,700 m
	Between detector and hub or range extender in an open space.
	Calculate radio signal range at the facility
Encrypted communication	All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping	Radio communication uses frequency hopping to prevent interception and jamming.
Wings communication technology	Proprietary wireless communication technology to transmit photo verifications.
	Key features:
	Two-way communication.
	Block encryption featuring a dynamic key.
	Advanced anti-sabotage.
	Data package reloading in case of transmission errors.
	Photo delivery check.
Frequency bands	866.0-866.5 MHz
	868.0-868.6 MHz
	868.7-869.2 MHz
	905.0-926.5 MHz
	915.85-926.5 MHz
	921.0-922.0 MHz
	Depends on the sales region.
Radio signal range	up to 1,700 m
	Between detector and hub or range extender in an open space.
	Calculate radio signal range at the facility
Encrypted communication	All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping	Radio communication uses frequency hopping to prevent interception and jamming.
Detection
Sensitive element	1 PIR sensor
Motion detection distance	up to 12 m
	When installed at a height of 2.4 m.
Motion detection angles	horizontal - 88.5degrees
	vertical - 80degrees
Motion detection speed	from 0.3 to 2.0 m/s
	The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity	3 levels
	Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity	weight: up to 20 kg
	height: up to 50 cm
False alarm prevention	SmartDetect
	Software algorithm.
Temperature compensation	Effective motion detection at temperatures from -10degreesC to +40degreesC.
Photo verification
Photo by alarm	A built-in camera is activated if the detector is armed, and motion is detected.
Photo on demand	User takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.
Photo by scenario	A detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default.
Photo resolution	640 x 480 px
	320 x 240 px (by default)
	160 x 120 px
	Adjusted by PRO or user with admin rights in the Ajax app.
IR backlight	For night photography and low light conditions.
Pictures in a series	from 1 to 5 images with resolution of 320 x 240 px or 160 x 120 px
	from 1 to 3 images with resolution of 640 x 480 px
	Adjusted by PRO or user with admin rights in the Ajax app.
Photo delivery time	up to 7 s - 160 x 120 px resolution
	up to 9 s - 320 x 240 px resolution
	up to 20 s - 640 x 480 px resolution
	When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2-3 bars. Photo delivery time when the detector is connected via range extender is available here.
Recommendations
Recommendations	It is recommended to install the detector at a height of 2.4 m.
	The device is designed for indoor use only.
Anti-sabotage protection
Tampering alarm	Alerts of attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against spoofing	device authentication
Communication loss detection	within 36 s
	Detection time depends on the Jeweller settings.
Power supply
Power supply	2 x CR123A battery, 3 V
	(pre-installed)
Battery life	up to 4 years
	with Photo on demand toggle disabled
	up to 3 years
	with Photo on demand toggle enabled
Enclosure
Dimensions	135 x 70 x 60 mm
Weight	167 g
Operating temperature range	from -10degreesC to +40degreesC
Operating humidity	up to 75%
Protection class	IP50
Colour
Colour	Black
	White
Complete set
Complete set	MotionCam (PhOD) Jeweller
	SmartBracket mounting panel
	Installation kit
	2 x CR123A battery (pre-installed)
	Quick Start Guide
