AJX-KP

Overview

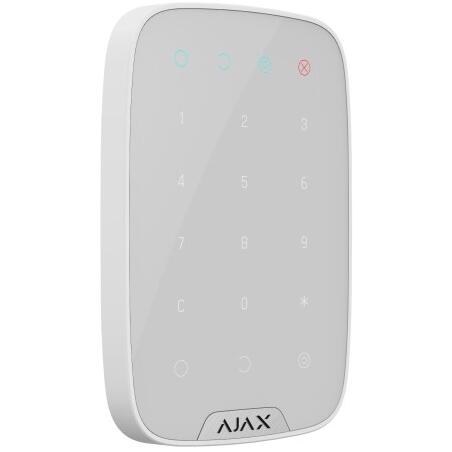

Ajax Keypad Jeweller - Wireless White Indoor Keypad
The Ajax Keypad Jeweller offers seamless control of your security system with its wireless touch interface. Designed for indoor use near entry points, it allows fast arming and disarming of your Ajax system. With advanced communication encryption and jamming detection, this keypad ensures reliable protection while providing alerts for tampering or unauthorized access attempts. Users can easily manage multiple security codes, including duress codes, and receive instant notifications through the mobile app. Installation is straightforward, with the battery pre-installed and setup completed in minutes.

Description

The Ajax Keypad Jeweller combines convenience and security in a compact, wireless design. It supports up to 99 individual access codes, including a hidden duress code that can alert your Central Monitoring Station if needed. The keypad detects tampering, blocks itself after multiple incorrect entries, and communicates securely with your hub using Jeweller radio technology. With up to two years of battery life, intuitive mobile app integration, and quick installation using SmartBracket, it offers a reliable, user-friendly solution for homes or offices.

Features

How it works
Users enter a digital code to arm or disarm the system. The keypad provides visual feedback on system status, detects communication failures, and includes an alarm button for emergency alerts. The device automatically blocks itself after too many incorrect entries to prevent unauthorized access.

Managing access for visitors and staff
The keypad allows temporary or permanent access codes for people not registered in the system, such as cleaning staff or realtors. You can create, edit, and delete codes remotely, assign unique IDs to each user, and receive notifications whenever codes are added or removed.

Easy installation and setup
The keypad comes ready to use with the battery pre-installed. Simply connect it to the hub via the mobile app and mount it on the SmartBracket. The process takes only a few minutes, with no additional disassembly required.

Technical details

• Type: Wireless touch keypad
• Indoor installation
• Compatible with all Ajax hubs and range extenders
• Supports duress and user passcodes
• Protects against code guessing
• Visual arming/disarming indication
• Power: 4 AA batteries, up to 2 years life
• Jeweller radio range: up to 1,700 m in open space
• Two-way device communication
• Radio frequencies: 866.0-866.5 MHz, 868.0-868.6 MHz, 868.7-869.2 MHz, 905.0-926.5 MHz, 915.85-926.5 MHz, 921.0-922.0 MHz (region dependent)
• Self-adjusting RF output power: up to 20 mW
• Dynamic key encryption
• Polling interval: 12-300 s
• Temperature sensor included, operating -10degrees C to +40degrees C, humidity up to 75%
• Anti-sabotage, tamper, and jamming detection
• Remote setup and testing available
• Dimensions: 150 x 103 x 14 mm, Weight: 197 g
• Includes: Keypad, SmartBracket, 4 AA batteries (pre-installed), installation kit, quick start guide

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AJX-KP
Classification	Radio channel touch keypad
Type of keypad	Wireless, touch
Installation method	Indoors
Compatibility	Operates with all Ajax hubs and range extenders
Duress code	Yes
User Passcode	Yes
Protection against code guessing	Yes
Arming/disarming indication	Yes
Power supply	4 x ??A battery
Battery life	Up to 2 years
Jeweller radio technology	Communication range with control panel - up to 1,700 m in an open space
	Two-way communication between devices
	Radio frequency bands:
	866.0 - 866.5 MHz
	868.0 - 868.6 MHz
	868.7 - 869.2 MHz
	905.0 - 926.5 MHz
	915.85 - 926.5 MHz
	921.0 - 922.0 MHz
	(depends on the sales region)
	Self-adjusting RF output power - up to 20 mW
	Block encryption with a dynamic key
	Polling interval - 12-300 s
Temperature sensor	Yes
Operating temperature range	From -10degrees to +40degrees?
Operating humidity	Up to 75%
Anti-sabotage	Protection against spoofing
	Jamming detection
	Tamper alarm
Remote setting and testing	Yes
Dimensions	150 x 103 x 14 mm
Weight	197 g
Complete set	KeyPad
	SmartBracket mounting panel
	4 x ?? battery (pre-installed)
	Installation kit
	Quick Start Guide
