AJAX-KP-W

Overview:

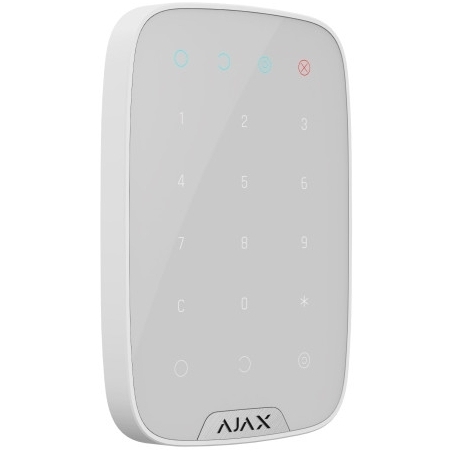

KeyPad
Wireless touch keypad is used to arm/disarm an Ajax security system. It is mounted in the room near the entrance door to provide quick access to the keypad.

• Authentication to prevent forgery
• Jamming detection and communication channels encryption
• Tampering alarm
• Security Grade
• Compliance
• The device activates the full security mode by pressing one button
• If the burglar forces the user to enter the code, a hidden alarm signal can be sent to the Central Monitoring Station
• The keypad is blocked automatically if the incorrect code is entered too many times

Features:

Principle of operation
The device operates security modes when a digital code is entered on the keypad. Indication notifies of current security status, problems with detectors or breakdown of communication with the hub.

Alarm button is available. It notifies of each attempt to guess the code
and blocks automatically if the permissible number of entries is exceeded.

Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the keypad. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.

Access for unregistered users
KeyPad supports up to 99 keypad access codes for people not registered in the Ajax system. Thanks to this feature, there is no need to create accounts for office employees, a cleaning company, or a realtor: it is enough to assign an access code to a person in the hub settings.

• Creating and editing codes remotely
• Notifications for adding, removing, and deactivating code
• A unique name and ID binding to identify the user

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	AJAX-KP-W
Classification	Radio channel touch keypad
Type of keypad	Wireless, touch
Installation method	Indoors
Compatibility	Operates with all Ajax hubs and range extenders
Duress code	Yes
User Passcode	Yes
Protection against code guessing	Yes
Arming/disarming indication	Yes
Power supply	4 x AAA battery
Battery life	Up to 2 years
Jeweller radio technology	Communication range with control panel - up to 1,700 m in an open space
	Two-way communication between devices
	Radio frequency bands:
	866.0 - 866.5 MHz
	868.0 - 868.6 MHz
	868.7 - 869.2 MHz
	905.0 - 926.5 MHz
	915.85 - 926.5 MHz
	921.0 - 922.0 MHz
	(depends on the sales region)
	Self-adjusting RF output power - up to 20 mW
	Block encryption with a dynamic key
	Polling interval - 12-300 s
Temperature sensor	Yes
Operating temperature range	From -10degC to +40degC
Operating humidity	Up to 75%
Anti-sabotage	Protection against spoofing
	Jamming detection
	Tamper alarm
Remote setting and testing	Yes
Dimensions	150 x 103 x 14 mm
Weight	197 g
Complete set	KeyPad
	SmartBracket mounting panel
	4 x AAA battery (pre-installed)
	Installation kit
	Quick Start Guide
