About this product
The Sunix Mio6479HL PCI-Express expansion card adds reliable legacy connectivity to modern systems, combining two high-speed serial ports and one parallel port in a single-slot design with dual bracket support. Built on the Sunix SUN2410 chipset, it delivers stable data transfer, advanced FIFO buffering, and strong ESD protection for industrial and professional environments.
Overview Summary

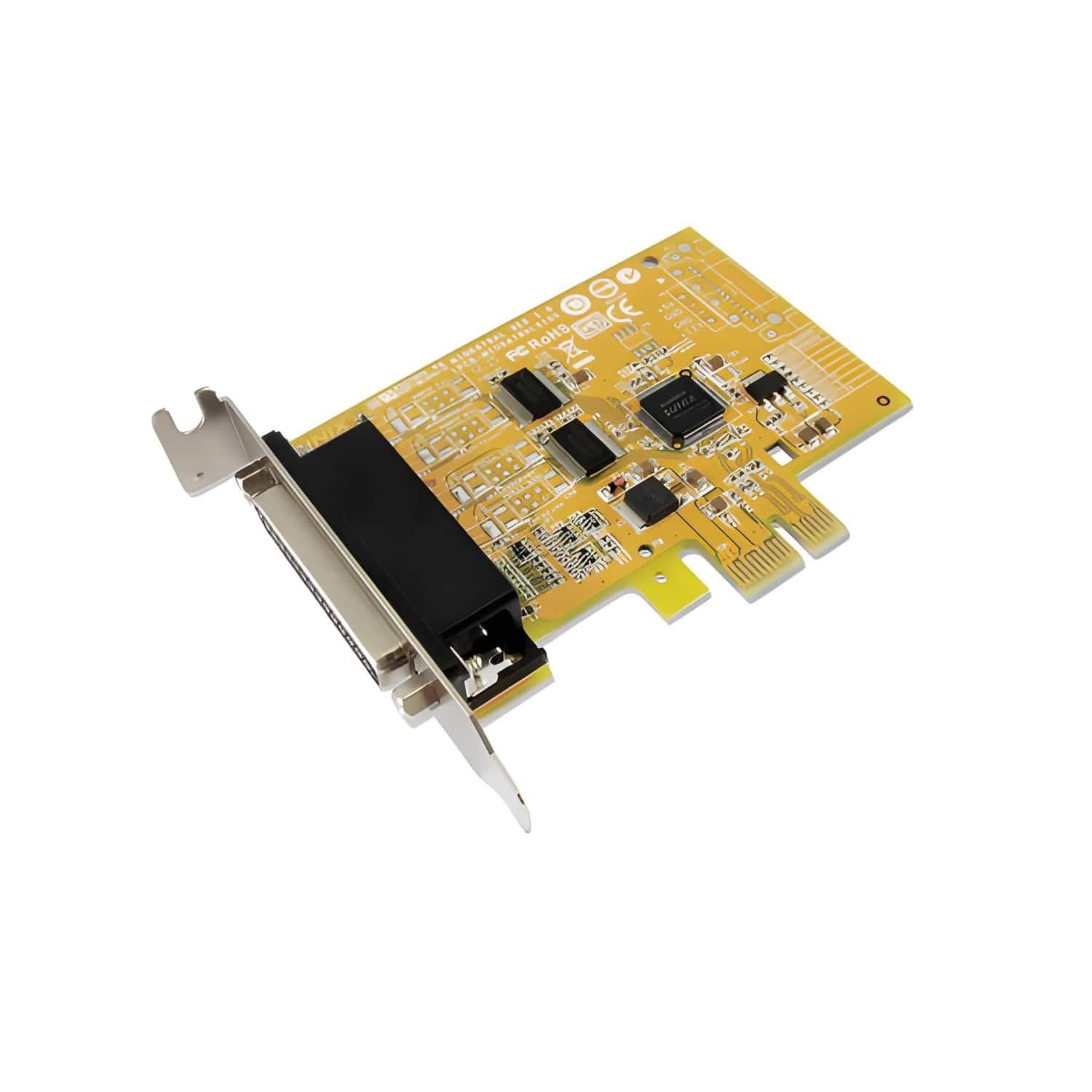

Sunix Mio6479HL PCI-Express Serial and Parallel Expansion Card
The Sunix Mio6479HL is a PCI-Express x1 interface card designed to extend system connectivity with legacy serial and parallel devices. It features two high-speed serial ports based on the 16C550 controller and one parallel port supporting SPP, BPP, ECP, and EPP modes. The single-slot, dual-bracket design supports both low-profile and standard chassis installations.
With advanced hardware and software FIFO buffering, support for 64-bit operating systems, and high data transfer rates up to 921.6Kbps on serial and 1.8Mbps in turbo mode, this card is suited for demanding commercial and industrial applications. Robust ESD protection ensures long-term reliability in electrically noisy environments.
The majority of today's motherboards are not equipped with any RS-232 or Parallel port. With SUNIX MIO6479HL Multi I/O board, users can expand two RS-232 COM and one IEEE1284 LPT ports to their system, allowing them to use serial and parallel devices further. This board is compatible with PCI Express x1, x2, x4, x8 and x16 lane, allowing the board to be installed in virtually any slim size PC system with low profile bracket structure. SUNIX MIO6479HL built-in SUNIX high performance and realizable native PCI Express controller, and as well built with many of SUNIX advanced features and technologies, making it the advanced and high efficient solution for commercial and industrial automation application.
Description
The Sunix Mio6479HL is engineered to provide dependable serial and parallel connectivity for modern PCI-Express systems that still require legacy device support. Its single-slot design integrates two serial ports and one parallel port, while the included low-profile and standard brackets ensure compatibility with a wide range of system enclosures.
Powered by the Sunix SUN2410 chipset, the card supports high-speed data transfer and advanced FIFO buffering, combining 128 byte hardware FIFO with 128k software FIFO to reduce CPU load and improve communication stability. Comprehensive ESD protection safeguards connected equipment, making the Mio6479HL suitable for continuous operation in professional and industrial settings.
Features
The Sunix Mio6479HL is designed for reliability, flexibility, and performance in legacy IO expansion.
PCI-Express x1 interface compatible with modern motherboards
2 x high-speed serial ports using 16C550 controller
1 x parallel port supporting SPP, BPP, ECP, and EPP modes
Single-slot design with low-profile and standard dual brackets included
128 byte hardware FIFO plus 128k software FIFO buffering
Supports data rates up to 921.6Kbps and 1.8Mbps turbo mode
Ready for 64-bit operating systems
15KV ESD protection and IEC1000-4-2 air gap and contact discharge protection
±15KV ESD protection for each signal Human Body Model (HBM)
±15KV IEC1000-4-2 Air Gap Discharge
±8KV IEC1000-4-2 Contact Discharge
PCB Connector
DB44 Female
Cable Connector
DB 9 Male
Parallel Communication
Interface
IEEE1284
No. of Port
1-port
Mode
SPP / ECP / EPP / BPP
FIFO
16byte Hardware
Speed
Maximum 1.8MBps
PCB Connector
DB44 Female
Cable Connector
DB25 Female
Driver Support
Microsoft Client
XP / Vista / 7 / 8 (X86/X64)
Microsoft Server
2000 / 2003 / 2008 / 2008R2 / 2012 (X86/X64)
Linux
Linux 2.4.x / 2.6.x /3.x
DOS
DOS
Regulatory Approvals
Hardware
CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software
Microsoft WHQL Windows
Microsoft Client: XP / Vista / 7 / 8 (X86/X64)
Microsoft Server: 2000 / 2003 / 2008 / 2012 (X86/X64)
Environment
Operation Temperature
0 to 60degreesC (32 to 140degreesF)
Operation Humidity
5 to 95% RH
Storage Temperature
-20 to 85degreesC (-4 to 185degreesF)
Dimension
PCB Dimension
92 x 69 mm
Bracket
Low Profile 80 mm
Bracket Space
1
FAQ
What systems is the Sunix Mio6479HL compatible with
The Sunix Mio6479HL is compatible with PCI-Express x1 slots and supports modern 64-bit operating systems.
What devices can be connected to this expansion card
This card is designed for serial and parallel devices such as industrial controllers, POS peripherals, printers, measurement equipment, and legacy hardware.
Does the card support both low-profile and standard cases
Yes, the Mio6479HL includes both low-profile and standard brackets for flexible installation.
Is this card suitable for industrial environments
Yes, it features advanced FIFO buffering and high-level ESD protection, making it suitable for industrial and professional use.
