939-001644

Features:

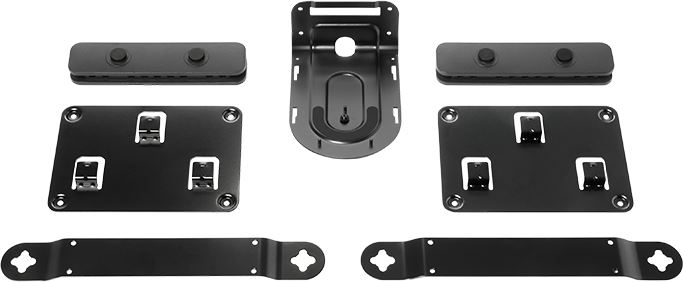

RALLY MOUNTING KIT
Custom mounts for a sleek installation and secure cabling

• Securely position Rally Camera on wall or near ceiling
• Low-profile speaker brackets provide "floating" appearance
• Secure connections with robust cable retention brackets

A SLEEK, SECURE, FLEXIBLE MOUNTING SYSTEM
Achieve a streamlined installation of each Rally system component with included brackets and mounting hardware. Camera bracket provides a secure, stable wall mount above or below the display, or cleverly inverts for near-ceiling installations. Mount speakers directly to the wall with low-profile brackets. Position hubs on a wall or beneath a table with ventilated hardware, then secure connections with the cable retention brackets for a professional appearance.

Invertible camera bracket
The camera bracket provides flexibility to mount the camera on a wall directly above or below the display for a natural line of sight and eye contact with remote participants. For larger meeting spaces, the bracket can be inverted to position the camera near the ceiling for a more expansive view. A tripod screw and three-point pin system provides stability and helps keep the camera steady when the lens is in motion.

Low-profile speaker brackets
Each accessory in the Rally Mounting Kit is tailored to the system component it supports. The two brackets that mount the Rally speakers on either side of the display create a sleek "floating" appearance while enabling the speakers themselves to deliver their full acoustic potential. The result: lifelike conversational sound that helps bring people together even as the enabling technology fades unobtrusively into the background.

Ventilated brackets for Display Hub and Table Hub
Two ventilated hub brackets provide versatile mounting options to position the Display Hub and Table Hub on a wall or beneath a table. The brackets are engineered with elevated standoffs to ensure ample air circulation for reliable cooling.

Cable retention brackets
Guard against accidental disconnections and related trouble tickets while keeping cables neat and tidy. Each two-piece bracket mounts near the Display Hub and Table Hub to keep the power, A/V, and data cables securely plugged in.

Specifications

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	939-001644
Product Code	939-001644
Speaker Bracket	Height x Width x Depth:
	36 mm x 266 mm x 8 mm
Camera Bracket	Height x Width x Depth:
	63 mm x 109 mm x 166 mm
Table Hub Bracket	Height x Width x Depth:
	12 mm x 164 mm x 115 mm
Display Hub Bracket	Height x Width x Depth:
	12 mm x 164 mm x 115 mm
Cable Retainer	Height x Width x Depth:
	23 mm x 164 mm x 38 mm
System Requirements	Logitech Rally or Logitech Rally Plus
	Note: Rally Mounting Kit is designed for Logitech Rally systems only. A different mounting system is included with the standalone USB Rally Camera.
Package Contents	Speaker Bracket (2)
	Camera Bracket
	Table Hub Bracket
	Display Hub Bracket
	Cable Retainer (2)
	Fasteners Documentation
