Overview:

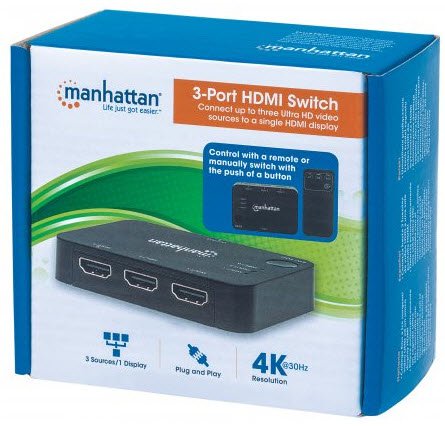

The Manhattan 3-Port HDMI Switch Model Number: 207522 allows media enthusiasts to connect three Ultra HD video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to a single UHD 4K display.

Features:

• Connect up to three UHD video sources to a single HDMI display
• Automatically detects an Ultra HD signal; control with a remote or manually switch with the push of a button
• 4K @ 30Hz resolution, full 3D video and Deep Color
• Supports video amplifier bandwidth up to 340MHz, 3.4Gbps per channel (10.2Gbps total) for 4Kx2K display
• Supports 48-bit Deep Color (12-bits per channel) and xvYCC (x.vColor)
• Supports compressed DTS-HD Master Audio and 7.1 surround sound, and Dolby TrueHD and uncompressed LPCM 8 channel audio
• Works with Playstation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
• Plug and play
• Gold-plated contacts for corrosion free connections

Flexible Solution for Many UHD 4K Applications
With the increased number of Ultra High-Definition media devices, the Manhattan 3-Port HDMI Switch expands the connectivity options of your 4K HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. When more than one UHD video source is on at the same time, the included IR controller lets you remotely select a source, or you can select it manually with the switch's built-in button.

Best Possible Image Quality
Full compliance with HDMI and HDCP ensures the Manhattan 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution images and supports 3D video, Deep Color, as well as LPCM, DTS and Dolby TrueHD audio.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	207522
Standards and Certifications	HDCP
	DVI 1.0
	CTS 1.4a
	CE
	FCC
	RoHS2
Connections	HDMI male (output) (1)
	HDMI female (input) (3)
	3.5mm/IR female (input) (1)
	5V/AC power female (input) (1)
Signal Input /Output	Input video signal: 400 – 600 mV
	Input DDC signal: 5 V p-p (TTL)
	Maximum single-link range: 10.2 Gbps and 4096x2160/24 Hz resolution
	Output video: HDMI 1.4, HDCP 1.3
	Frequency: 2.97 Gbps
Supported Video Resolutions	DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K @ 30Hz
Physical	Dimensions: 87 x 59 x 19 mm (3.4 x 2.3 x 0.8 in.)
	Weight: 60 g (2.1 oz.)
	Housing: plastic
	Operating Environment
	Operation Temperature: 32 ~ 104°F (-0 ~ 40°C)
	Storage Temperature: -4 ~ 140°F (-20 ~ 60°C)
	Humidity (noncondensing): 0 ~ 96%
Package Contents	HDMI Switch
	Remote Control
	IR Extension
	USB power cable
	Quick Instruction Guide
