Overview Summary
Enhance your UniFi Protect system with the Ubiquiti UniFi Protect Superlink Long Range Gateway, designed for seamless low-latency wireless sensor connections. Built with a durable polycarbonate and aluminum alloy enclosure, this gateway supports PoE power and Bluetooth 5.2, making installation flexible and efficient. Whether mounted on a wall or DIN rail, it ensures reliable communication with up to 96 sensors, ideal for both homes and businesses. Shop now to upgrade your security network effortlessly.
Compact yet powerful, the Superlink Gateway delivers consistent performance in various environments with minimal power consumption. Easy to integrate via the UniFi Protect web or mobile app, it provides enhanced control and monitoring for all your connected sensors. Buy now and secure your property with a trusted, high-performance gateway.
Performance tier: Premium
Uses: Home security, Business security, Sensor network management, Low-latency wireless monitoring, Remote device management Overview

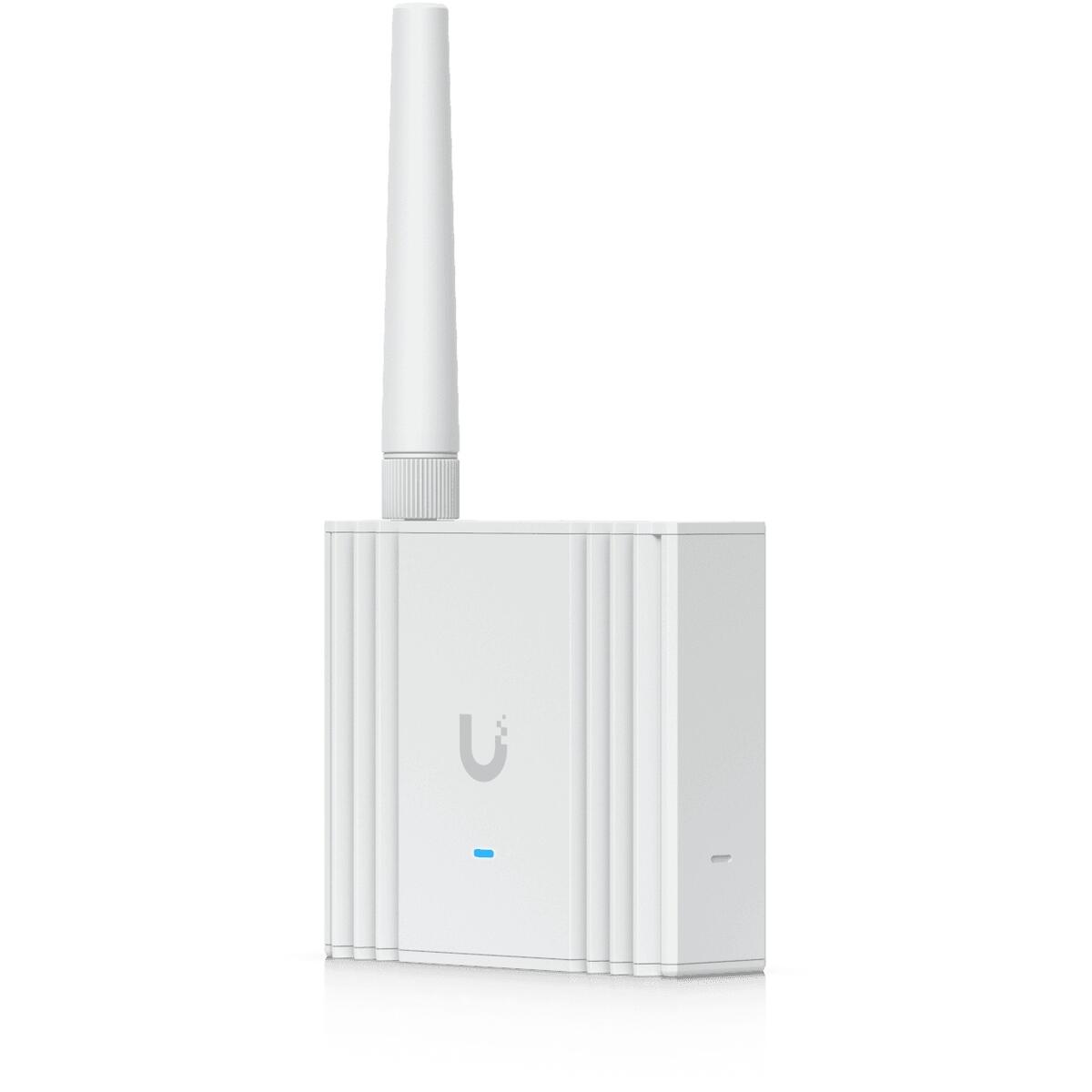

Ubiquiti UniFi Protect Superlink Long Range Gateway for Sensors
The Ubiquiti UniFi Protect Superlink gateway is engineered for seamless, long-range connectivity with UniFi Protect sensors. Designed to deliver low-latency wireless performance, it ensures your smart security setup remains responsive and reliable across large areas. Its robust build combines polycarbonate and aluminum alloy for durability, while versatile mounting options allow installation on walls or DIN rails. With integrated Bluetooth 5.2 and PoE support, it simplifies both management and power connectivity, making it a convenient choice for modern home and commercial security networks.
Description
The UP-SuperLink gateway supports up to 96 Superlink clients, providing stable communication over extended distances. It includes a single 10/100 MbE RJ45 port, optional USB Type-C power input, and a factory reset button for easy setup. Its antennas deliver 27 dBm for Superlink and 10 dBm for Bluetooth, supporting up to 7 Bluetooth devices simultaneously. The compact design, lightweight 179 g frame, and multiple mounting options make it adaptable for various environments. Certified by FCC, IC, and CE, this device is also NDAA compliant.
Features
Construction and Dimensions
The gateway features a solid polycarbonate and aluminum alloy body for durability. Mounting options include wall or DIN rail, and the dimensions vary slightly depending on installation:
- With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1")
- DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5")
- Wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2")
Connectivity and Performance
This gateway offers reliable networking and device management with:
- 1x 10/100 MbE RJ45 port
- Bluetooth 5.2 interface
- Proprietary SuperLink wireless for low-latency sensor connections
- Optional USB Type-C power (5V, 1A)
- PoE power support
- Maximum power consumption of 3.4W
Wireless and Antenna Capabilities
The UP-SuperLink ensures long-range coverage and efficient device handling:
- SuperLink max TX power: 27 dBm
- Bluetooth max TX power: 10 dBm
- Antenna gain: SuperLink 1 dBi, Bluetooth 3 dBi
- Max clients: SuperLink 96, Bluetooth 7
User Controls and Indicators
- 1 LED (blue/white) for status
- Factory reset button for easy management
Operating Conditions
- Temperature: 0 to 40degrees C (32 to 104degrees F)
- Humidity: 10 to 90% noncondensing
Certifications and Compliance
- FCC, IC, CE certified
- NDAA compliant
Software Compatibility
Manage the gateway easily via UniFi Protect web application or mobile apps on iOS and Android, allowing full control over your connected sensors and system settings.
Specifications
| ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications |
| Product Code | USL-GATEWAY |
| Mechanical |
| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") |
| With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") |
| With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
| Weight | 179 g (6.3 oz) |
| Enclosure material | Polycarbonate, aluminum alloy |
| Mount material | Polycarbonate |
| Hardware |
| Networking interface | (1) 10/100 MbE RJ45 port |
| Management interface | Bluetooth 5.2 |
| SuperLink (Proprietary) |
| Power method | PoE |
| USB Type-C, 5V, 1A (Optional) |
| Max. power consumption | 3.4W |
| ESD/EMP protection | Air: ± 8kV |
| Contact: ± 4kV |
| Antenna gain |
| Bluetooth | 3 dBi |
| SuperLink | 1 dBi |
| Max. TX power |
| Bluetooth | 10 dBm |
| SuperLink | 27 dBm |
| Max. client count |
| Bluetooth | 7 |
| SuperLink | 96 |
| LED | (1) Blue/white |
| Button | (1) Factory reset |
| Mounting | Wall, DIN rail |
| Ambient operating temperature | 0 to 40degrees C (32 to 104degrees F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
| Software |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS and Android |
