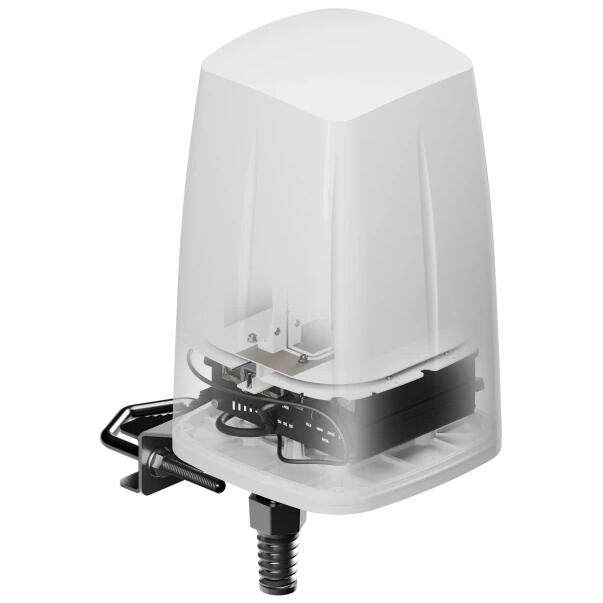

TTK-ANT-RUTX Teltonika Outdoor LTE / Wi-Fi / GPS / Bluetooth Antenna for RUTX11 and RUTM11

TTK-ANT-RUTX

R 3,010.00

inc. VAT

In Stock

Add To Cart

Rate

Teltonika Outdoor LTE / Wi-Fi / GPS / Bluetooth Antenna for RUTX11 and RUTM11

Images are for illustrative purposes and actual product may differ.

TTK-ANT-RUTX

Wireless: Antennas

Teltonika

TTK-ANT-RUTX information and overview

Teltonika Outdoor LTE / Wi-Fi / GPS / Bluetooth antenna for RUTX11 and RUTM11, PR1IC970, 4.5 dBi LTE antenna, 2 dBi BT antenna, 7.5 dBi Wi-Fi antenna, 28 dBi GNSS antenna

Specifications & more information about TTK-ANT-RUTX, Wireless: Antennas manufactured by Teltonika

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

OUTDOOR LTE/WI-FI/GPS/BLUETOOTH ANTENNA FOR RUTX11 AND RUTM11 ROUTERS
Order code: PR1IC970

LTE ANTENNA

Frequency Range 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
PolarisationVertical
Radiation pattern typeOmnidirectional
Gain Max 4.5 dBi
V.S.W.R < 2.50
Impedance 50 Ω
Connector type and count 2x SMA male

BT ANTENNA

Frequency Range 2200 ~ 2700 MHz
PolarisationVertical
Gain 2 dBi
V.S.W.R < 2.00
Impedance 50 Ω
Connector type and count 1x RP-SMA male
The Bluetooth antenna is not utilised when used with the RUTM11

WI-FI ANTENNA

Frequency Range 2400 ~ 2500, 4700 ~ 6000 MHz
PolarisationVertical
Radiation pattern typeOmnidirectional
Gain Max 7.5 dBi
V.S.W.R < 2.00
Impedance 50 Ω
Connector type and count 2x RP-SMA male

GNSS ANTENNA

Frequency Range 1560 ~ 1610 MHz
PolarisationRHCP
Gain 28 dBi
V.S.W.R < 2.00
Impedance 50 Ω
Connector type and count 1x SMA male
Current consumption 2.5 - 6.5 mA
Supply voltage 2.5 - 6.5 VDC

MECHANICAL/ENVIRONMENTAL

Cable 5x RG316, 1x RG174
Operating Temperature -40 ° C to 75 °C
Mounting Method Wall, ceiling, mast
IP ratingIP67
Weight 1500 g
RoHS compliant✓

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	TTK-ANT-RUTX
LTE ANTENNA
Frequency Range	617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
Polarisation	Vertical
Radiation pattern type	Omnidirectional
Gain	Max 4.5 dBi
V.S.W.R	< 2.50
Impedance	50 Ω
Connector type and count	2x SMA male
BT ANTENNA
Frequency Range	2200 ~ 2700 MHz
Polarisation	Vertical
Gain	2 dBi
V.S.W.R	< 2.00
Impedance	50 Ω
Connector type and count	1x RP-SMA male
Connector type and count	The Bluetooth antenna is not utilised when used with the RUTM11
WI-FI ANTENNA
Frequency Range	2400 ~ 2500, 4700 ~ 6000 MHz
Polarisation	Vertical
Radiation pattern type	Omnidirectional
Gain	Max 7.5 dBi
V.S.W.R	< 2.00
Impedance	50 Ω
Connector type and count	2x RP-SMA male
GNSS ANTENNA
Frequency Range	1560 ~ 1610 MHz
Polarisation	RHCP
Gain	28 dBi
V.S.W.R	< 2.00
Impedance	50 Ω
Connector type and count	1x SMA male
Current consumption	2.5 - 6.5 mA
Supply voltage	2.5 - 6.5 VDC
MECHANICAL/ENVIRONMENTAL
Cable	5x RG316, 1x RG174
Operating Temperature	-40 °C to 75 °C
Mounting Method	Wall, ceiling, mast
IP rating	IP67
Weight	1500 g
RoHS compliant	✓
