PP1MBK0B-O

Overview

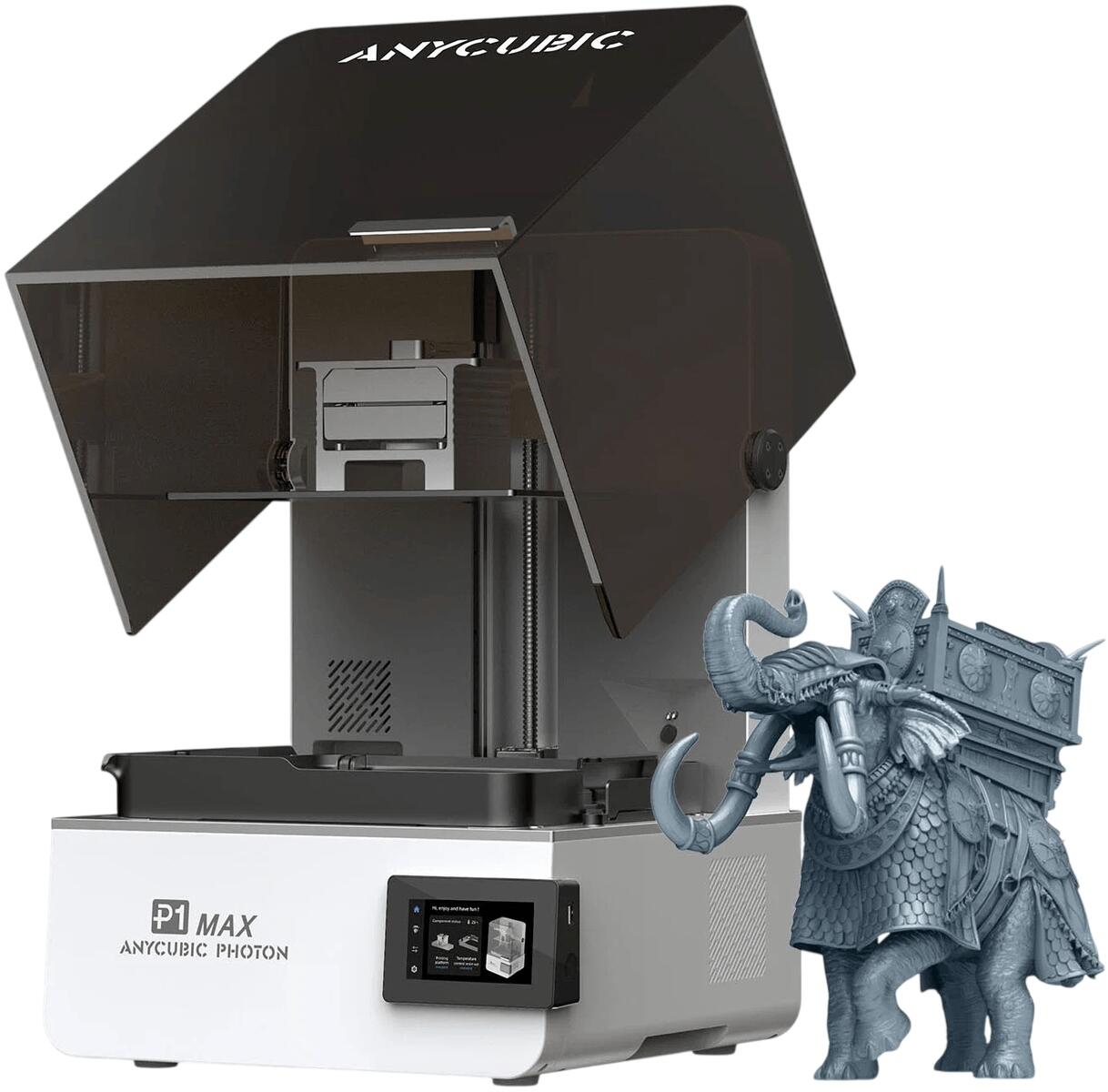

The Anycubic Photon P1 Max is a large-format MSLA resin 3D printer designed for creators, professionals, and production users who demand serious build volume without sacrificing detail. With a massive print volume of 285.5 x 214 x 300 mm, this machine offers 18.3 litres of usable space in a single cycle, allowing you to produce genuinely large models or dense batch runs without the need for splitting and gluing parts.

Description

This printer combines precision engineering with intelligent automation to deliver reliable results. Key capabilities include Layer-Free leveling technology that ensures the machine is ready straight out of the box, a precision-ground steel build platform for superior adhesion, and remote monitoring via the Anycubic App over Wi-Fi or Ethernet. It operates quietly at less than 45 dB, making it suitable for home studios, and supports high-viscosity resins up to 8000 cps with dynamic temperature control.

The Photon P1 Max bridges the gap between theoretical design and physical reality by ensuring prints look as good on the platform as they do in the slicer software. The Z-axis utilizes dual linear guide rails and ball lead screws for smooth, repeatable motion, while layer heights ranging from 0.02 to 0.15 mm give you full control over detail or print speed.

Features

Precision Engineering and Speed
The machine is built to handle high-precision tasks with a COB light source combined with Fresnel lenses and masks, delivering an intensity of at least 4000µW/cm² . You can achieve layer heights as fine as 0.02 mm for exceptional detail or speed up production with standard settings reaching 15-25 mm/h. The X/Y axis resolution is precise at 24.8 x 24.8 µm, ensuring that even the smallest details are captured accurately across the entire build area.

Intelligent Operation and Connectivity
Setting up a large-format resin printer has traditionally been frustrating, but the Leveling-Free 3.0 system addresses this with automatic self-checks and real-time force value feedback at all four corners. Power loss resume functionality ensures that unexpected outages do not ruin your print jobs. For remote management, an integrated camera allows for real-time monitoring and print submission via the Anycubic App, supported by dual-network connectivity options including Wi-Fi and Ethernet.

Material Versatility and Environment
This printer supports all Anycubic resins as well as high-viscosity resin up to 8000 cps. Dynamic temperature control on the resin vat maintains consistent viscosity, while the hotbed can reach temperatures of up to 35degrees C in ambient conditions above 5degrees C. Operating at a whisper-quiet level of less than or equal to 45 dB, it fits perfectly into shared studio spaces or home workshops.

The Anycubic Photon P1 Max is compatible with popular slicer software including Photon Workshop, Chitubox, Lychee, and Tango, allowing you to work in your preferred environment. Control is intuitive via a 4.5-inch resistive touchscreen, the mobile app, or a USB drive.

Key Technical Highlights

• Massive build volume of 285.5 x 214 x 300 mm (18.3L) for large single prints or batch runs
• Ultra-fine layer height range from 0.02 to 0.15 mm across the full build area
• Leveling-Free 3.0 with automatic self-check and factory calibration for immediate use
• Dual linear guide rails and ball lead screws on the Z-axis for repeatable accuracy
• Dynamic temperature control on the resin vat to maintain consistent viscosity
• Integrated camera for remote monitoring and print submission via the Anycubic App
• Dual-network connectivity with Wi-Fi, Ethernet, and USB Drive support
• Quiet operation at less than or equal to 45 dB suitable for home use
• Power loss resume feature protects in-progress prints from interruptions
• Supports all Anycubic resins including high-viscosity options up to 8000 cps

The product part number for this model is PP1MBK0B-O. It features a precision-ground steel build platform and an NFEP release film designed for easy print removal.

What's in the Box

• Anycubic Photon P1 Max x1
• Print Platform x1
• Resin Vat x1
• Wet Wipes x1
• Hex Key Set x1
• Protective Equipment x1
• Filter x1
• Scrapers x1
• USB Drive x1
• Power Cord x1
• User Manual x1

Anycubic has been engineering desktop resin and filament 3D printers since 2015, combining precision mechanics with accessible software to help makers bring their ideas to life. The Photon P1 Max reflects this commitment as a large-format machine designed to perform reliably print after print.

Specifications

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	PP1MBK0B-O
Printing Volume	285.5 x 214 x 300mm³
Printing Speed	15-25 mm/h (0.05 mm layer, Std Resin)
Layer Height Range	0.02-0.15 mm
X/Y Axis Resolution	24.8 x 24.8 μm
Light Source	COB + Fresnel + Mask
Light Intensity	≥4000μW/cm²
Material Compatibility	All Anycubic Resins
Build Platform	Precision-ground Steel Platform
Z-axis	Dual linear guide rails + Ball lead screws
Release film	NFEP
Resin Vat	1.9L
Machine Leveling	Leveling-Free 3.0 + Leveling Feedback + Leveling Self-Check
Power Loss Resume	Supported
Power Supply	296W
Protection Film	Wave Release Film
Resin Auto-fill Unit	Not Supported
Dynamic Temperature Control Resin Vat	Supported
Slicing Software	Photon Workshop( + Chitubox/Lychee/Tango)
Hinged Cover	Smooth Hinge (>45degrees stepless)
Operating Screen	4.5" Resistive Touchscreen
Air Purifier	Optional AirPure 2.0
LCD Screen	14" Monochrome LCD (12K)
Anycubic App	Supported
Multilingual Support	EN / CN / DE / FR / IT / ES / RU / JP / PT / KR
Product Dimensions	430 x 414 x 625mm³
Machine Weight	23100g

FAQ

What is the maximum print size I can achieve with this printer?
The Anycubic Photon P1 Max features a large build volume of 285.5 x 214 x 300 mm, providing over 18 liters of space to print tall or wide models in a single cycle without needing to split parts.

Do I need to manually level the printer before every print?
No, the machine utilizes Leveling-Free 3.0 technology which includes an automatic self-check and factory calibration, so it is ready to print straight out of the box with no manual leveling required.

Can I monitor my prints remotely while away from the machine?
Yes, the printer features an integrated camera and supports dual-network connectivity via Wi-Fi or Ethernet, allowing you to submit jobs and watch progress in real-time through the Anycubic App.

What happens if the power goes out during a print run?
The Anycubic Photon P1 Max includes a Power Loss Resume feature that allows the printer to automatically restart the print from where it left off after an unexpected outage.

Is this printer suitable for use in a quiet home or studio environment?
Absolutely, the unit operates at 45 dB or less and includes dynamic temperature control for the resin vat, making it whisper-quiet enough for shared spaces without compromising print quality.
