MW-NTS-300-224UN Mean Well 300W True Sine Wave DC-AC power Inverter, 24V DC to 230V AC

MW-NTS-300-224UN

Click to view larger image

Rate

Mean Well 300W True Sine Wave DC-AC power Inverter, 24V DC to 230V AC

Images are for illustrative purposes and actual product may differ.

MW-NTS-300-224UN

Power Supply Units (Electrical)

Mean Well

MW-NTS-300-224UN information and overview

Mean Well 300W True Sine Wave DC-AC power Inverter, 24VDC Input, 200 / 220 / 230 / 240VAC Output voltage options, NTS-300-224UN

Not for sale. This is a discontinued product.

Kindly search for an alternative on our site

Subject to correction, the product was first added on 2022-07-18 and the last date we have for this product is 2026-07-02, where the last unit was sold for R 4425, which may have been a final clearance price.

Specifications & more information about MW-NTS-300-224UN, Power Supply Units (Electrical) manufactured by Mean Well

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

NTS-300 Series

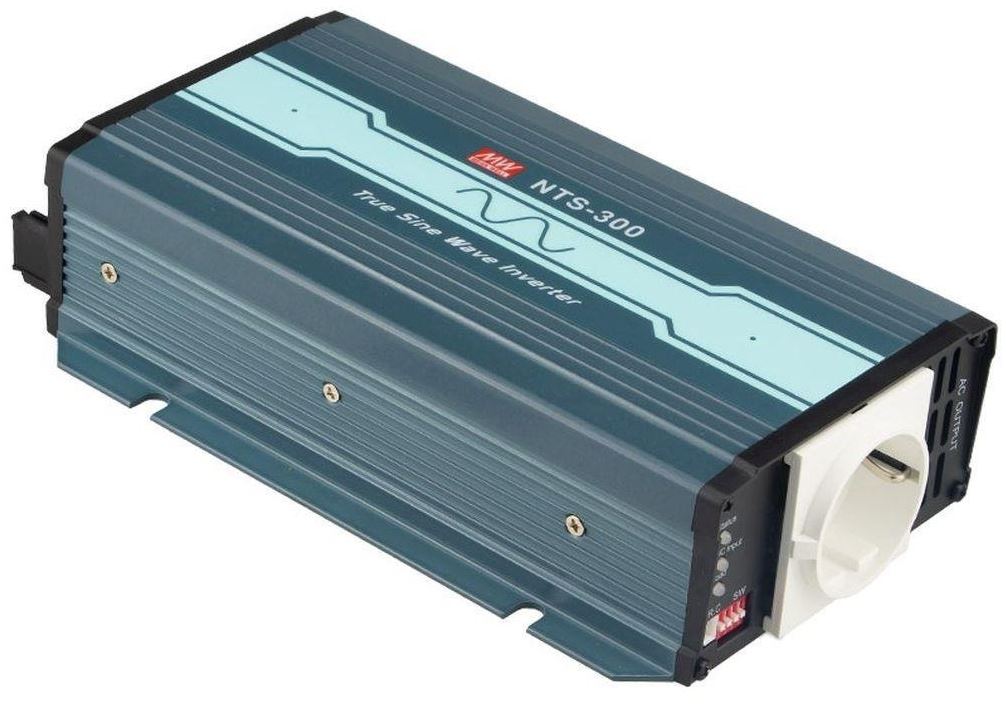

NTS-300 is a 300W highly reliable off-grid true sine wave DC-AC power inverter.

Compact size and light weight
True sine wave output (THD<3%)
High surge power up to 600W
Fanless design
AC output voltage and frequency selectable by DIP S.W
No load disspation <1.5W max at standby saving mode
-25°C~+65°C wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections: Input: Reverse polarity/DC low alarm/DC low shutdown/Over voltage. Output: Short circuit/Overload/Over temp.
Battery over discharge protection(Low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Conformal coating

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MW-NTS-300-224UN
Item	NTS-300-224UN
Wattage	300
Input Voltage	24
Output Voltage	Default setting set at 230VAC
Output Voltage Options	200/220/230/240VAC selectable by DIP S.W
Dimensions	21013055
Working Temperature	-25~65°C
Safety Standards	CB IEC62368-1, Dekra EN62368-1, E13, EAC, TP TC 004, AS/NZS 62368.1 approved
EMC Standards	FCC for 112,124,148 only (expect for Type-UN), EN55032(CISPR32) for 212, 224, 248 only (expect for Type-UN), EN61000-3-2, EN61000-3-3
