Specifications |
| Product Code | HISENSE LEDN70A6H |
| Details |
| Factory model | 70A53FXVT |
| Factory | Qingdao |

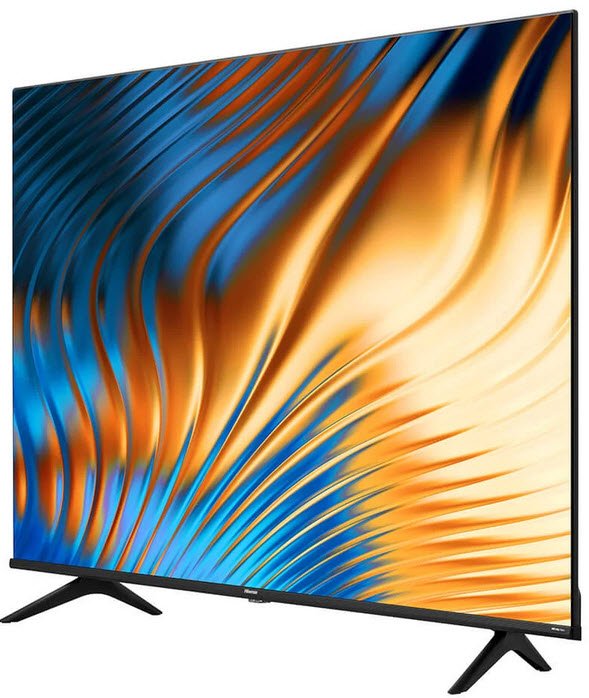

| Description | 178cm (70" ) Direct LED Television |
| Document |
| Specifications form version | HA220704 |
| Circulation | Restricted, internal use only |
| Status | Confirmed |
| Revision number | 1 |
| Date | 7/4/2022 |
| Issued by | Al |
| Image display |
| Panel manufacturer | Hisense |
| Panel model | LCM:HD700X1U91-BY, Open Cell :CHOT CV700U2-T01 |
| Active display area, horizontal dimension | 1550.6mm |
| Active display area, vertical dimension | 872.2mm |
| Screen size (rounded to nearest integer) | 178 cm |
| Screen size (rounded to nearest integer) | 70 inch |
| Display technology | LCD/ LED lit |
| Backlight source | Direct LED |
| Resolution (Horiz x Vert) | 3840X2160 |
| Screen curvature radius | - |
| Colour depth | 8bit+FRC |
| Image refresh frequency | 60Hz |
| Smooth motion rate | 120 |
| 3D image | - |
| Typical brightness of white | 300cd/m2 |
| Native contrast ratio | 4000 :: 1 |
| Viewing Angle (Horiz / Vert) | 178/ 178 Degrees |
| Quantum dot | No |
| Wide colour gamut | No |
| KSF phosphor | No |
| UHD Premium | No |
| Response Time | 8ms |
| Connectivity |
| RF- Radio frequency input | 1 |
| AV input | 1 |
| AV output | 0 |
| USB interface type 3.0 (Qty / List....) | 0 |
| USB interface type 2.0 (Qty / List ....) | 2/ USB1, USB 2 |
| Optical digital audio output (SPDIF) | 1 |
| Earphone jack | 1 |
| HDMI ports |
| HDMI inputs | 3 |
| HDMI type 8K@60Hz | No |
| HDMI type 4K@60Hz with HDCP version 2.2 | HDMI 1, HDMI 2, HDMI3 |
| HDMI 2.1 compliant input | NA |
| Enhanced Audio Return Channel ( eARC) | No |
| CEC- Consumer Electronics Control via HDMI | Yes |
| Smart TV |
| Ethernet port (RJ45 connector) | 1 |
| Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..} | a, b, g, n, ac |
| Wi-Fi bands | 2.4/5.0GHz |
| DLNA compliance | Yes |
| Bluetooth / BT version | Yes / 5.0 |
| Anyview (Screen mirroring) | Yes |
| Catch-up TV services | Iview, SBS on Demand, 7 Plus, 9 Jumpin |
| (Tenplay available from Playsore) |
| UHD (4k) streaming | Yes |
| Installed Applications {List ......} | Netflix/Youtube/Prime Video...... |
| Freeview Plus - HbbTV 2.0 | No/HbbTV 1.6.1 |
| Web browser [Chrome, Opera, Other] | Odin |
| Digital TV reception |
| Television system (DVB-T / DVB-T2) | Yes / Yes |
| Video decoder (MPEG2 / MPEG 4) | Yes / Yes |
| AC3 Surround sound decoder | Yes |
| AS 4599.1 compliance | Yes |
| AS 4933.1 compliance | Yes |
| LCN- Logical channel number and DTV Service name support | Yes |
| Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX | Yes / Yes / Yes |
| Subtitles | Yes |
| RF Signal strength indicator | Yes |
| RF Signal quality indicator | Yes |
| RF Bit error rate indicator | Yes |
| EPG- Electronic programming guide, 7 days for all services | Yes |
| Audio description (vision impairment aid) | Yes |
| Parental rating lock | Yes |
| Analogue TV reception |
| Colour-Sound systems in VHF band | PALSECAM, B/G, D/K, I |
| Colour-Sound systems in UHF band | PALSECAM, B/G, D/K, I |
| Stereo sound decoder {A2, Nicam, ....} | No |
| Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX | No/ No/ No |
| Subtitles | Yes |
| Image processing |
| Backlight control | No |
| Light sensing | No |
| Dynamic backlight control | No |
| Frame rate control | No |
| Variable Refresh Rate (VRR) | No |
| FreeSync | No |
| Auto Low Latency Mode for VRR | Yes |
| Local dimming/ controllable zones | No |
| Zoom function settings | Automatic/ 16:9/ 4:3/ Panoramic/ |
| Movie Zoom/ Direct |
| 1:1 Pixel mapping | No |
| HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI) | No / No / No |
| HDR system (HDR10 / HDR10+ / Dolby Vision) | Yes/ No / YES |
| HLG (Hybrid Log-Gamma) for HDR | YES |
| HEVC (H.265) decoder | Yes |
| Dual image (PIP / POP) | No/ No |
| Motion enhancement and compensation (MEMC) | No |
| Input lag | NO |
| Sound |
| Audio power output per channel | 15Watt |
| Number of speakers (Tweeter / Midrange / Woofer) | 2 /0 /0 |
| Automatic volume level (AVL) | Yes |
| Audio equalizer | Yes |
| Dolby Digital | Yes |
| Audio enhancement -Type {SRS, BBE, SAP, DBX-TV....} | DTS Virtual X |
| Lip-sync adjustment | Yes |
| Features |
| On/off timer | Yes |
| Power off if no signal | Yes |
| Sleep timer | Yes |
| Program lock | Yes |
| OSD transparency control | Yes |
| User interface | VIDAA U5 |
| Software version OSD indication | Yes |
| Legal requirements: Disclaimer / Acceptance of Terms | Yes / Yes |
| Favourite channels list | Yes |
| Electronic point of sales (E-POS) | Yes |
| OTA- Over the air software updates | Yes |
| Voice command | Yes |
| Screen mirroring {Miracast, Anyview Cast, ...} | Anyview Cast |
| Smartphone remote control application {Rremote Now, ...} | Yes |
| Replaceable demo video for Store mode | Yes |
| Remote control via serial port | No |
| USB media player |
| Personal Video Recorder | Yes |
| Time Shift | Yes |
| DTV Recording (EPG scheduling / start from Standby ) | Yes / Yes |
| DivX decoder | No |
| MPEG4 (H.264) / H.265 decoder | Yes / Yes |
| DMP- Digital media player content (Music / Video / Photos / Text) | Yes / Yes / Yes / No |
| DMP Auto-play | No |
| DMP for UHD content via USB | Yes |
| DMP File allocation table (FAT / FAT32 / exFAT / NTFS) | Yes / Yes / No / Yes |
| PVR File allocation table (FAT / FAT32 / exFAT / NTFS) | Yes / Yes / No / Yes |
| Hotel lock |
| Protected Hotel lock submenu (Password / fixed code) | No / Yes |
| Clone function for programs, sound and image settings. | Yes |
| Sub-menu lock, including tuning lock | Yes |
| Keyboard lock | Yes |
| Maximum volume lock | Yes |
| Power on volume | Yes |
| Power on, apply default sound/image settings | No |
| Power on source selection | Yes |
| Power on RF channel selection | Yes |
| Power on mode (On / Standby / Last) | Yes / Yes / Yes |
| Inputs access (Enable / Disable) | Yes |
| Hardware |
| Processor / Cores | MT9602EAATBA / 4 |
| Dual Tuner | No |
| Colour (Front bezel, rear, stand) | Black / Black / Black |
| Speakers mounted in enclosure | Yes |
| Mains power switch | No |
| Swivel base | No |
| Compact packaging | Yes |
| Supply range [Voltage / Frequency ] | 100 ~ 240V, 50Hz/60Hz |
| Standby consumption | < 0.5W |
| Maximum time delay Power On to sound an image | 30sec |
| Installation |
| Stand area (Width / Depth) | 1447x375mm |
| Wall mount dimensions (Horiz x Vert) | 400x300mm |
| Wall mount, screw thread | M6/10mm |
| VESA compliance | Yes |
| Detachable power cord | Yes |
| Power cord length | 155cm |
| Accessories |
| Remote controller (Technology / Part number ) | IR /EN2J3630H |
| Battery (size / quantity) | AAA / 2 |
| User manual (Available online) / Quick setup guide (Print) | 1 / 1 |
| Warranty [In User manual, In separate sheet] | In separate sheet |
| Skype camera (Qty / Part number) | - |
| 3D glasses type [Passive, Shutter] / Link [RF, IR, BT] | - |
| 3D glasses (Qty / Part number) | - |
| Dimensions |
| Dimensions with stand (W x H x D) | 1577x953x375 mm |
| Dimensions without stand (W x H x D) | 1577x883x84 mm |
| Carton box dimensions (W x H x D) | 1765x1075x211mm |
| Net weight (with stand / without stand) | 21.5 /21 kg |
| Gross weight | 30kg |
| Container load (20ft / 40ft / 40ft HC) | 70/144/144 |
