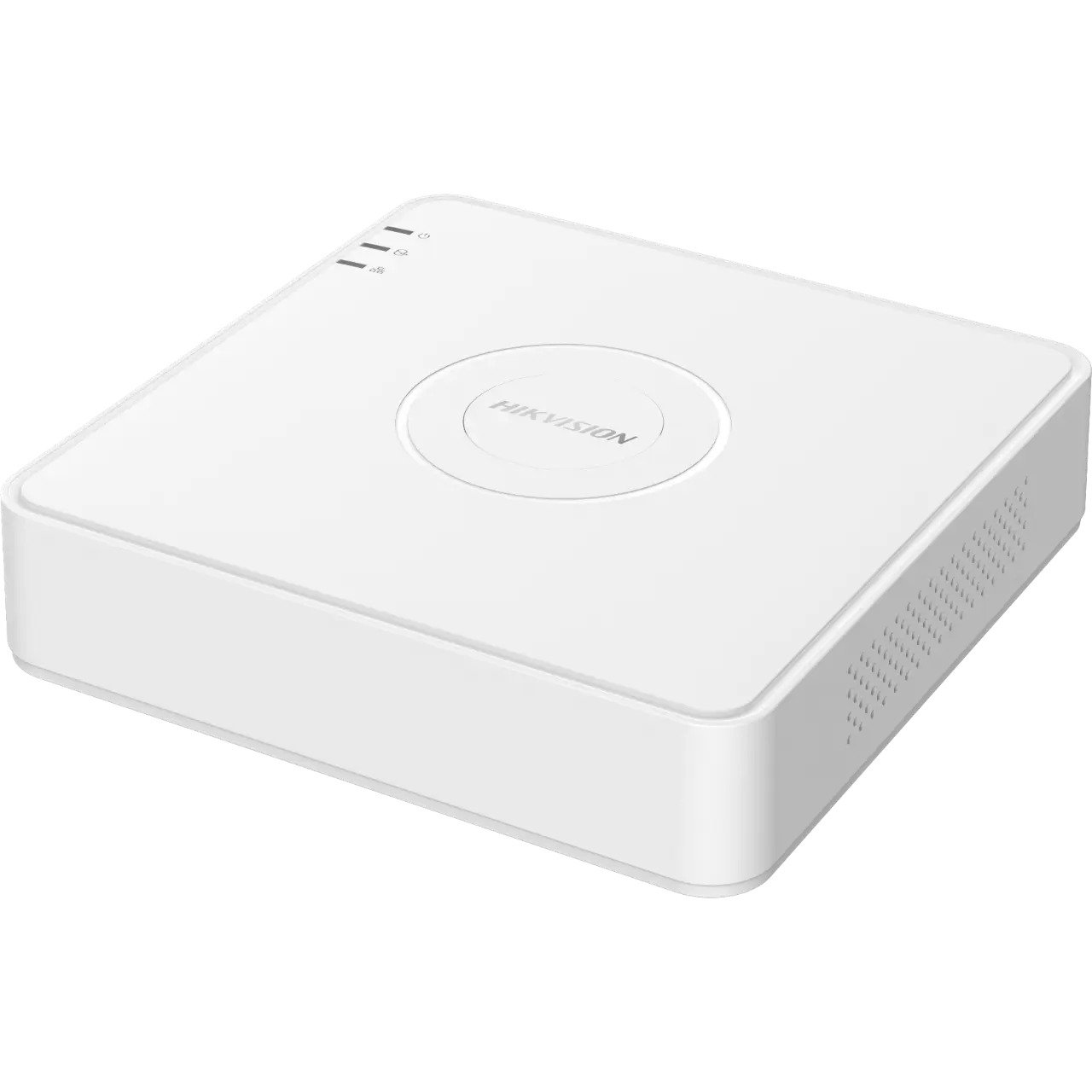

DS-7108HGHI-M1 Hikvision DS-7108HGHI-M1 8-ch 720p Mini 1U H.265 DVR
Images are for illustrative purposes and actual product may differ.
DS-7108HGHI-M1 Video recorders - security - NVRHikvision
DS-7108HGHI-M1 information and overview
Hikvision 7100 Series 8ch 720p Turbo High Definition stand alone H.265 DVR, H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 Video Compression, 2-ch IP Video Input, Up to 5 MP Resolution, 8-ch Analog Video Input, BNC Interface, 1-ch HDMI Output, 1-ch VGA Output, HDMI / VGA simultaneous Output, 1-ch RCA audio Input, 8-ch via Coaxial Cable audio Input, 1-ch RCA audio Output, 8-ch synchronous playback, 1x RJ45 10/100 Mbps Self-Adaptive Ethernet Interface, 1 SATA Interface up to 4 TB, 2x USB 2.0
Not for sale. This is a discontinued product.
Kindly search for an alternative on our site
Subject to correction, the product was first added on 2024-11-11 and the last date we have for this product is 2026-09-08, where the last unit was sold for R 790, which may have been a final clearance price.
Specifications & more information about DS-7108HGHI-M1, Video recorders - security - NVR manufactured by Hikvision
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Features: - Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 10-ch IP camera input (up to 5 MP)
- Encoding ability up to 1080p lite @ 15 fps
- Max. 1200 m for 720p HDTVI signal
Specifications: | ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | Specifications | | Product Code | DS-7108HGHI-M1 | | Motion Detection 2.0 | | Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; | | Quick search by object or event type is supported; | | Video and Audio | | IP Video Input | 2-ch (up to 10-ch) | | Up to 5 MP resolution | | Support H.265+/H.265/H.264+/H.264 IP cameras | | Analog Video Input | 8-ch | | BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | | HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 | | AHD Input | 1080p25, 1080p30, 720p25, 720p30 | | HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 | | CVBS Input | Support | | HDMI Output | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz | | VGA Output | 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz | | Video Output Mode | HDMI/VGA simultaneous output | | Audio Input | 1-ch RCA (2.0 Vp-p, 1 KΩ) | | 8-ch via coaxial cable | | Audio Output | 1-ch, RCA (Linear, 1 KΩ) | | Two-Way Audio | Reuse the first audio input | | Synchronous playback | 8-ch | | Recording | | Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | | Encoding Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF | | For 720p stream access: 720p/WD1/4CIF/VGA/CIF | | For SD stream access: WD1/4CIF/VGA/CIF | | Frame Rate | Main stream: | | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps | | For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps | | For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) | | Sub-stream: | | For 1080p and 720p stream access CIF/QVGA@15 fps | | For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N) | | Video Bitrate | 32 Kbps to 4 Mbps | | Stream Type | Video, Video & Audio | | Audio Compression | G.711u | | Audio Bitrate | 64 Kbps | | Network | | Total Bandwidth | 72 Mbps | | Remote Connection | 64 | | Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS | | Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | | Auxiliary Interface | | SATA | 1 SATA interface | | Capacity | Up to 4 TB capacity for each disk | | USB Interface | Rear panel: 2 x USB 2.0 | | Alarm In/Out | N/A | | General | | Power Supply | 12 VDC, 1.5 A | | Consumption | ≤ 17 W (without HDD) | | Working Temperature | -10 °C to 55 °C (14 °F to +31 °F) | | Working Humidity | 10% to 90% | | Dimension (W x D x H) | 200 x 200 x 48 mm (7.9 x 7.9 x 1.9 inch) | | Weight | ≤ 1 kg (without HDD, 2.2 lb.) |
