CUDY-MC220 Cudy Gigabit Ethernet Media coverter

CUDY-MC220

R 276.00

inc. VAT

In Stock

Add To Cart

Rate

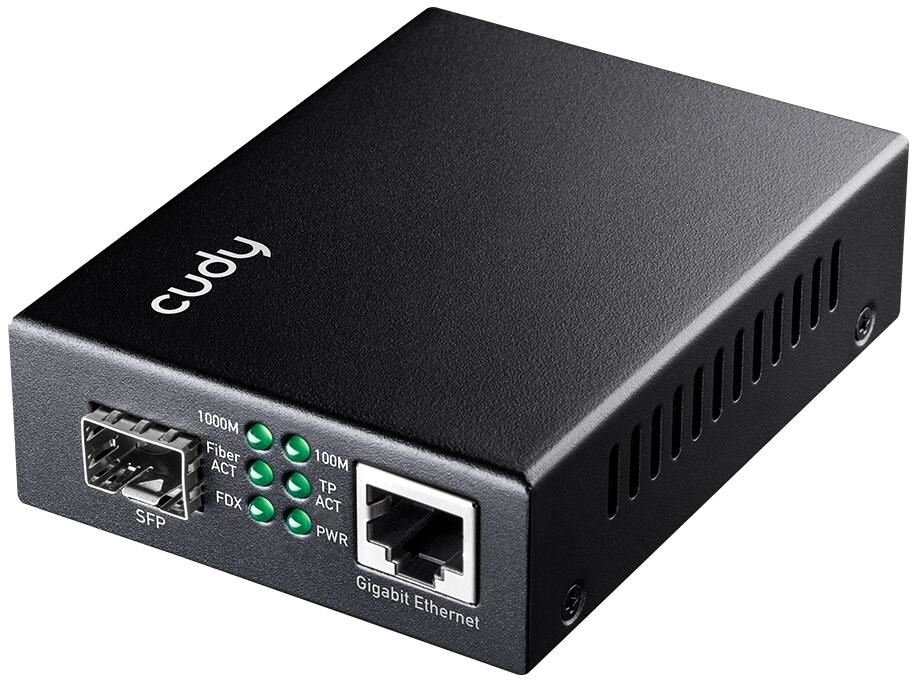

Cudy Gigabit Ethernet Media coverter

Images are for illustrative purposes and actual product may differ.

CUDY-MC220

Optical Fibre Networking

Cudy

CUDY-MC220 information and overview

Cudy Gigabit Ethernet Media coverter, MC220, 1x 1.25G SFP slots, SFP Hot swapping, 1x Gigabit RJ45 Ports

Great value! This product is available for only R 276.

Specifications & more information about CUDY-MC220, Optical Fibre Networking manufactured by Cudy

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

Gigabit Ethernet Media Converter, MC220 2.0
10/100/1000 Mbps RJ45 to SFP Slot media converter for long distance transmission demand.

Gigabit RJ45 Port to SFP Slot
Hot-Swappable on RJ45 and SFP
LFP and FEF for Troubleshooting
Speed, Link, FDX, PWR LED

Features:

Instant Network Monitoring with Built-in LED Indicators
With built-in LED indicators, you can easily check the working status of the device. The network status is instantly visible, making it simple to monitor and troubleshoot at a glance.

Reliable, High-Speed Transmission with No Speed Loss
The all-in-one module delivers exceptional optical and electrical performance, ensuring long-term data transmission stability.

Plug and Play, No Setup Required
Simply plug in the port, and it's ready to go-instant connection with no configuration needed. Easy to use, with fast and responsive performance.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CUDY-MC220
Model Version	MC220 2.0
Interfaces
1.25G SFP Slots	1
SFP Hot Swapping	True
Gigabit RJ45 Ports	1
LED	PWR: Power on/off
	1000M/100M: RJ45 link speed
	TP ACT: RJ45 status
	Fiber ACT: Fiber slot status
	FDX: full-duplex status
Power Input	DC Jack
Performance
Copper Speed and Distance	Cat. 3 or higher cable: 100 meters at 10 Mbps
	Cat. 5 or higher cable: 100 meters at 100 Mbps
	Cat. 5e or higher cable: 100 meters at Gigabit
Optical Spec and Distance	Depends on the Installed Optical Module
Jumbo Frame	16 KB
Power
Power Methods	DC
DC	5V⎓0.55A
Power Adapter	Input: 100-240V~, 50/60Hz
Power Adapter	Output: 5V⎓0.55A
Max Power Consumption	2.3W (45°C / 113°F Ambient Temp.)
Max Power Consumption	1W (20°C / 68°F Ambient Temp.)
Idle Power Consumption	0.5W
Network
802.3 Protocols	802.3i 10BASE-T
	802.3u 100BASE-T
	802.3ab 1000BASE-T
	802.3x Flow Control
	802.3az Power Saving
Troubleshooting	Far End Fault (FEF), Link Fault Pass Through (LFP)
Reliability
Environment	Operating Temperature: 0~50 °C (32~122 °F)
	Storage Temperature: -40~70 °C (-40~158 °F)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~95% non-condensing
Mechanical
Dimension	70x94x26 mm
Dimension	2.76x3.7x1.02 inches
Product Weight	142.0 g (5.01 oz.)
Casing Material	Metal
Installation	Desktop
Installation	Chassis
Package Content
Package Content	MC220
	Installation Guide
	Power Adapter
Ordering Information
Retail Package Dimension	185x129x56 mm
Retail Package Dimension	7.28x5.08x2.2 inches
Retail Package Weight	EU: 327.5 g (11.55 oz.)
Units per Carton	40
Carton Net Weight	EU: 13.1 kg (28.88 lbs)
Carton Gross Weight	EU: 14.0 kg (30.86 lbs)
Carton Dimension	537x303x391 cm
Carton Dimension	211.42x119.29x153.94 inches
