Upgrade your PC cooling system with the Corsair RS120 120mm PWM Fan, engineered for South African buyers who demand high performance and silence. This single-pack black fan features AirGuide technology to maximize airflow efficiency while the Magnetic Dome bearings ensure near-silent operation and extended longevity.
Designed for direct-to-motherboard connection via daisy-chaining, this fan simplifies your build by reducing cable clutter without sacrificing power. With adjustable speeds up to 2100 RPM and a Zero RPM mode for noise-free idle times, it is perfect for both high-performance gaming rigs and quiet home workstations. Shop now to experience superior cooling with minimal acoustic footprint.
Performance tier: High
Uses: PC case ventilation, radiator cooling, system airflow optimization, silent computing, thermal management Overview

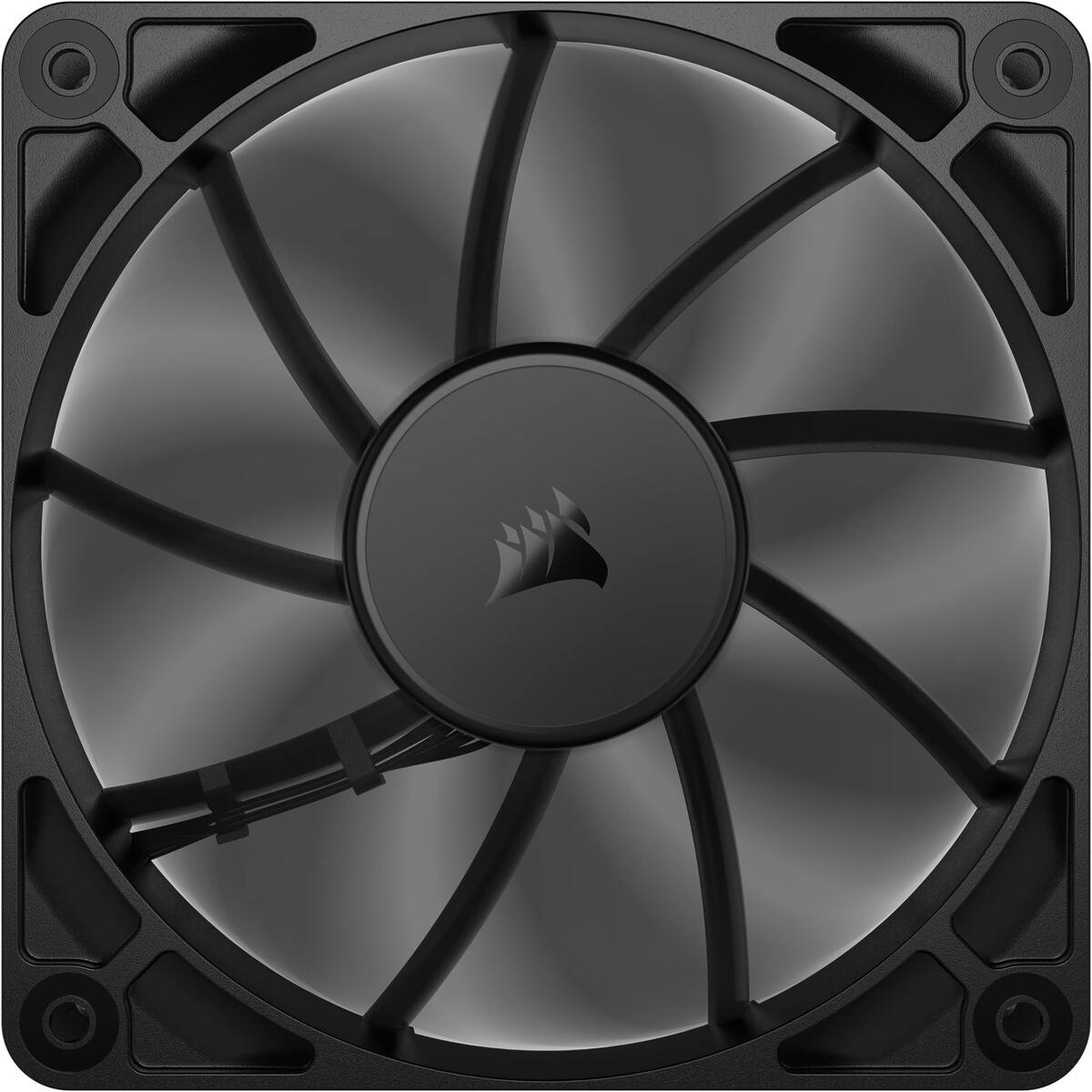

The Corsair RS120 120mm PWM fan, identified by part number CO-9050188-WW, is engineered to streamline your PC build with superior cooling efficiency and near-silent operation. This single-pack unit integrates daisy-chain connectivity, allowing you to connect multiple fans directly to the motherboard without the need for extra hubs or tangled cables. By utilizing AirGuide technology and advanced bearing systems, this fan delivers exceptional airflow and static pressure, making it an ideal choice for both case ventilation and high-performance radiator cooling.
Description
The Corsair RS120 PWM Fan combines precision engineering with user-friendly design to deliver top-tier thermal management. Key benefits include a direct-to-motherboard daisy-chain interface that simplifies cable management, optimized airfoil blades for maximum airflow efficiency, and a magnetic dome bearing system that minimizes friction, noise, and wear. The fan supports Zero RPM mode, ensuring it stops completely during low-load scenarios to eliminate acoustic distraction while maintaining peak performance when cooling demands are high.
Features
Simplified Cable Management
The RS Series fans feature a unique daisy-chain design that allows you to skip traditional fan hubs entirely. You can connect multiple units in sequence and control the entire chain through a single 4-pin PWM connector on your motherboard, significantly reducing clutter inside your chassis.
Airflow and Static Pressure
Designed to excel at both general airflow and high-pressure scenarios, this fan utilizes specific engineering techniques to move air effectively. The optimized angle of attack, combined with an airfoil blade shape and precise edge curvature, ensures maximum efficiency. Additionally, the housing supports the largest possible blade radius for its size limit, while stator vanes focus the exhaust cone to improve coverage over radiator fins.
Quiet Operation and Durability
At the heart of this fan lies a Magnetic Dome bearing that minimizes mechanical friction and noise. This design choice not only reduces the acoustic footprint but also extends the lifespan of the unit by reducing wear on moving parts. The PWM control allows for precise speed adjustments between 420 and 2100 RPM, including a Zero RPM mode where fans stop spinning entirely when system loads are low.
This single-pack cooling solution has undergone extensive testing to guarantee reliable performance across its full range of speeds. It is perfect for users seeking a balance between high thermal output and quiet operation without the need for RGB lighting or proprietary software integration.
Technical Specifications
- Fan Size: 120mm x 25mm
- Airflow Range: 13.3 - 72.8 CFM
- RPM Speed: 420 - 2100 RPM ±10%
- Sound Level: 10 - 36 dBA
- Fan Static Pressure: 0.2 - 4.15 mm-H2O
- Power Draw: 0.4A
- PWM Control: Yes
- Flow Type: Static Pressure
- LED Color: None
- Weight: 0.239 kg
What's in the box
- Corsair RS120 PWM Fan (Single Unit)
- Daisy-chain cable for connecting additional fans
- Screws and fan clips for installation
Specifications
| ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. |
Specifications |
| Product Code | CO-9050188-WW |
| Weight | 0.239 |
| Fan Size | 120mm x 25mm |
| LED Color | NONE |
| Package Quantity | 1 |
| Power Draw | 0.4A |
| PWM Control | Yes |
| Sound Level | 10 - 36 dBA |
| Fan Static Pressure | 0.2 - 4.15 mm-H2O |
| LINK Compatibility | None |
| Fan Airflow | 13.3 - 72.8 CFM |
| Flow Type | STATIC PRESSURE |
| Speed | 420 - 2100 RPM ±10% |
FAQ
Does the Corsair RS120 fan include LED lighting?
No, this single pack of fans does not feature any LED lights.
How do I connect multiple fans without using a hub?
You can use the daisy-chain connection to link fans in sequence and control them all with a single 4-pin PWM connector on your motherboard.
Can these fans stop spinning completely when the PC is idle?
Yes, the RS120 supports Zero RPM mode via PWM control, allowing the fans to stop spinning entirely at low loads to eliminate noise.
What are the physical dimensions and airflow capacity of this fan?
The fan measures 120mm x 25mm with an airflow range of 13.3 to 72.8 CFM at speeds between 420 and 2100 RPM.
Is this fan suitable for use with radiators or restricted spaces?
Absolutely, the RS Series is engineered for static pressure with AirGuide technology that focuses airflow to improve heat dissipation on radiator fins.
