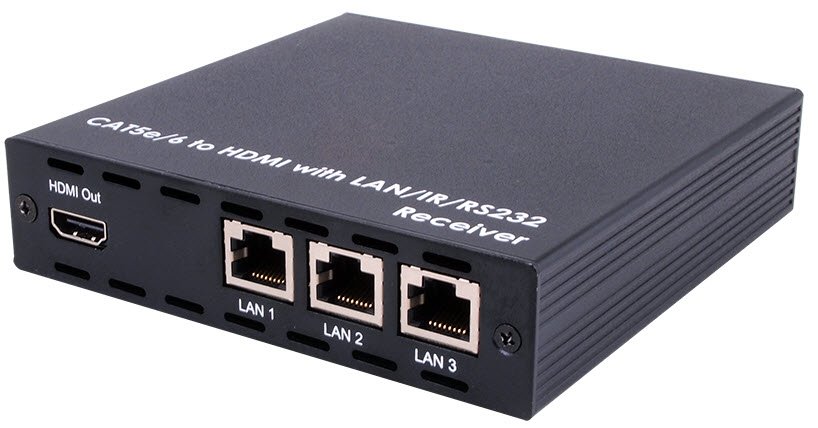

CNV-CH-1109RXC Cypress HDMI over CAT5e/6/7 Receiver with 24V PoC and 3 LAN Serving

CNV-CH-1109RXC

Click to view larger image

R 3,195.00

inc. VAT

In Stock

Add To Cart

Rate

Cypress HDMI over CAT5e/6/7 Receiver with 24V PoC and 3 LAN Serving

Images are for illustrative purposes and actual product may differ.

CNV-CH-1109RXC

HDMI extender / broadcaster

Cypress

CNV-CH-1109RXC information and overview

Cypress HDMI over CAT5e/6/7 Receiver with 24V PoC and 3 LAN Serving

Specifications & more information about CNV-CH-1109RXC, HDMI extender / broadcaster manufactured by Cypress

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

The CH-1109TXC & RXC set features 5-Play™ HDBaseT™ technology. This will allow the user to distribute uncompressed HDMI™ (audio/video), 2-Way IR, 2-Way RS-232, PoE and 3 individual Ethernet connections over a single CAT5e/6/7 up to a distance of 100m.

Features:

HDMI 1.4 compliant with 3D formats and 4k×2k resolution support
Supports CEC bypass function
Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Color) over a single CAT5e/6 type cable for up to 100m (300ft.)
Audio support up to 7.1CH Dolby TrueHD and DTS-HD Master Audio
Connect and share up to 6 Ethernet connections at speeds up to 100Mbps
Various controls over HDMI: CEC, RS232 and IR
5Play™ convergence: HD video, audio & Control ports (IR and RS232)/LAN/PoC
Installation friendly
Single power supply powers both units, receiver unit is powered through the transmitter

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CNV-CH-1109RXC
Inputs	1x RJ45 [1x HDMI & Propriety Data]
Inputs	1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
Outputs	1x HDMI [1x Uncompressed AV and Data]
	1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]
	3x RJ45 [3x LAN Serving]
	1x 9-pin D-sub [1x RS-232 Data]
PSU	24V/1.25A
Dimensions	125mm [W] x 127mm [D] x 30mm [H]
Net Weight	382g
