CL-P064-AL12SW-A

Overview:

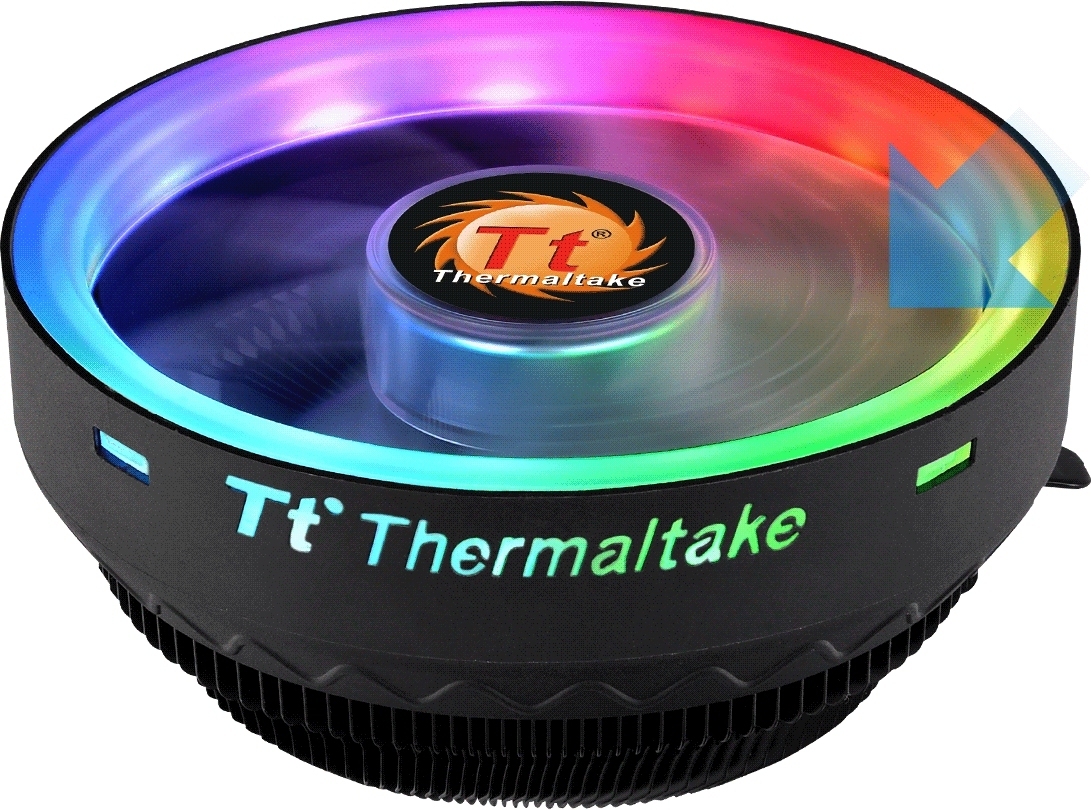

UX100 ARGB Lighting CPU Cooler
Thermaltake UX100 ARGB Lighting CPU Cooler features 9-high air flow blade, hydraulic bearing, and 16.8 million colors of 15 ARGB LEDs that is ready to sync 5V RGB enabled motherboards from ASUS, ASRock, GIGABYTE and MSI. Switching the customized lighting effect easily and get the ultimate gaming experience.

Features:

16.8 M TRUE RGB COLOR
Featuring 15 high lumen addressable LEDs with 16.8 million colors, UX100 gives you the vivid RGB lighting experience. Enjoy the reliable cooling performance and magnificent visual effect with UX100.

SYNC WITH MOTHERBOARD RGB SOFTWARE
Designed to synchronize with ASUS Aura Sync, ASRock RGB LED, GIGABYTE RGB Fusion and MSI Mystic Light Sync. UX100 supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly.

*Caution: the motherboard signal connector only supports 5V header.

HIGH VOLUME AIRFLOW DESIGN
The fan blades are built to generate a large volume of air passing through the aluminum heatsink at any angle for the steady air flow and cooling quality.

RELIABLE HYDRAULIC BEARING
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance that lowers operation noise and enhance thermal efficiency. The seal cap prevents leakage of the lubricant and extends the lifespan of the unit.

EASY TO INSTALL
The mounting kit offers hassle-free installation. UX100 includes all-in-one back-plate is compatible with all the latest Intel and AMD CPU socket.

Intel: LGA 1156/1155/1151/1150/775
AMD: AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CL-P064-AL12SW-A
P/N	CL-P064-AL12SW-A
Compatibility	Intel LGA 1156 / 1155 / 1151 / 1150 / 775
	AMD AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
Dimension	122.3 x 122.3 x 66.1 mm(L x W x H)
Heatsink Material	Aluminum Fins
Fan Dimension	120 x 120 x 25 mm(L x W x H)
Fan quantity	1pcs
Fan Speed	1800 RPM
Rated Voltage	12V
Start Voltage	6.0 V
Rated Current	0.35 A
Power Input	4.2 W
Air Flow	38.82 CFM
Air Pressure	1.48 mm-H2O
Acoustical Noise	26.92 dBA
Life time/Fan Life time	30,000 hours
pin connect	5V RGB header - 2Pin
	2510 - 3Pin
Cooling Power	65 W
